Heredot50

Facede Lighting

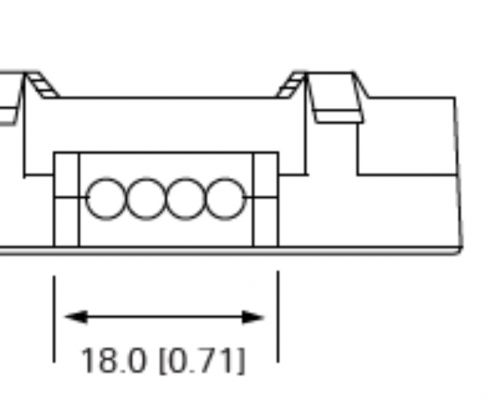

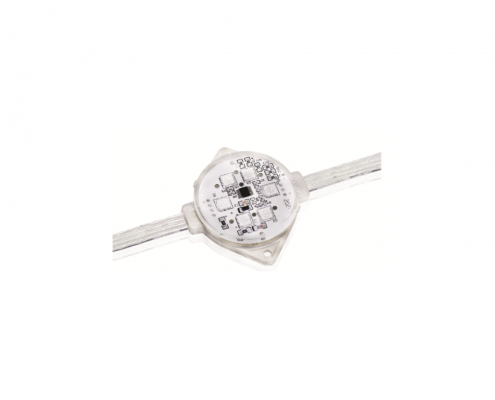

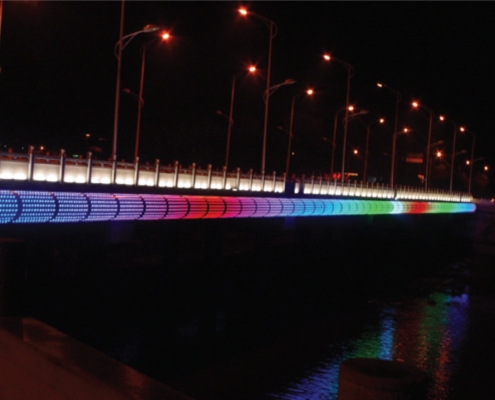

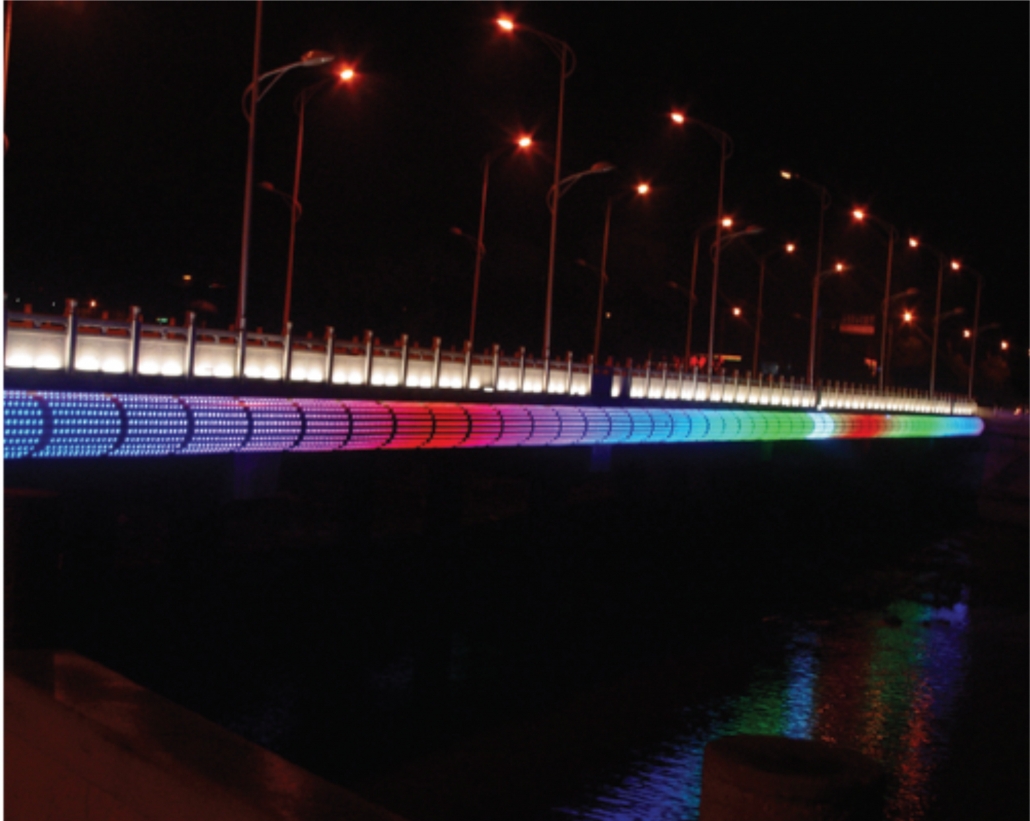

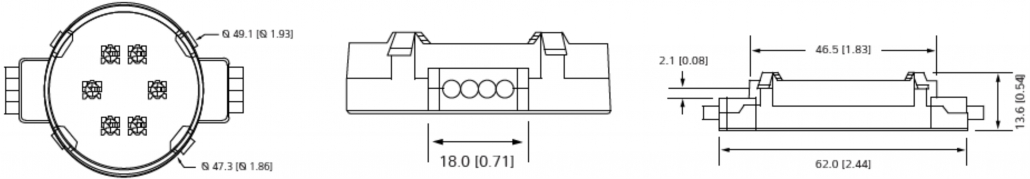

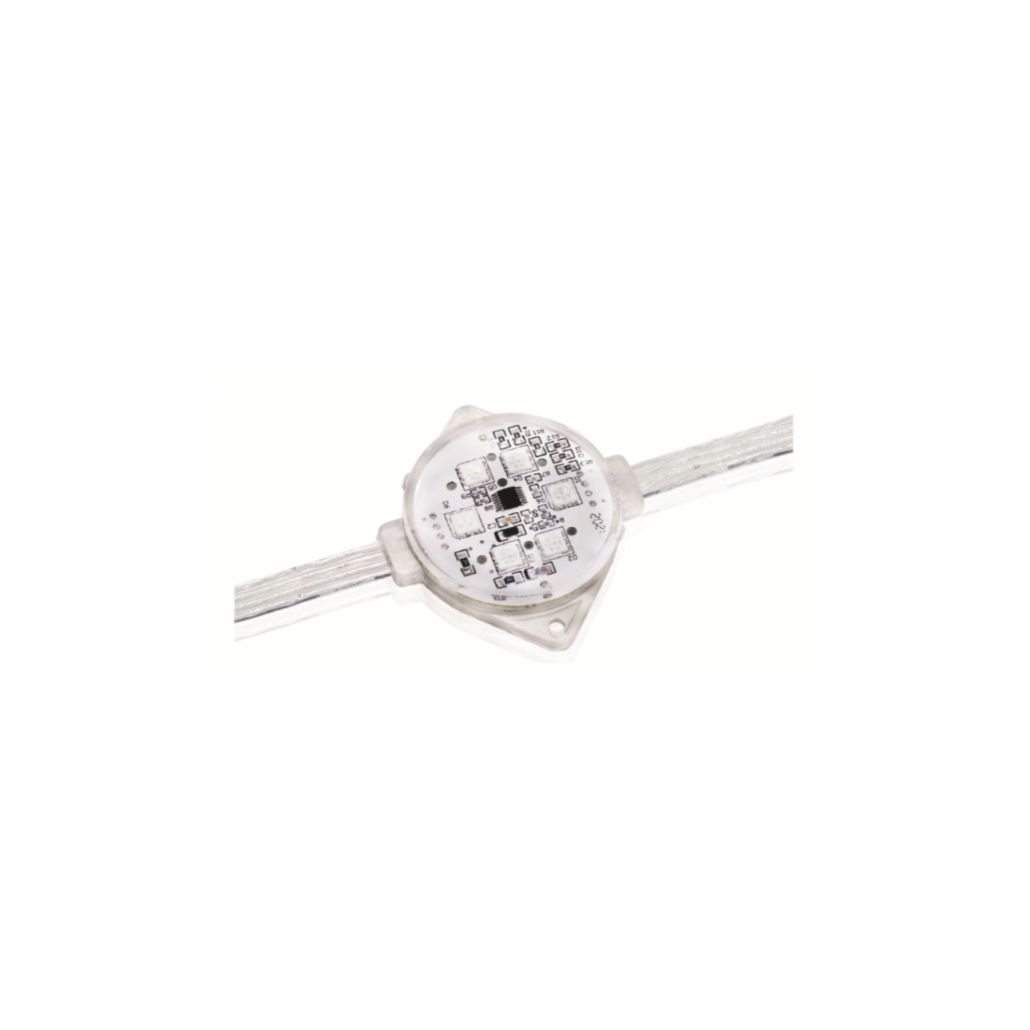

HEREDOT 50


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Number Of DOTs (per m)
Light Angle
Color Temperature
HEREDOT 50
1.5 W
24V(for single color)
6

120°-180°

2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Technical Features


  • Control Mode: Serial Control, Digital RGB, DMX Control
  • Working Temperature: -20°C/55°C
  • Electrical Grade: III Class
  • Anti-UV Design
  • Snap in mounting type
  • IP68

Features


]]> https://www.zlux.com/en/zlux-lighting/heredot-50/feed/ 0 Heredot 40 https://www.zlux.com/en/zlux-lighting/heredot-40/ https://www.zlux.com/en/zlux-lighting/heredot-40/#respond Tue, 02 Jun 2020 05:44:33 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1914

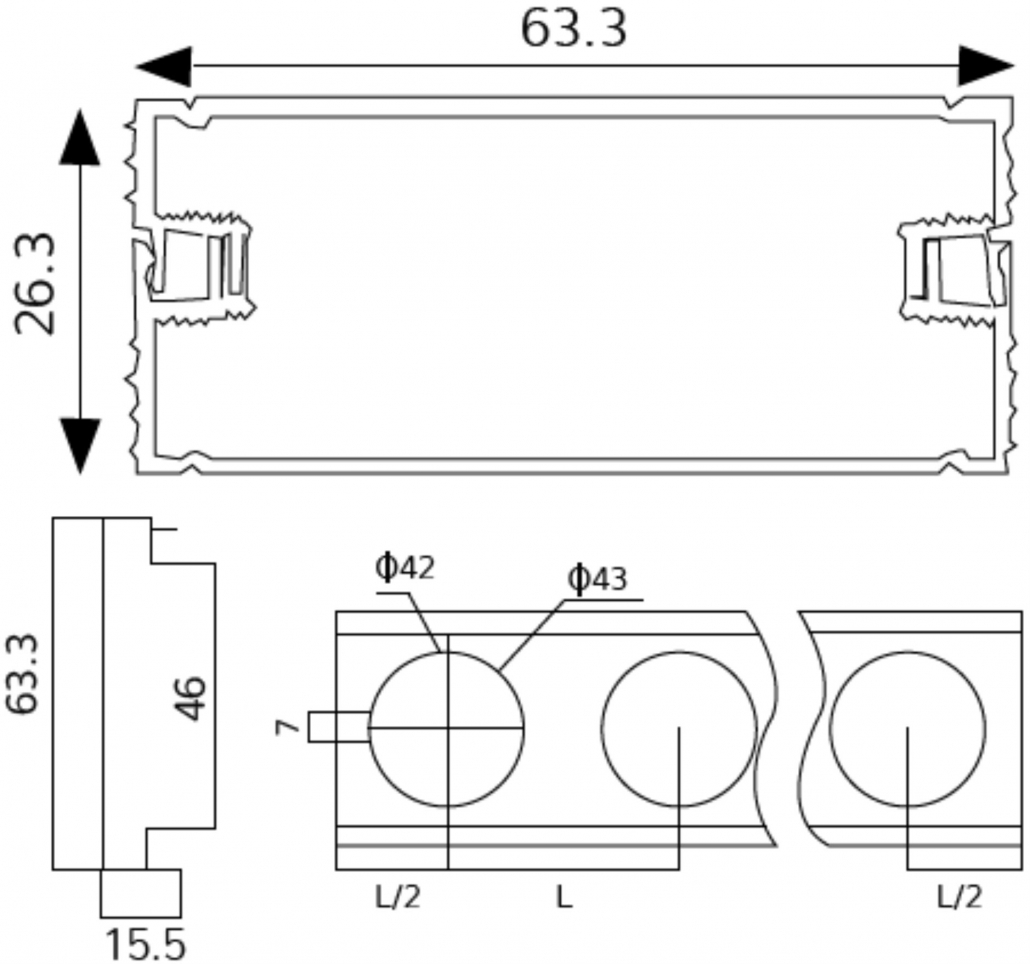

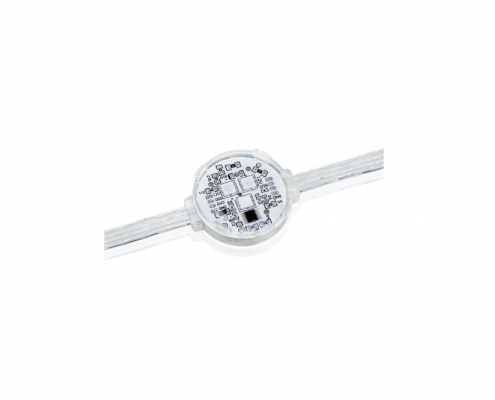

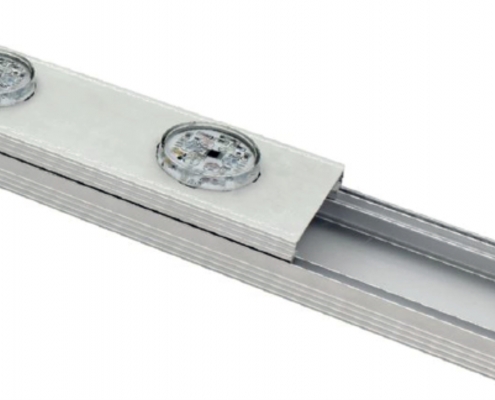

Heredot40

Facede Lighting

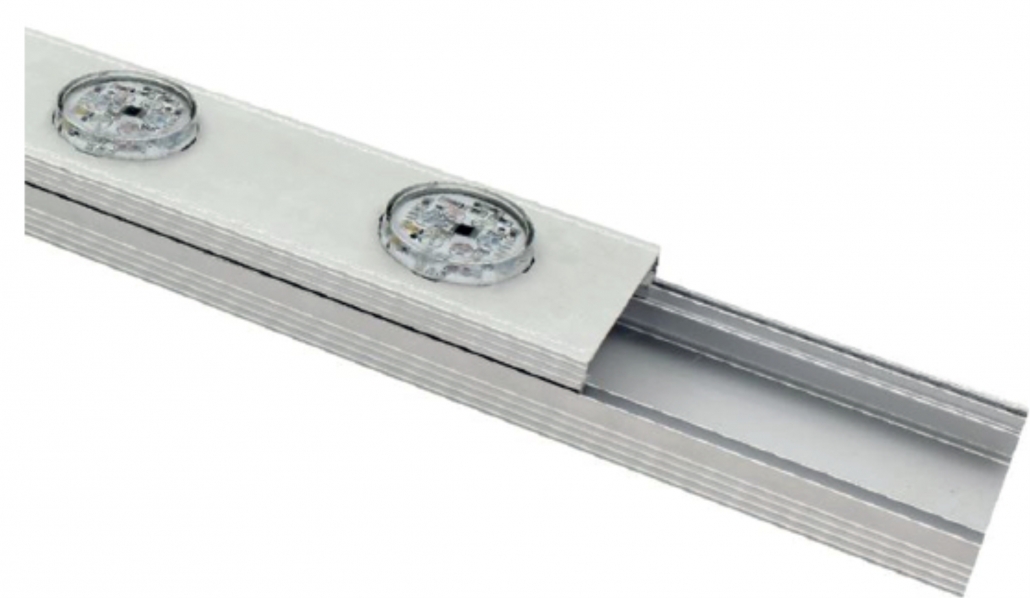

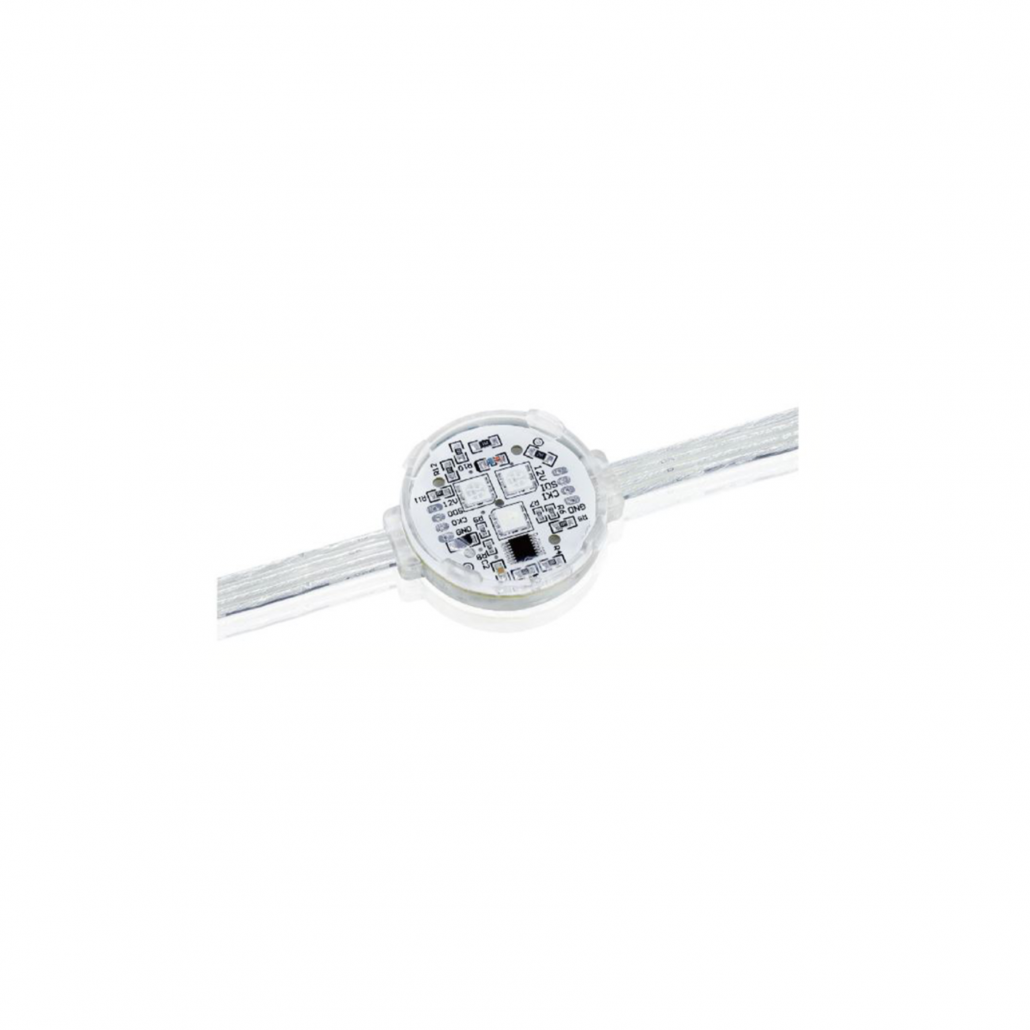

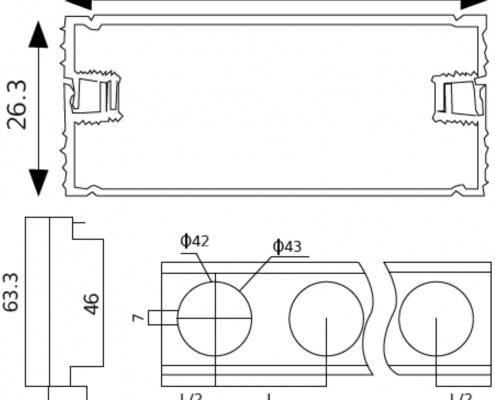

HEREDOT 40


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Number Of DOTs(per m)
Light Angle
Color Temperature
HEREDOT 40
0.72W
12V(for single color)
3
120°-180°

2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Technical Features


  • Control Mode: Serial Control, Digital RGB, DMX Control
  • Working Temperature: -20°C/55°C
  • Electrical Grade: III Class
  • Anti-UV Design
  • Snap in mounting type
  • IP68

Features


]]> https://www.zlux.com/en/zlux-lighting/heredot-40/feed/ 0 Heredot 30 https://www.zlux.com/en/zlux-lighting/heredot-30/ https://www.zlux.com/en/zlux-lighting/heredot-30/#respond Tue, 02 Jun 2020 05:37:00 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1905

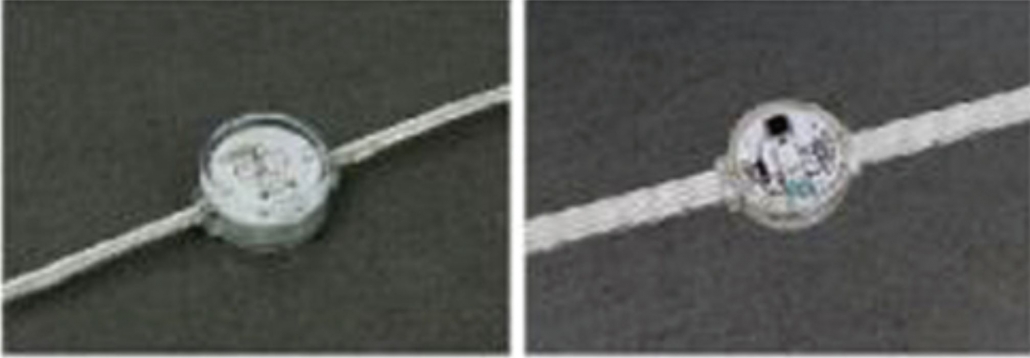

Heredot30

Facede Lighting

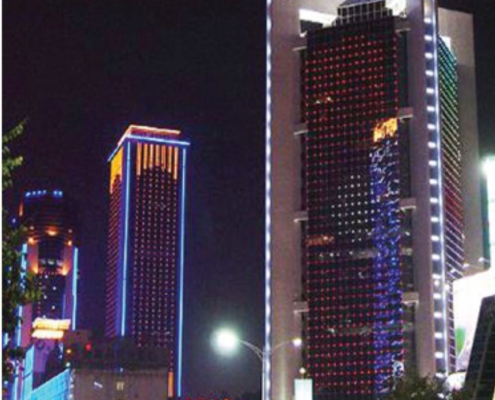

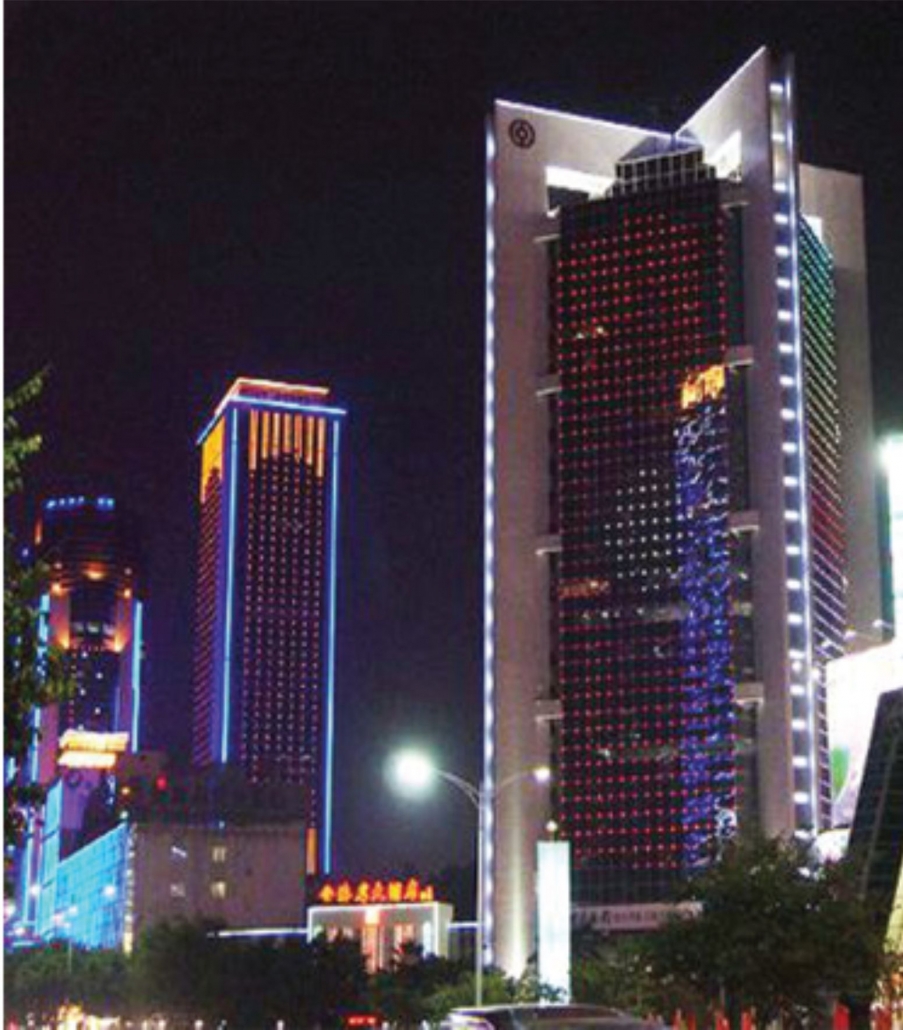

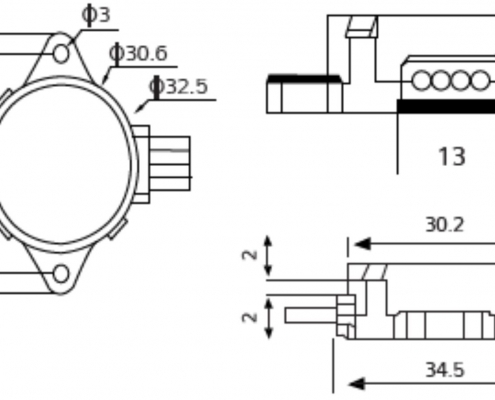

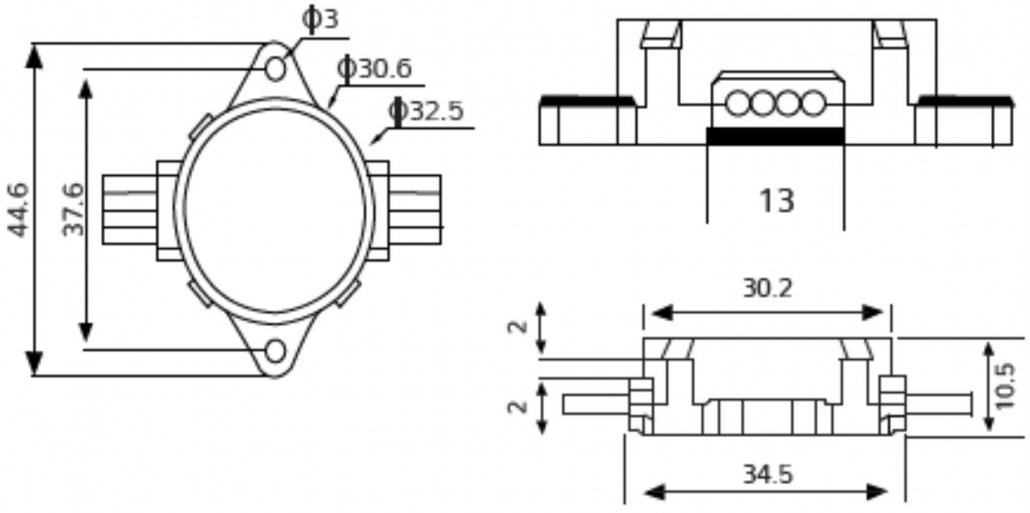

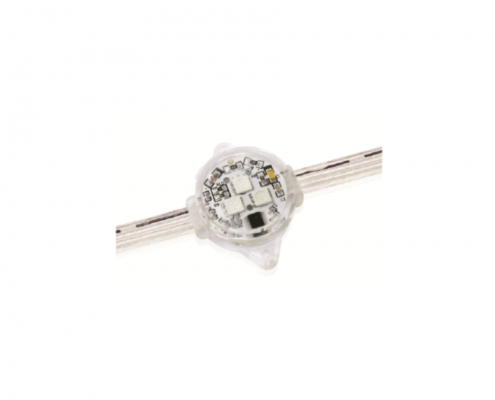

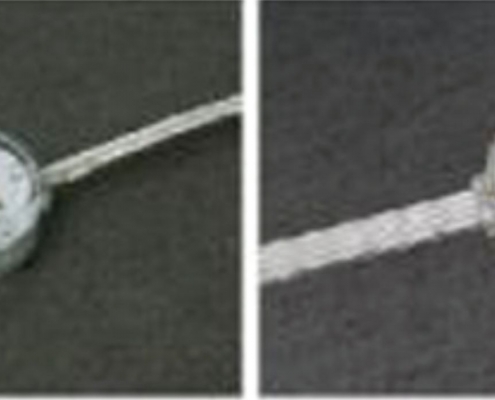

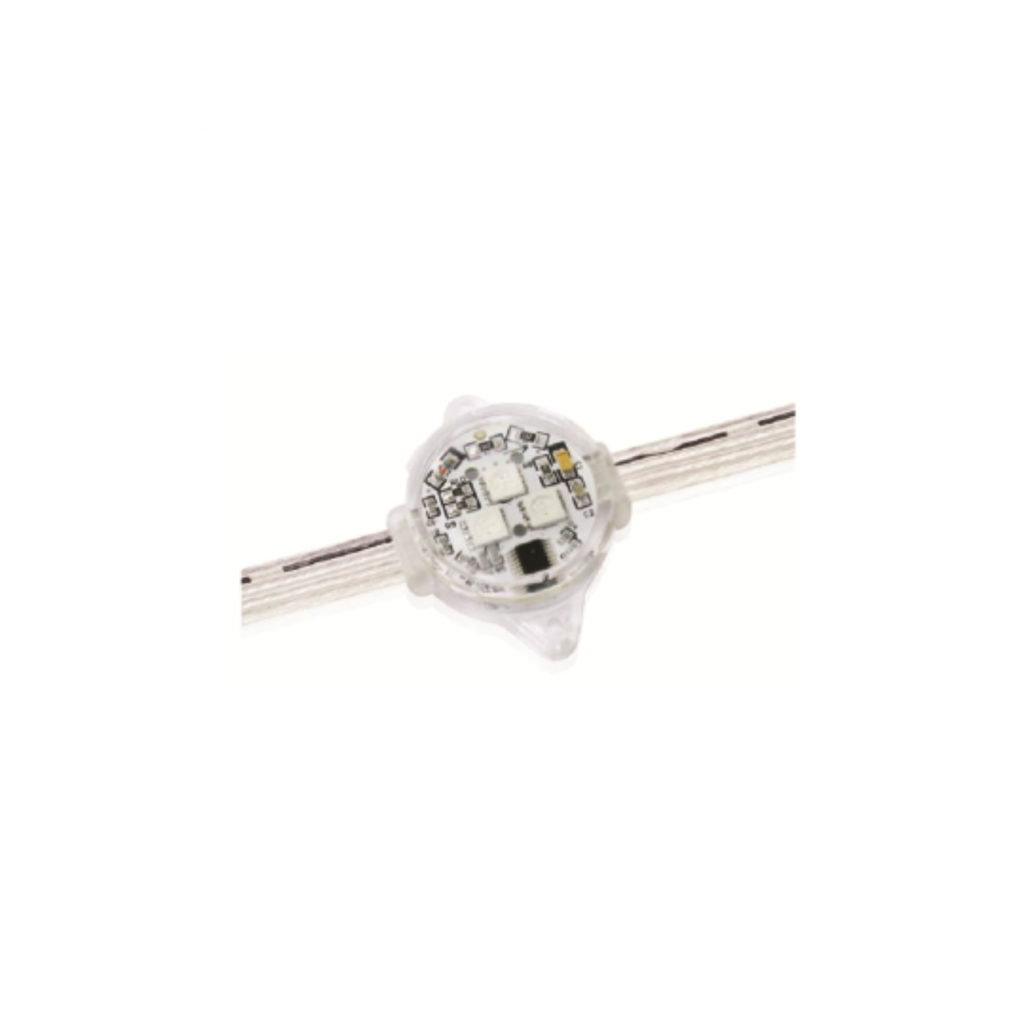

HEREDOT 30


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Number Of DOTs (per m)
Light Angle
Color Temperature
HEREDOT 30
0.72W
12V(for single color)
3

120°-180°

2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Technical Features


  • Control Mode: Serial Control, Digital RGB, DMX Control
  • Working Temperature: -20°C/55°C
  • Electrical Grade: III Class
  • Anti-UV Design
  • IP68

Features


]]> https://www.zlux.com/en/zlux-lighting/heredot-30/feed/ 0 Heredot 20 https://www.zlux.com/en/zlux-lighting/heredot-20/ https://www.zlux.com/en/zlux-lighting/heredot-20/#respond Tue, 02 Jun 2020 05:30:59 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1897
Heredo20

Facede Lighting

HEREDOT 20


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Number Of DOTs (per m)
Light Angle
Color Temperature
HEREDOT 20
0.12W
12V(for single color)
3

120°-180°

2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Technical Features


  • Control Mode: Serial Control, Digital RGB, DMX Control
  • Working Temperature: -20°C/55°C
  • Electrical Grade: III Class
  • Anti-UV Design
  • IP68

Features


]]> https://www.zlux.com/en/zlux-lighting/heredot-20/feed/ 0 Ztube https://www.zlux.com/en/zlux-lighting/ztube/ https://www.zlux.com/en/zlux-lighting/ztube/#respond Tue, 02 Jun 2020 05:21:08 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1890
Ztube

Facede Lighting

ZTUBE


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Lumen Output
(3000K)

Number Of LEDs
Temperature(°C)
Source
Color Temperature
Z60 E3
5 W/m
24 VDC
420 lm/m
60
-20/+55
LED
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB
Z120 E3
10 W/m
840 lm/m
120
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB
Z36 E5
12 W/m
1080 lm/m
36
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB
Z48 E5
16 W/m
1440 lm/m
48
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB
Z60 E5
20 W/m
1800 lm/m
60
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Specification


  • Tube: Solid PMMA UV Protected
  • Dims : Lx30x25 mm
  • Ambient Temperature: 20°C-+55°C
  • Reverse Polarity Protected
  • Over Current Protection
  • 1-10V DALI Dimmable, Data Clock Pulse 50 package/s
  • IP66

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/ztube/feed/ 0 Zeon Flex S https://www.zlux.com/en/zlux-lighting/zeon-flex-s/ https://www.zlux.com/en/zlux-lighting/zeon-flex-s/#respond Mon, 01 Jun 2020 05:41:04 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1881

Facede Lighting

ZEON FLEX S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Lumen Output
(6000K Cold White)

Number Of LEDs
(per m)
Color Temperature
ZEON F60 S
12 W/m
24 VDC
516 lm/m
60
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB

Technical Features


  • 1-10V Dimmable,DALI Dimmable DMX Pixel Control
  • Anti-UV Design
  • Cutting Length ZEON F60 S 100 mm
  • IP68

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zeon-flex-s/feed/ 0 Zeon Flex T https://www.zlux.com/en/zlux-lighting/zeon-flex-t/ https://www.zlux.com/en/zlux-lighting/zeon-flex-t/#respond Fri, 29 May 2020 15:51:00 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1857
Zeon Flex T

Facede Lighting

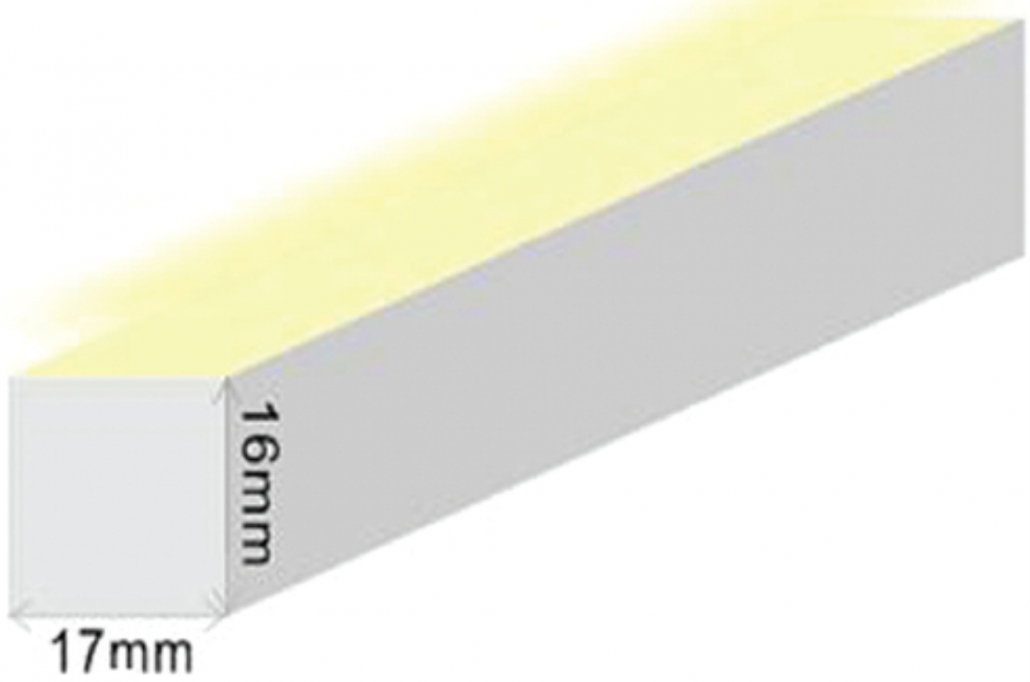

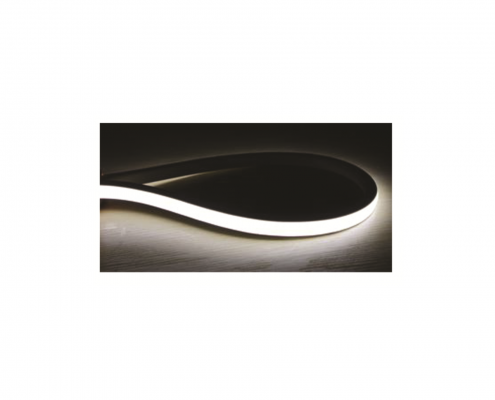

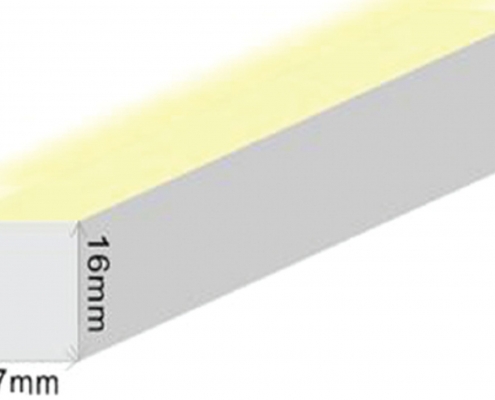

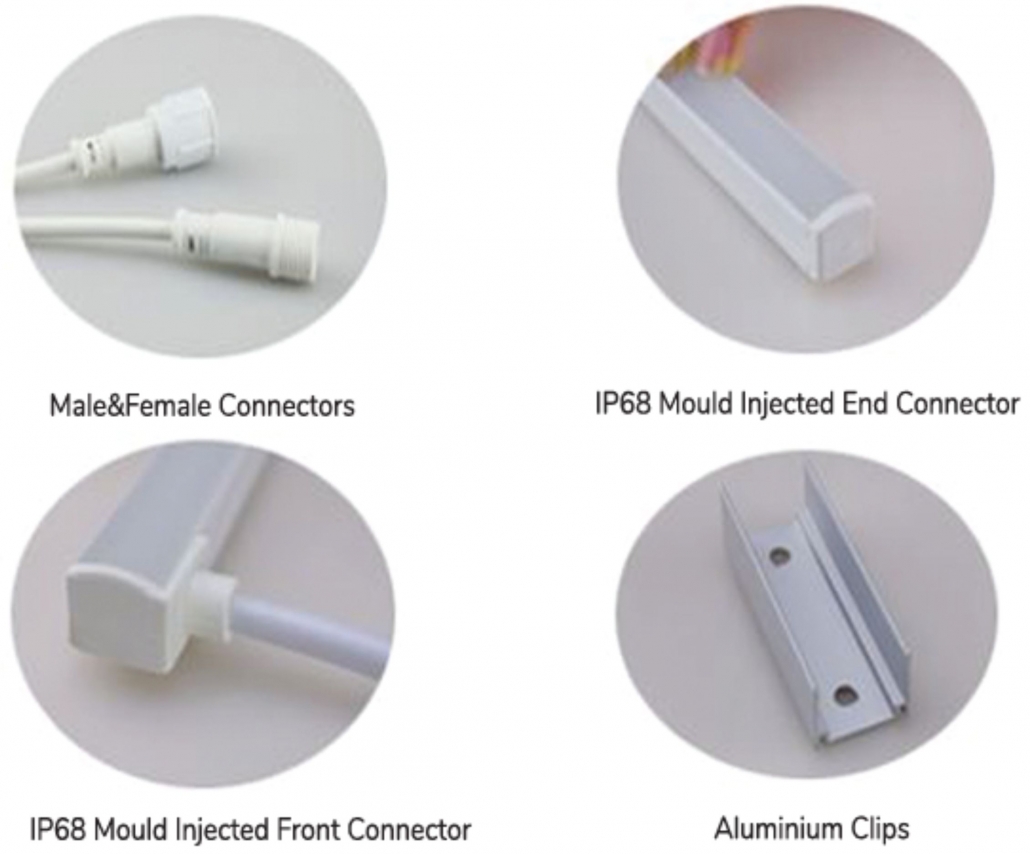

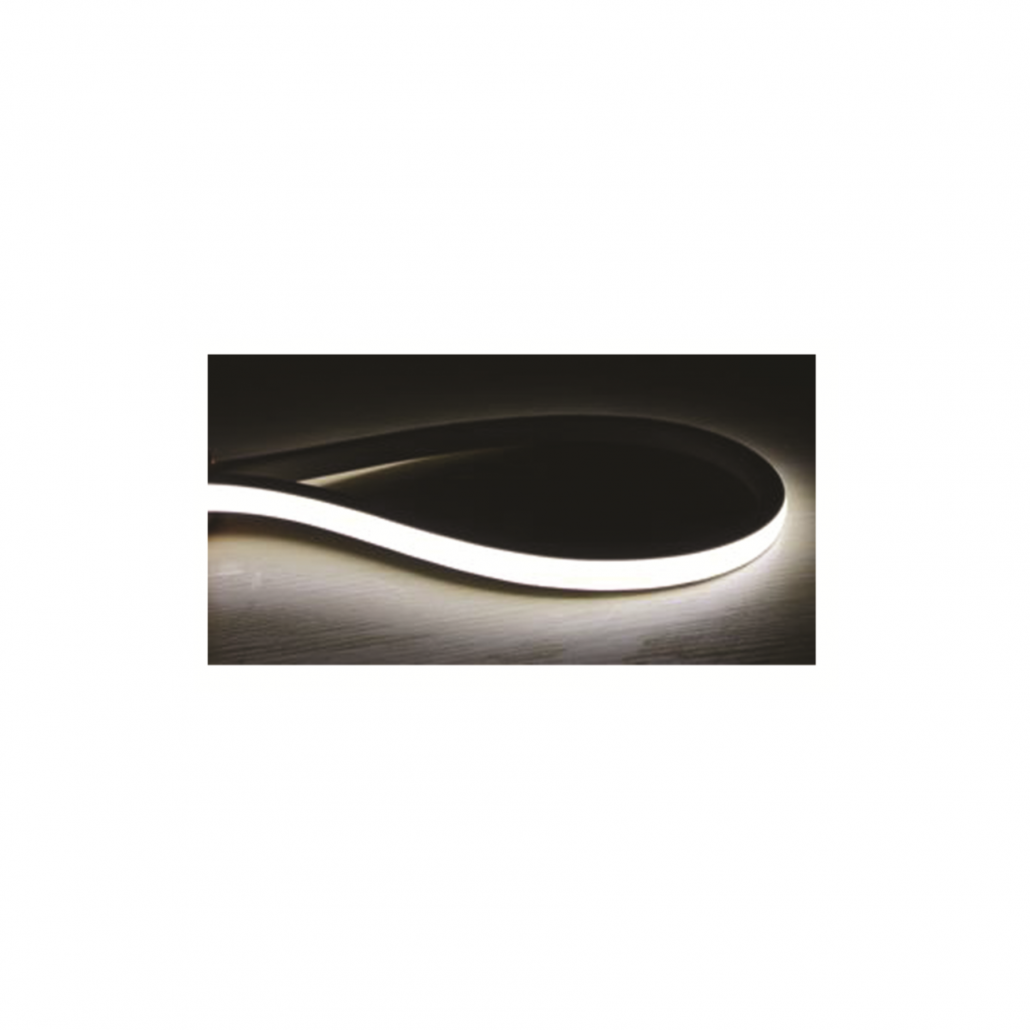

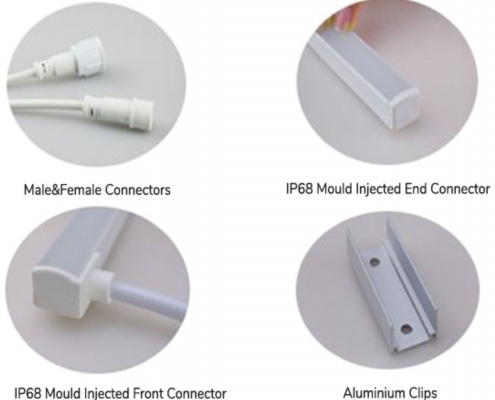

ZEON FLEX T


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Voltage
Lumen output
(6000K cold white)

Number Of LEDs
(per m)
Color Temperature
ZEON F120 T
7.2 W/m
24 VDC
310 lm/m
120
2700K/3000K/4000K/6500K
Red,Green,Blue,Amber,RGB
ZEON F144 T
8.8 W/m
380 lm/m
144

Technical Features


  • IP68
  • 1-10V Dimmable,DALI Dimmable DMX Pixel Control
  • Anti-UV Design
  • Cutting Length ZEON F120 T 100 mm ZEON F144 T 83mm

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zeon-flex-t/feed/ 0 Aero Up https://www.zlux.com/en/zlux-lighting/aero-up/ https://www.zlux.com/en/zlux-lighting/aero-up/#respond Fri, 29 May 2020 15:38:31 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1849

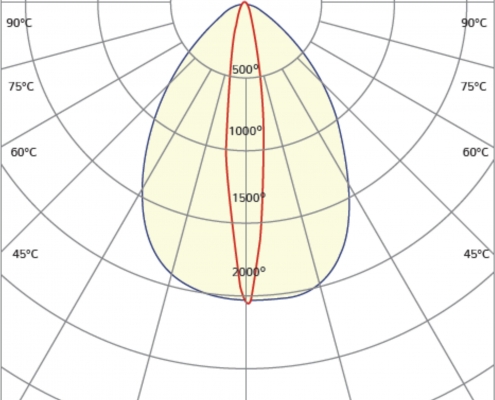

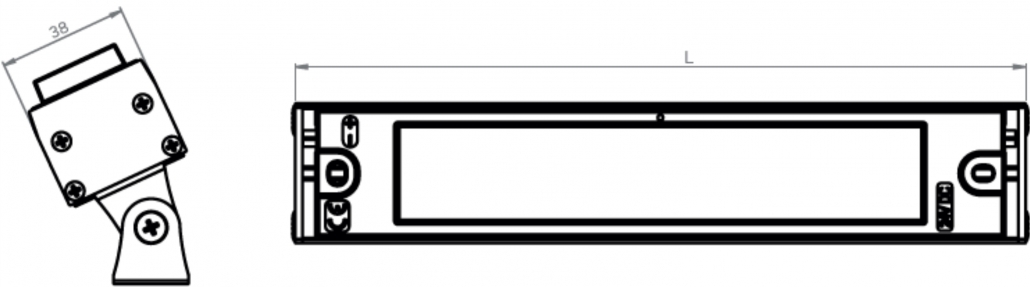

Aero-Up

Facede Lighting

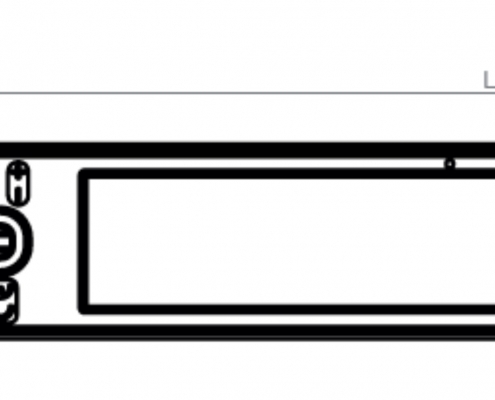

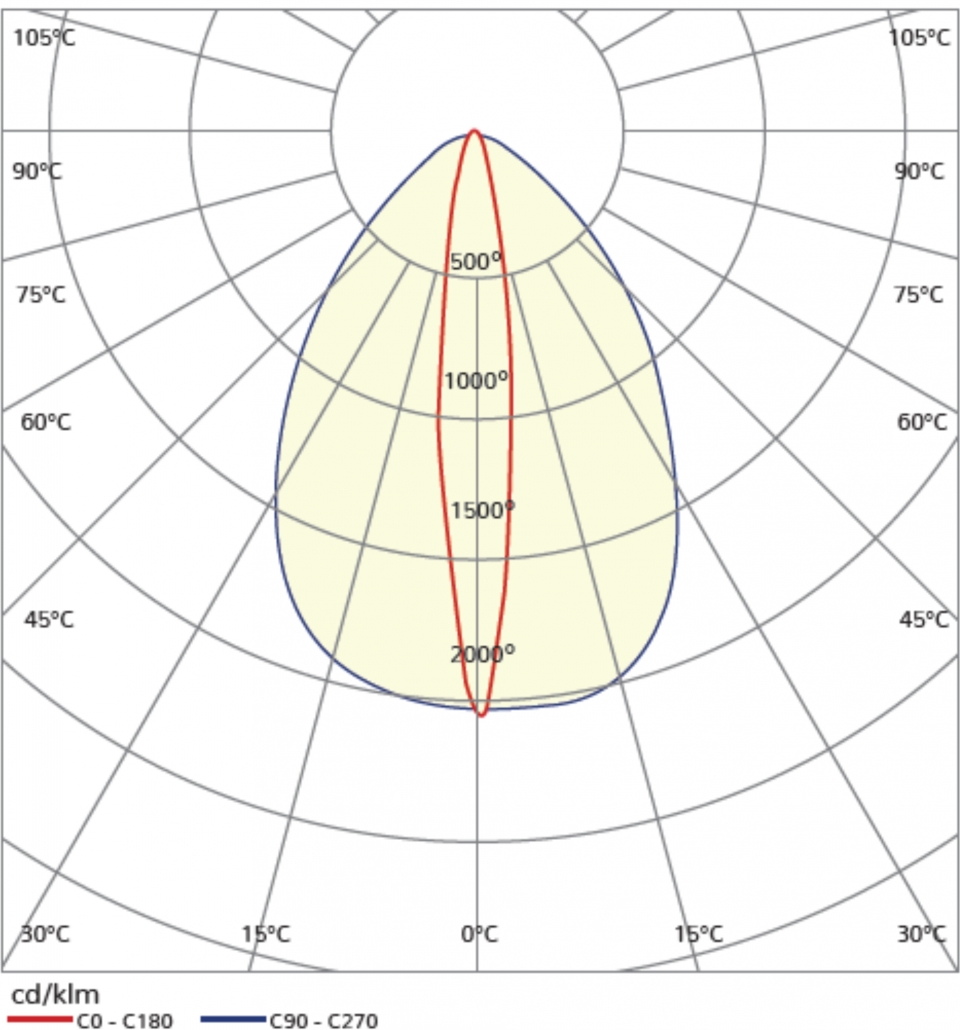

AERO UP


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)

Dimension (axl)
Source
Color Temperature
AERO UP
Min. 6W
600 lm
38x200 mm(Min. 200 mm)
LED
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • Optic: 12°x70°
  • Anodized Aluminium

Options


  • IP65

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/aero-up/feed/ 0 Wallux II https://www.zlux.com/en/zlux-lighting/wallux-ii/ https://www.zlux.com/en/zlux-lighting/wallux-ii/#respond Fri, 29 May 2020 14:58:02 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1840

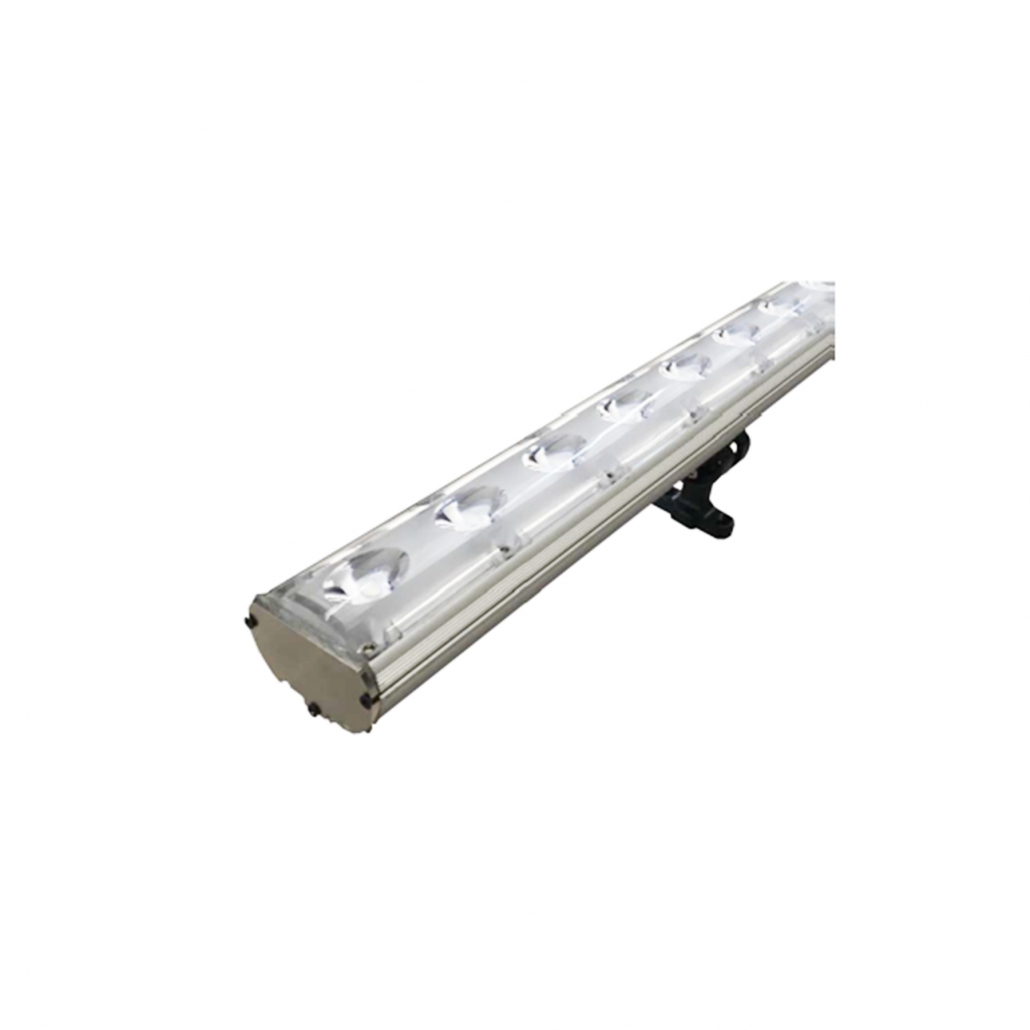

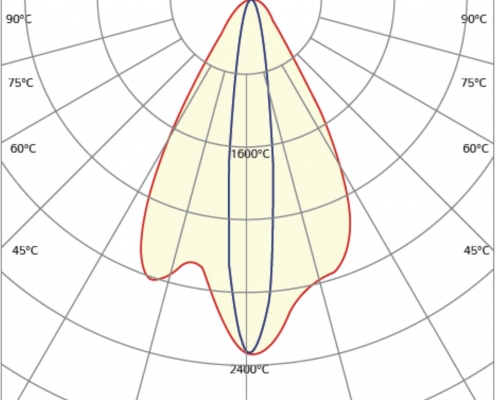

Wallux-2

Facede Lighting

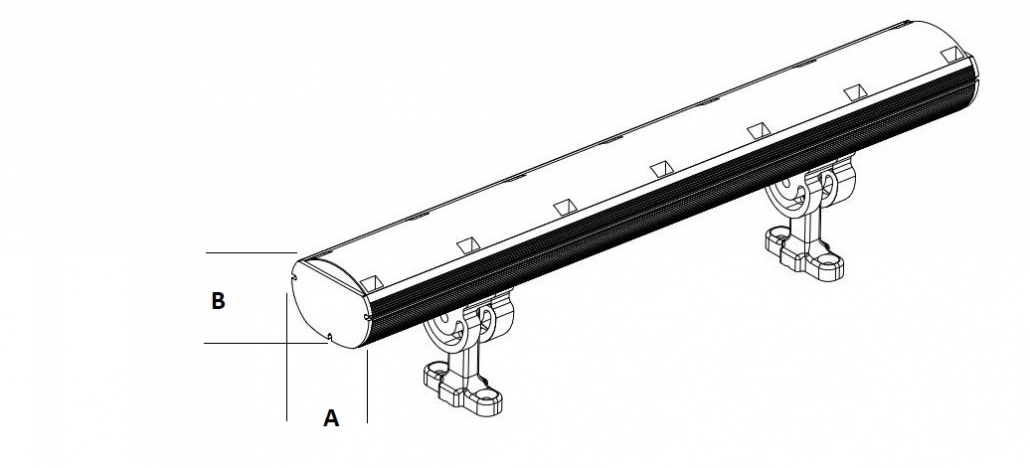

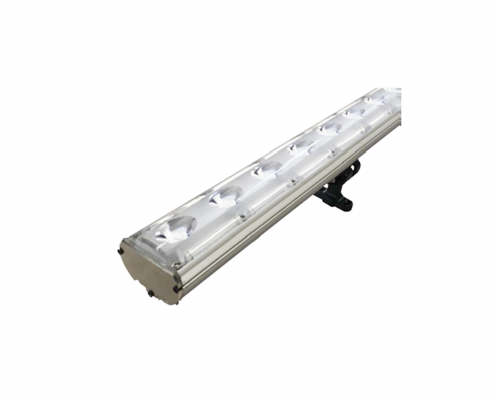

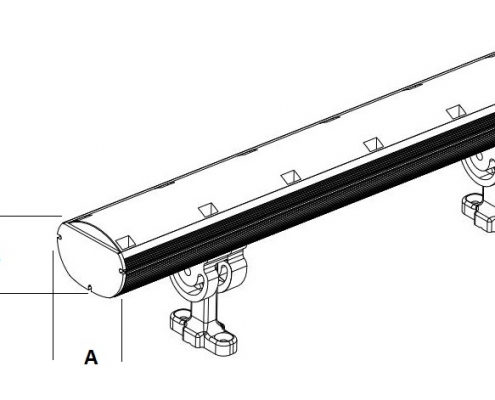

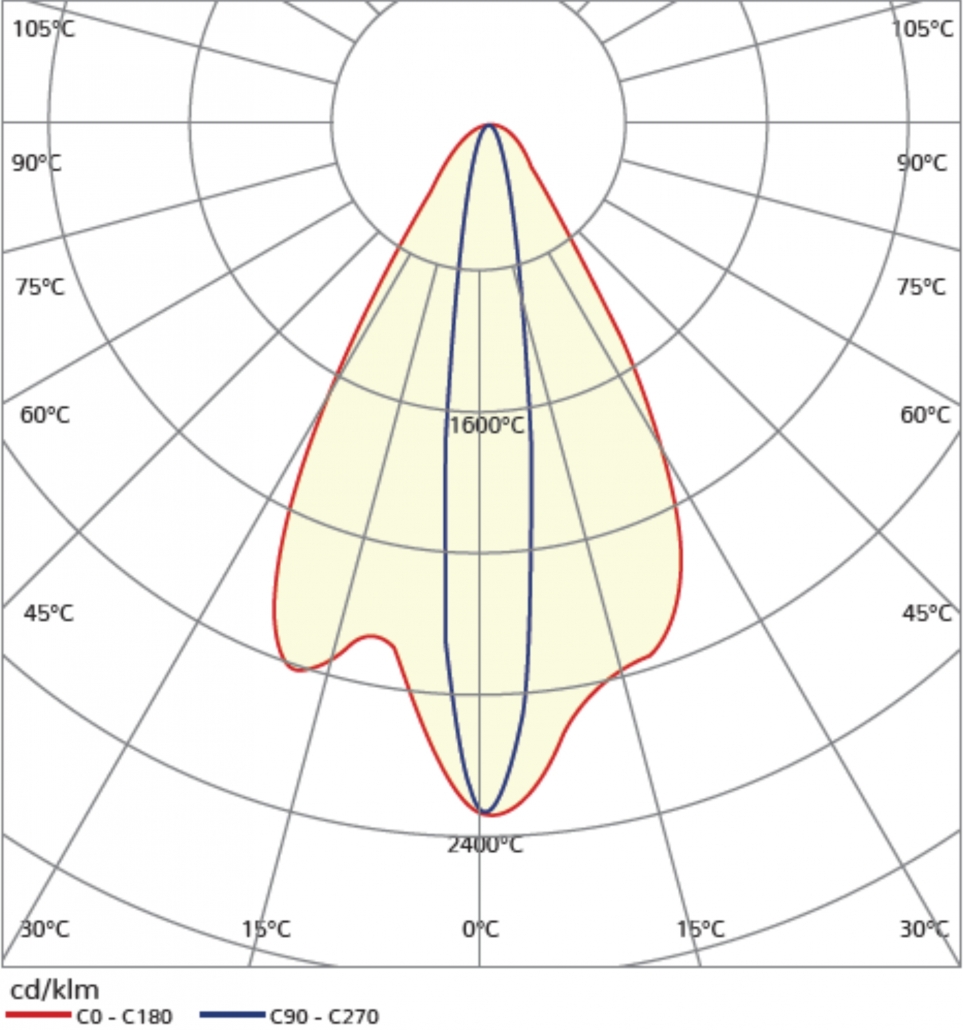

WALLUX II


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimension (axbxl)
Source
Color Temperature
WALLUX II
12 W
1080 lm
37x50x340 mm
LED
2700K/3000K/4000K/6500K/RGB/RGBW/RGBA
24 W
2160 lm
37x50x670 mm
2700K/3000K/4000K/6500K/RGB/RGBW/RGBA
36 W
3240 lm
37x50x1000 mm
2700K/3000K/4000K/6500K/RGB/RGBW/RGBA
48 W
4320 lm
37x50x1330 mm
2700K/3000K/4000K/6500K/RGB/RGBW/RGBA

Specification


  • Surface Mounted Luminaire
  • Optic: 10°,15°,25°,45°,120°,10x60°

Options


  • 1-10V Dimmable,DALI Dimmable
  • IP66

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/wallux-ii/feed/ 0 Zpro S https://www.zlux.com/en/zlux-lighting/zpro-s/ https://www.zlux.com/en/zlux-lighting/zpro-s/#respond Fri, 29 May 2020 14:45:01 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1833
Zpro-S

Facede Lighting

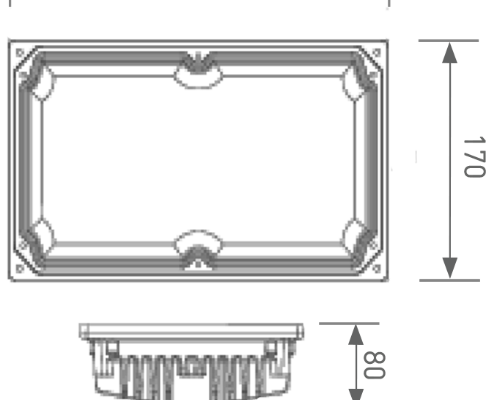

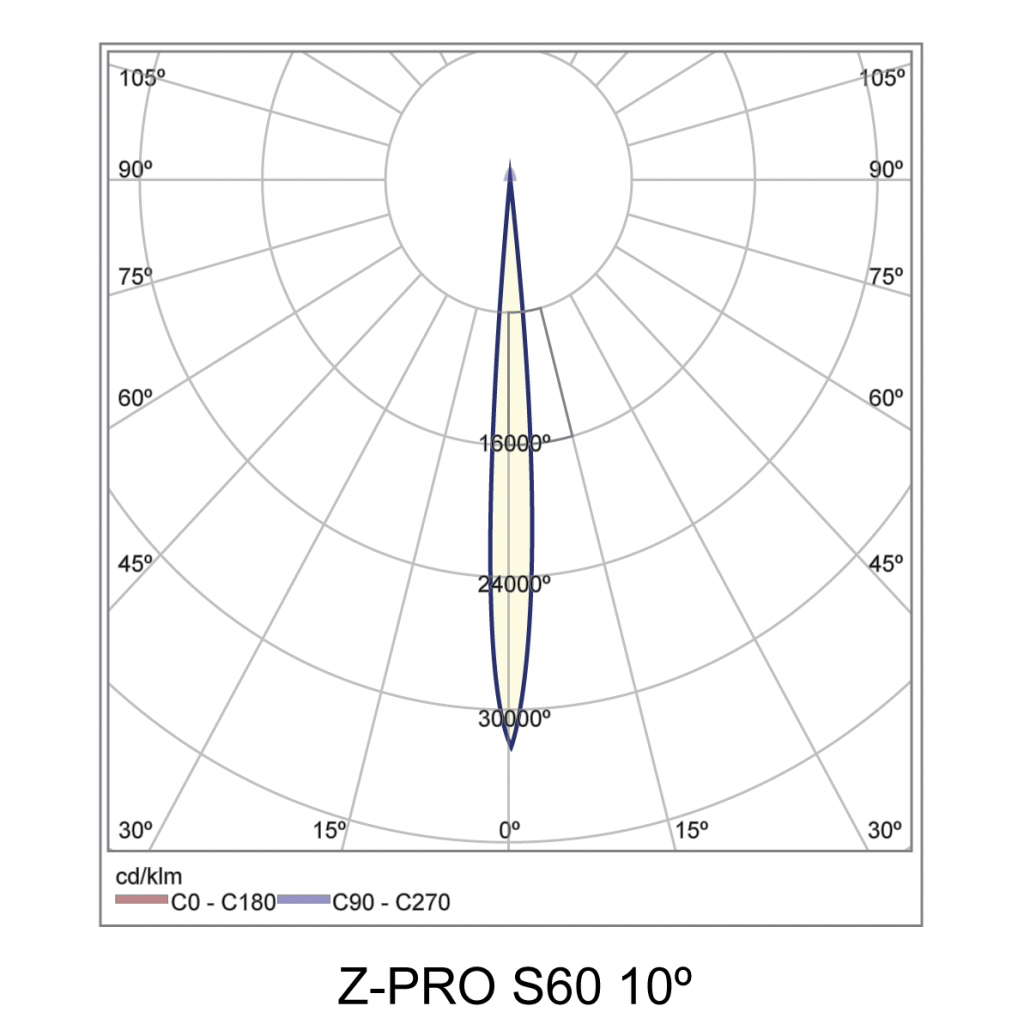

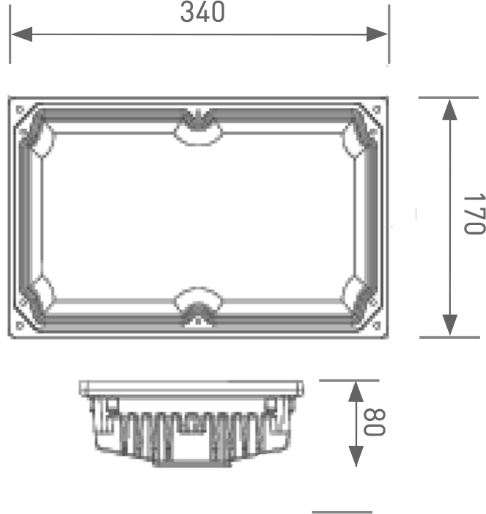

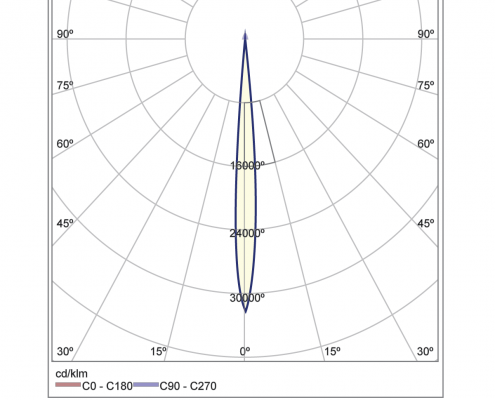

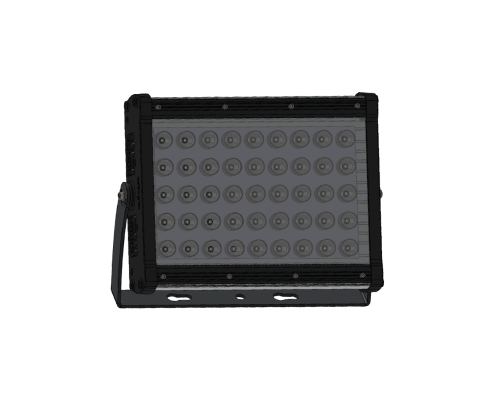

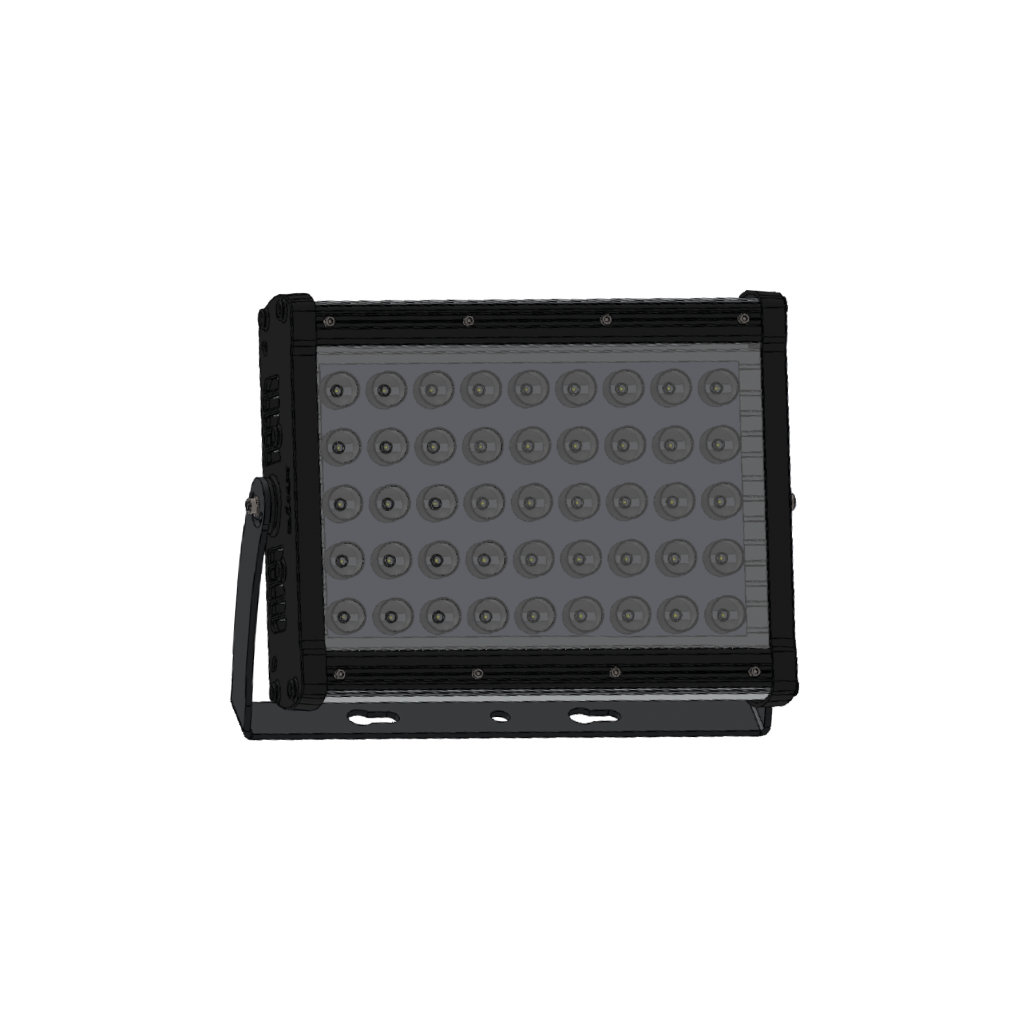

ZPRO S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions(L)
Source
Color Temperature(K)
ZPRO S45
45 W LED
5175 lm
150 mm
LED
2700K/3000K/4000K/6500K,Amber,RGB
ZPRO S90
90 W LED
10.300 lm
300 mm
ZPRO S135
135 W LED
15.500 lm
450 mm
ZPRO S180
180 W LED
20.700 lm
600 mm

Options


  • Dimmable
  • Aluminium
  • Reflector : Tempered Glass
  • 10°,15°,25°,45°,60° 10°x60°,120°
  • Lighting Control System
  • IP66

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
