Waterproof Luminaires-Lineer Luminaires

AERO ROY


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Length (L)
Source
Color Temperature
AERO ROY
12W
1380lm
H : 76mm
W : 83mm
610mm
LED
2700K/3000K/4000K/6500K
18W
1980lm
610mm
25W
2875lm
1210mm
32W
3520lm
1210mm
48W
5040lm
1210mm
35W
4025lm
1510mm
48W
5280lm
1510mm
60W
6300lm
1510mm

Specification


  • Surface mounting
  • Optic: Opal Diffuser PMMA
  • Lenght: As Required

Options


  • ON/OFF or 1-10V Dim, DALI Dim
  • 1-3 Hour Emergency Kit
  • IP65

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/aero-roy/feed/ 0 Payback Round https://www.zlux.com/en/zlux-lighting/payback-round/ https://www.zlux.com/en/zlux-lighting/payback-round/#respond Wed, 23 Jun 2021 06:53:56 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3853

High Bay Lighting

PAYBACK ROUND


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
PAYBACK ROUND
50W
7000lm
Ø300x180mm
LED
4000K/5000K/6500K
70W
9100lm
90W
11700lm
100W
13000lm
120W
15000lm

Ø336x194mm
150W
18000lm
180W
21000lm

Specification


  • Aluminum body
  • Light Angle: 60°,90°,120°

Options


  • 1-10V Dim, DALI Dim
  • 1 Hour Emergency Gear
  • IP65

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/payback-round/feed/ 0 Zetanj Aero Maxi https://www.zlux.com/en/zlux-lighting/zetanj-aero-maxi/ https://www.zlux.com/en/zlux-lighting/zetanj-aero-maxi/#respond Tue, 22 Jun 2021 13:43:49 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3756

Waterproof Luminaires-Lineer Luminaires

ZETANJ AERO MAXI


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Length (L)
Source
Color Temperature
ZETANJ AERO MAXI
35W
4200lm
H : 82mm
W : 96mm
600mm
LED
2700K/3000K/4000K/6500K
52W
6240lm
900mm
70W
8400lm
1200mm
90W
10800lm
1500mm

Specification


  • Surface mounting
  • Lens+Tempered Glass

Options


  • ON/OFF or 1-10V DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP65,IK10

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zetanj-aero-maxi/feed/ 0 Zetanj Damp Proof https://www.zlux.com/en/zlux-lighting/zetanj-damp-proof/ https://www.zlux.com/en/zlux-lighting/zetanj-damp-proof/#respond Tue, 22 Jun 2021 12:58:14 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3738

Waterproof Luminaires-Lineer Luminaires

ZETANJ DAMP PROOF


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Length (L)
Source
Color Temperature
ZETANJ DAMP PROOF HE
18W
2070lm
H : 70mm
W : 56mm
610mm
LED
2700K/3000K/4000K/6500K
40W
4600lm
1210mm
58W
6670lm
1510mm



ZETANJ DAMP PROOF HO
15W
1650lm
865mm
18W
1980lm
865mm
28W
3080lm
1145mm
33W
3630lm
1145mm
42W
4620lm
1425mm
48W
5280lm
1425mm
54W
6000lm
1425mm

Specification


  • Surface mounting
  • Optic: Opal Diffuser PMMA
  • Lenght: As Required

Options


  • ON/OFF or 1-10V DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP65,IK10

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zetanj-damp-proof/feed/ 0 Payback Z https://www.zlux.com/en/zlux-lighting/payback-z/ https://www.zlux.com/en/zlux-lighting/payback-z/#respond Thu, 28 May 2020 05:42:58 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1723
Payback-Z

High Bay Lighting

PAYBACK Z


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Dimensions (L)
Beam Angle
Protection Class
Reflector
Body
Source
Color Temperature(K)
PBK Z 1H
45W LED
150 mm
40°
IP65
PMMA UV Protected
Alüminyum
LED
2700K/3000K/4000K/6500K
PBK Z 2H
90W LED
300 mm
2700K/3000K/4000K/6500K
PBK Z 3H
135W LED
450 mm
2700K/3000K/4000K/6500K
PBK Z 4H
180W LED
600 mm
2700K/3000K/4000K/6500K
PBK Z 5H
225W LED
750 mm
2700K/3000K/4000K/6500K

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/payback-z/feed/ 0 Payback M https://www.zlux.com/en/zlux-lighting/payback-m/ https://www.zlux.com/en/zlux-lighting/payback-m/#respond Thu, 28 May 2020 05:37:41 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1716
Payback-M

High Bay Lighting

PAYBACK M


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions (L)
Beam Angle
Protection Class
Body
Source
Color Temperature(K)
PBK M 1H
45W LED
5400 lm
150 mm
45°-70°
IP43,IP65
Alüminyum
LED
2700K/3000K/4000K/6500K
PBK M 2H
90W LED
10.800 lm
300 mm
2700K/3000K/4000K/6500K
PBK M 3H
135W LED
16.200 lm
450 mm
2700K/3000K/4000K/6500K
PBK M 4H
180W LED
21.600 lm
600 mm
2700K/3000K/4000K/6500K
PBK M 5H
225W LED
27.000 lm
750 mm
2700K/3000K/4000K/6500K

Options


  • Dimmable Driver
  • 1 Hour Emergency Gear
  • 3 Hour Emergency Gear

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/payback-m/feed/ 0 ZPot Pro L https://www.zlux.com/en/zlux-lighting/zpot-pro-l/ https://www.zlux.com/en/zlux-lighting/zpot-pro-l/#respond Thu, 28 May 2020 05:09:56 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1707
ZPOT PRO L

High Bay Lighting

ZPOT PRO L


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions (Øxh)
Source
Color Temperature
ZPOT PRO L
96W
10500 lm
390x240
LED
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted Luminaire
  • Mounting Type : With special bracket (0-45° Tilt adjustable , 5° stepping )
  • Optics: Lens

Options


  • 1-3 Hour emergency kit
  • 1-10V Dimmable, DALI Dimmable
  • IP44
  • Beam Angle: 25°,40°

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-pro-l/feed/ 0 Alien Areapro Circle https://www.zlux.com/en/zlux-lighting/alien-areapro-circle/ https://www.zlux.com/en/zlux-lighting/alien-areapro-circle/#respond Wed, 27 May 2020 11:33:58 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1696 https://www.zlux.com/en/zlux-lighting/alien-areapro-circle/feed/ 0 Alien Areapro https://www.zlux.com/en/zlux-lighting/alien-areapro/ https://www.zlux.com/en/zlux-lighting/alien-areapro/#respond Wed, 27 May 2020 11:21:34 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1689
Alien-Areapro

Area Lighting

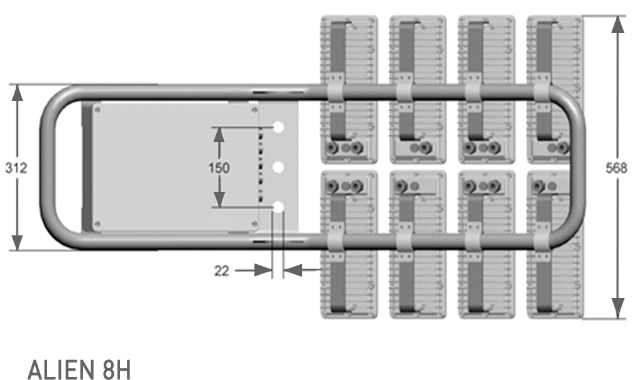

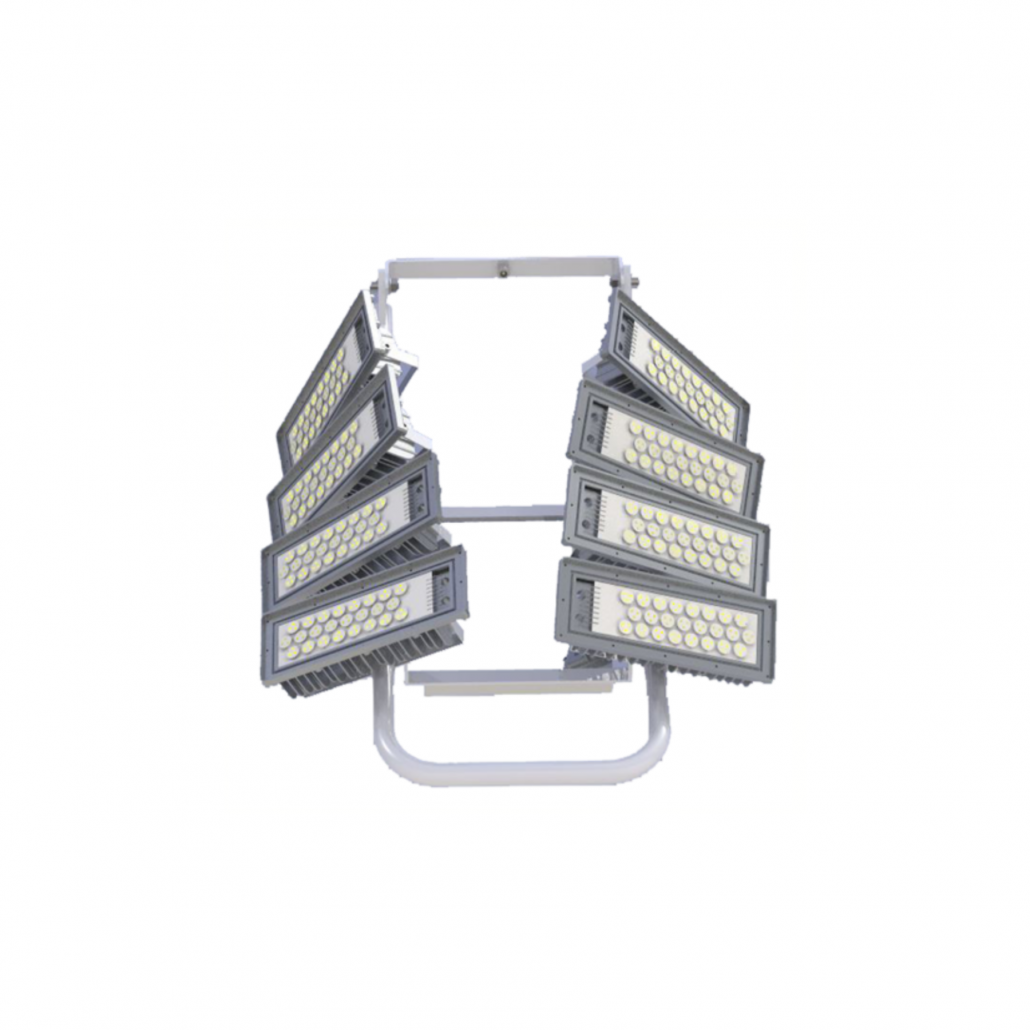

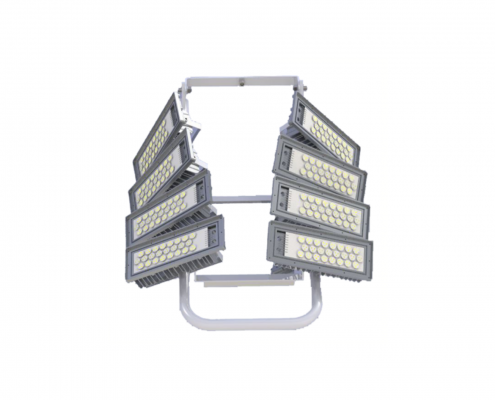

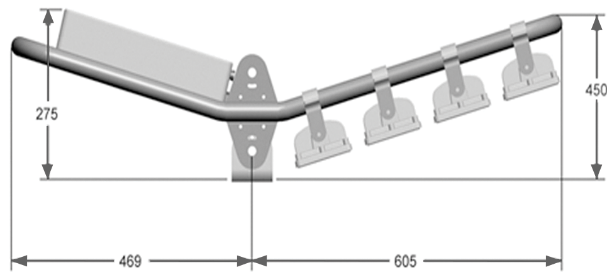

ALIEN AREAPRO


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen (lm)

Color Rendering (CRI)
Driver Efficiency
Power Factor (cosØ)
S/P Ratio
Visualy Effective Lumens

CCT(Kelvin)
ALIEN 2H
350W
42.000
>80
>90
>95
1.9
66.500
2700K/3000K/4000K/6500K
ALIEN 4H
700W
84.000
133.000
ALIEN 6H
1050W
126.000
199.500
ALIEN 8H
1400W
168.000
266.000

Options


  • Flexible light control per fixture, per field, per sports complex
  • Dimmable per fixture 100%-5%
  • Luminance programmable per fixture part
  • Programmable light switching plan per field and for the whole sport complex(i.e 50 lux orientation level;200 lux training level;300 lux game level)
  • Constant high light output over the whole lifetime (>40.000 Hours)
  • Led light color is close to daylight color
  • Light can be switched on and off at any time

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/alien-areapro/feed/ 0 Zetanj Pc https://www.zlux.com/en/zlux-lighting/zetanj-pc/ https://www.zlux.com/en/zlux-lighting/zetanj-pc/#respond Wed, 27 May 2020 10:57:27 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1675
Zetanj-Pc

Waterproof Luminaires-Lineer Luminaires

ZETANJ PC


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Length (L)
Source
Color Temperature
ZETANJ PC
12W
1440lm
H : 108mm
W : 104mm
679mm
LED
2700K/3000K/4000K/6500K
18W
2070lm
679mm
25W
2750lm
1289mm
32W
3680lm
1289mm
48W
5280lm
1289mm
35W
4200lm
1589mm
48W
5520lm
1589mm
60W
6600lm
1589mm

Options


  • Dimmable
  • Motion Sensor
  • Daylight Sensor
  • 1 Hour Emergency Gear
  • 3 Hour Emergency Gear

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
