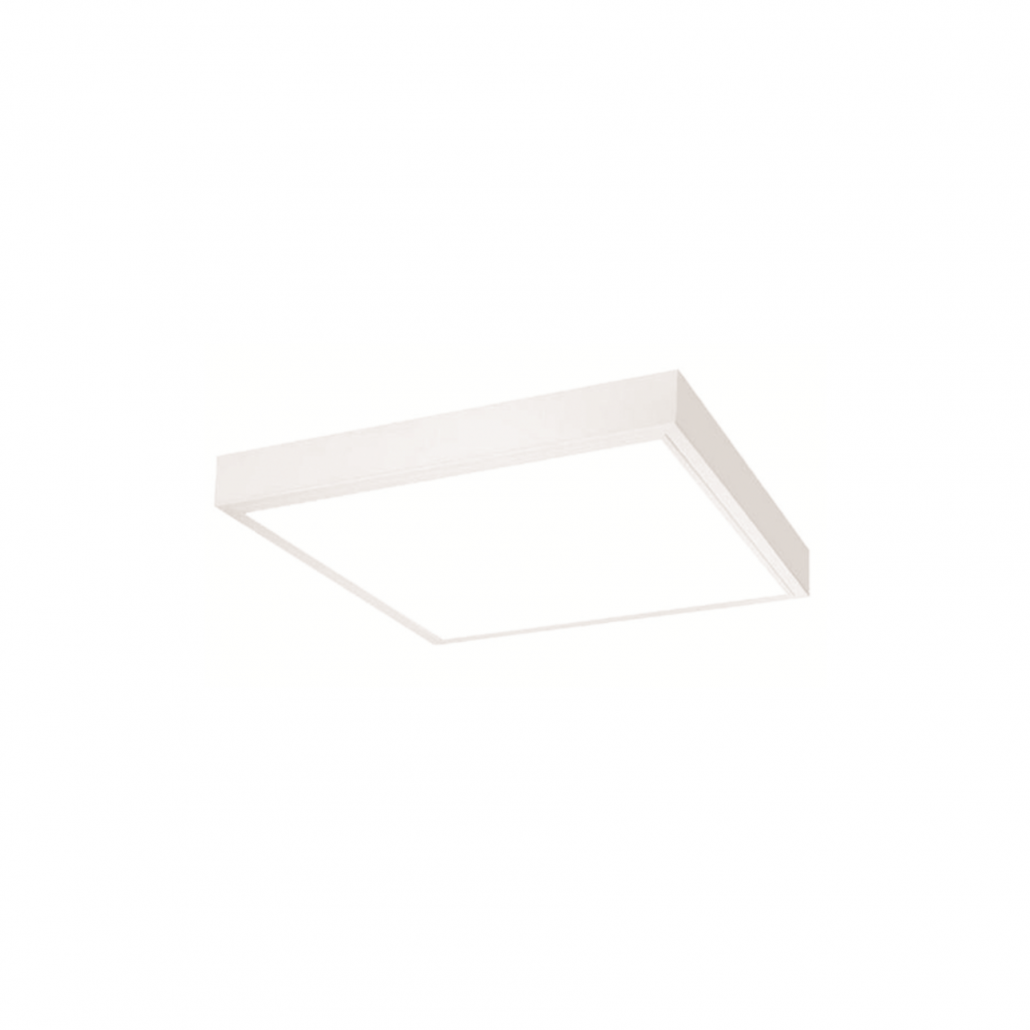

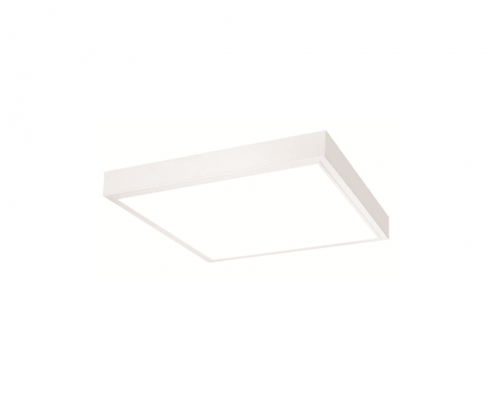

ZPanel-S

Panel Luminaires-Surface Mounted Luminaires

ZPANEL S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output (4000K)

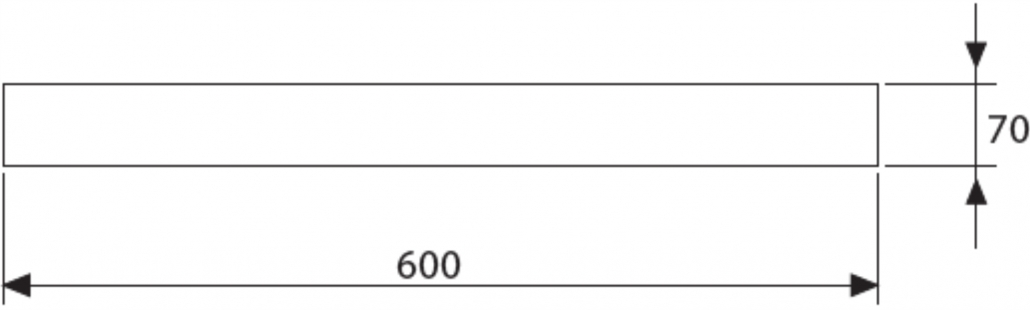

Dimensions
Reflector
Source
Color Temperature
ZPANEL S
15W LED
1500 lm
300x300 mm
Opal Difüzör
LED
2700K/3000K/4000K/6500K
21W LED
2000 lm
300x300 mm
2700K/3000K/4000K/6500K
35W LED
3500 lm
600x600 mm
2700K/3000K/4000K/6500K
45W LED
4200 lm
600x600 mm
2700K/3000K/4000K/6500K
45W LED
4200 lm
300x1200 mm
2700K/3000K/4000K/6500K
45W LED
4500 lm
600x1200 mm
2700K/3000K/4000K/6500K

Specification


  • Optic: Opal Diffuser

Options


  • ON/OFF
  • DALI Dimmable
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpanel-s/feed/ 0 Zircle S https://www.zlux.com/en/zlux-lighting/zircle-s/ https://www.zlux.com/en/zlux-lighting/zircle-s/#respond Thu, 21 May 2020 05:16:07 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1583

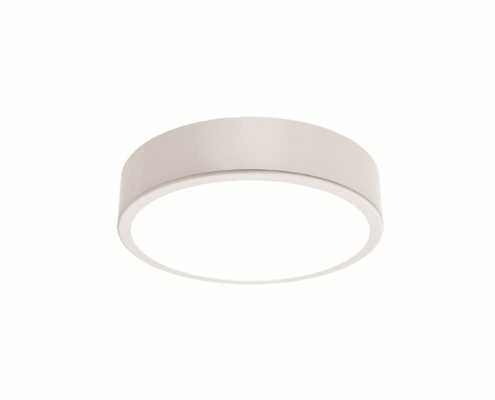

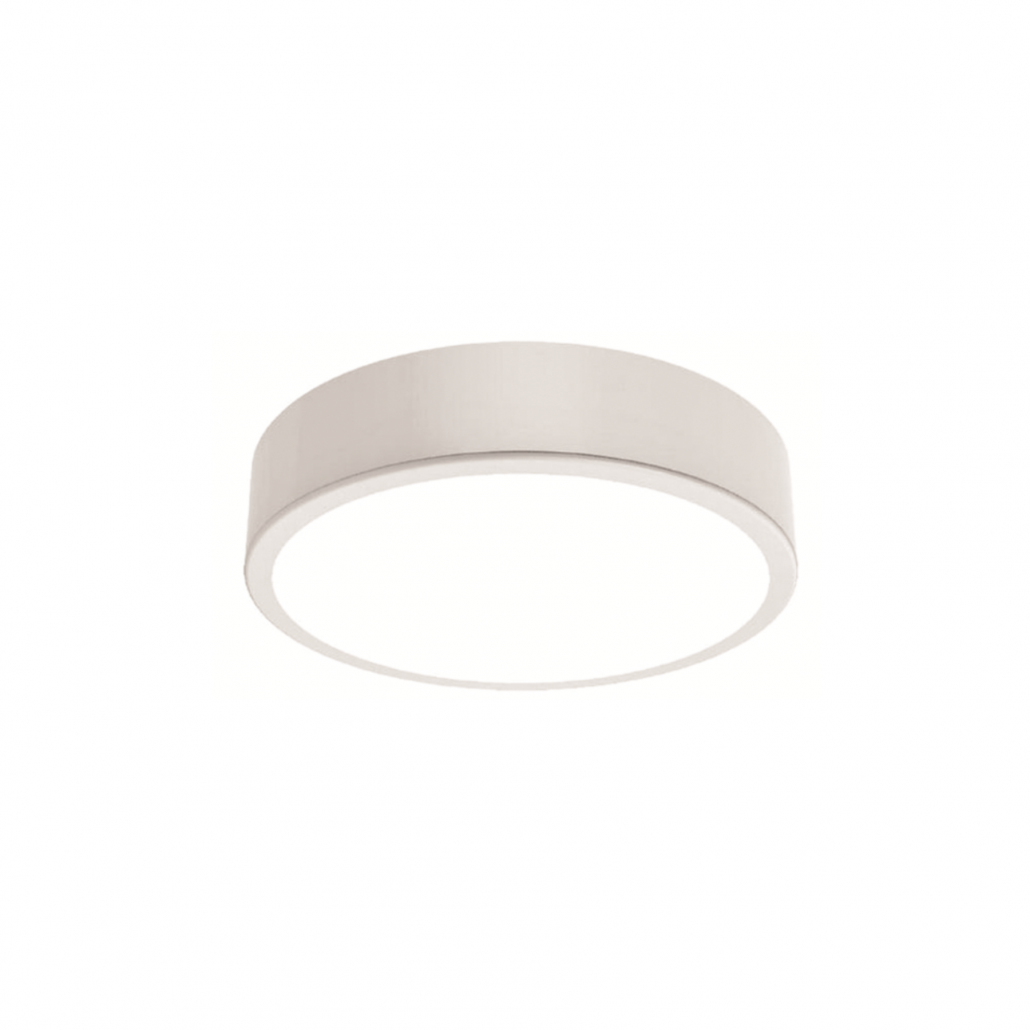

Zircle-S

Surface Mounted Luminaires

ZIRCLE S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)

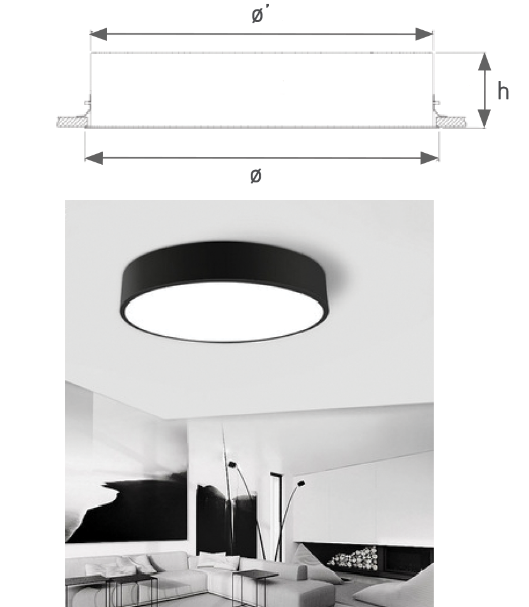

Dimensions Øxh
Source
Color Temperature
ZIRCLE S35
18W
1600 lm
350x120 mm
LED
2700K/3000K/4000K/6500K
ZIRCLE S60
36W
3240 lm
600x120 mm
2700K/3000K/4000K/6500K
ZIRCLE S90
90W
5400 lm
900x120 mm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounting
  • Optic: Opal Diffuser
  • Aluminium Body With Electrostatic Paint
  • 220-240V 50/60 Hz

Options


  • 1-10V Dimmable, DALI Dimmable
  • Motion Sensor
  • Daylight Sensor
  • 1-3 Hour Emergency Kit
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zircle-s/feed/ 0 ZPanel R https://www.zlux.com/en/zlux-lighting/zpanel-r/ https://www.zlux.com/en/zlux-lighting/zpanel-r/#respond Wed, 20 May 2020 12:45:35 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1510

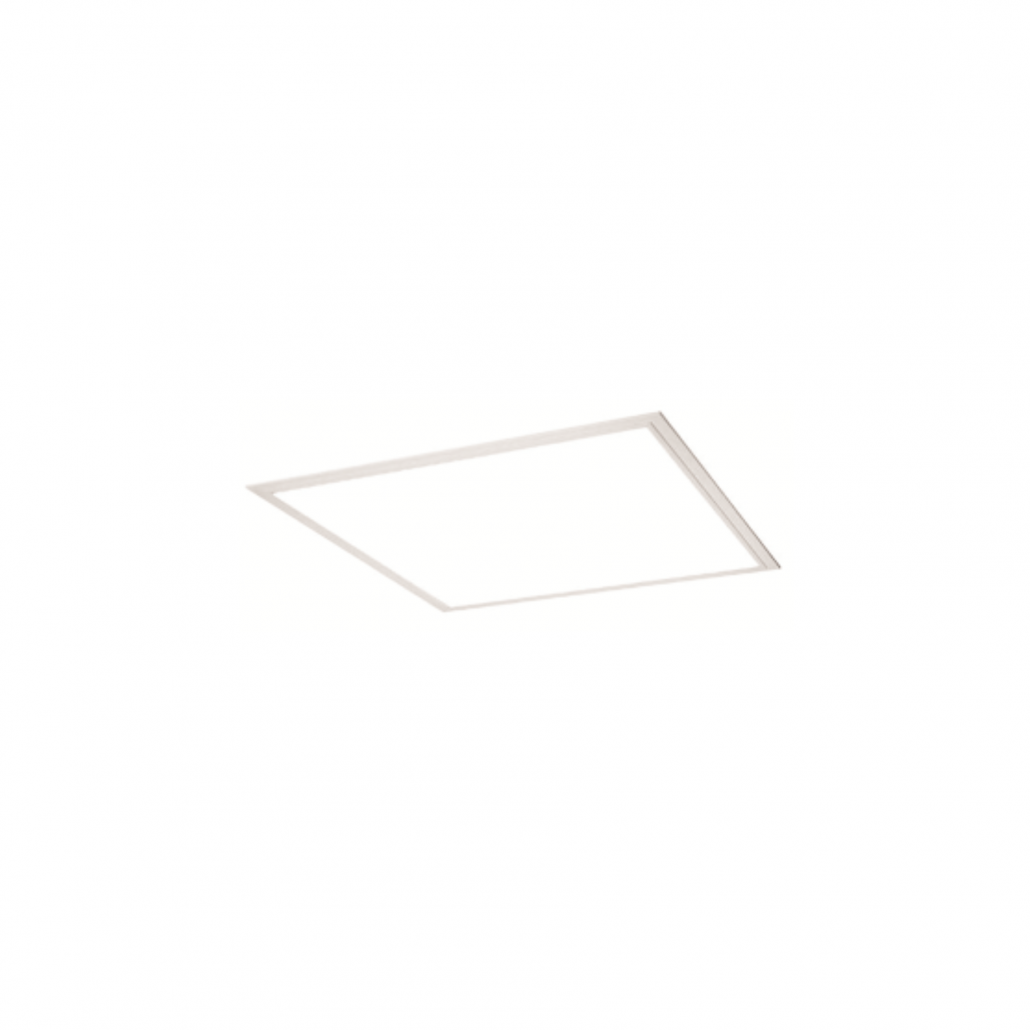

Panel Luminaires

ZPANEL R


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(4000K)

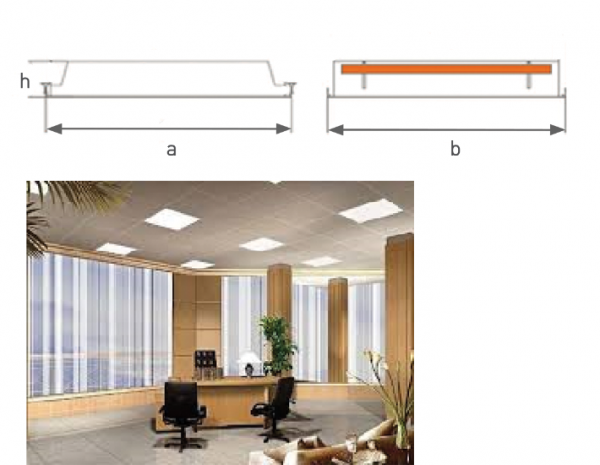

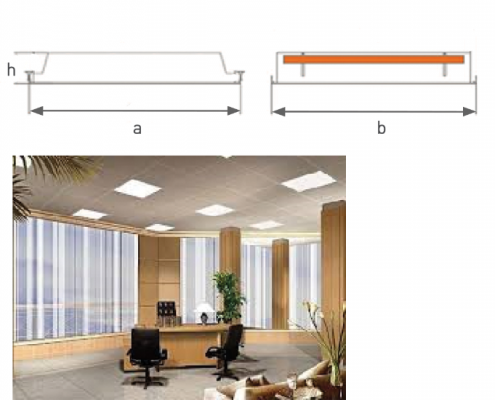

Dimensions (wxhxl)
Source
Color Temperature
ZPANEL R
18W
1980 lm
295x295x65 mm
LED
2700K/3000K/4000K/6500K
23W
2530 lm
595x595x65 mm
2700K/3000K/4000K/6500K
28W
3080 lm
595x595x65 mm
2700K/3000K/4000K/6500K
35W
4000 lm
595x595x65 mm
2700K/3000K/4000K/6500K
40W
4400 lm
595x595x65 mm
2700K/3000K/4000K/6500K
45W
4950 lm
295x1195x65 mm
2700K/3000K/4000K/6500K
84W
9240 lm
295x1195x65 mm
2700K/3000K/4000K/6500K

Specification


  • Recessed mounting
  • Optics: Opal Diffuser
  • Aluminium Body with Electrostatic Paint
  • 220-240V 50/60 Hz

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20,IP44
  • Clip-in Celing Option

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpanel-r/feed/ 0 Zircle R https://www.zlux.com/en/zlux-lighting/zircle-r/ https://www.zlux.com/en/zlux-lighting/zircle-r/#respond Tue, 10 Mar 2020 14:34:13 +0000 http://www.zlux.com/en/?post_type=portfolio&p=726

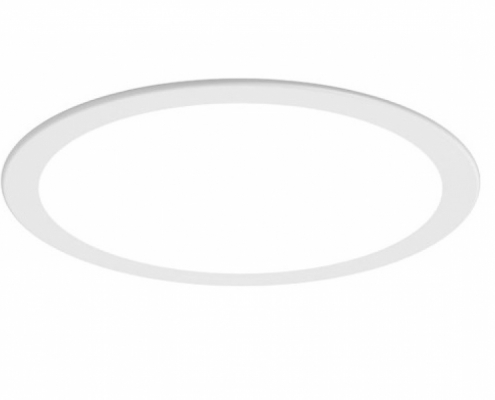

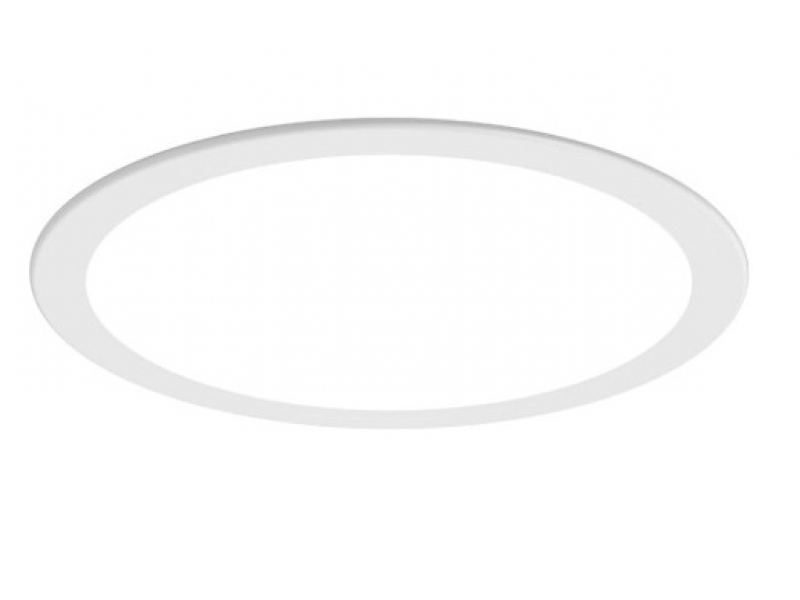

ZIRCLE R

Panel Luminaires

ZIRCLE R


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output

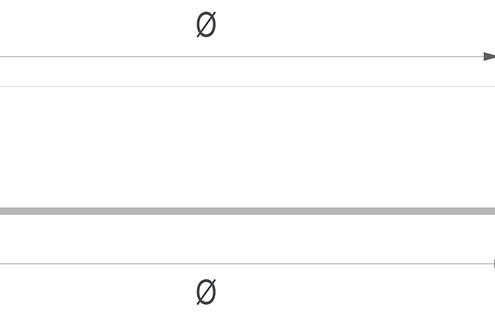

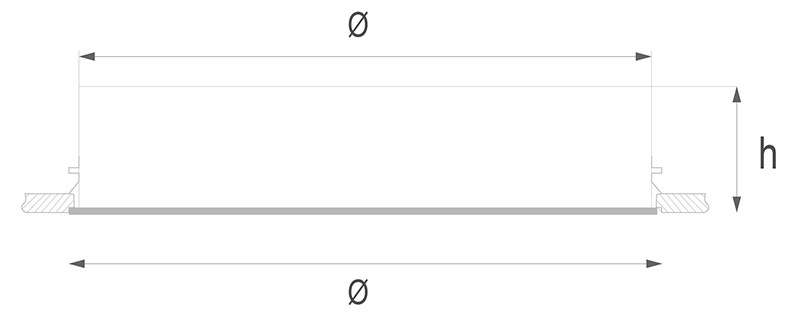

Dimensions (axbxh)
Cut Out (ø’)
Source
Color Temperature
ZIRCLE R35
18W
1836 lm
ø35 cmx120 mm
ø340
LED
2700K/3000K/4000K/6500K
ZIRCLE R60
36W
3672 lm
ø60 cmx120 mm
ø590
2700K/3000K/4000K/6500K
ZIRCLE R120
60W
6120 lm
ø90 cmx120 mm
ø890
2700K/3000K/4000K/6500K

Specification


  • Recessed mounting
  • Optics: louvre, colored diffuser, micro prismatic diffuser, frosted diffuser
  • Body aluminium with electrostatic paint

Options


  • Current,1-10V Dimmable, DALI Dimmable
  • Motion sensor
  • Daylight sensor
  • 1-3 Hour emergency kit
  • Surface mounting case
  • IP20
  • Clip-in celing option

Color


White

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zircle-r/feed/ 0 Zircle Loop R https://www.zlux.com/en/zlux-lighting/zircle-loop-r/ https://www.zlux.com/en/zlux-lighting/zircle-loop-r/#respond Tue, 10 Mar 2020 12:01:57 +0000 http://www.zlux.com/en/?post_type=portfolio&p=613
ZIRCLE LOOP R

Panel Luminaires

ZIRCLE LOOP R


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions (øxh)
Cut Out
Source
Color Temperature
ZIRCLE R35
18W
1600 lm
350x120 mm
590
LED
2700K/3000K/4000K/6500K
ZIRCLE R60
36W
2800 lm
600x120 mm
340
2700K/3000K/4000K/6500K
ZIRCLE R90
60W
3000 lm
900x120 mm
890
2700K/3000K/4000K/6500K

Specification


  • Recessed mounting
  • Opal diffuser
  • Aluminium body with electrostatic paint

Options


  • Current,1-10V Dimmable, DALI Dimmable
  • Motion sensor
  • Daylight sensor
  • 1-3 Hour emergency kit
  • Surface mounting case
  • IP20, IP44kit

Color


White

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
