Downlight

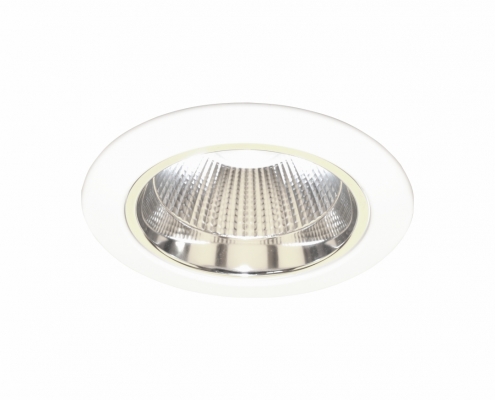

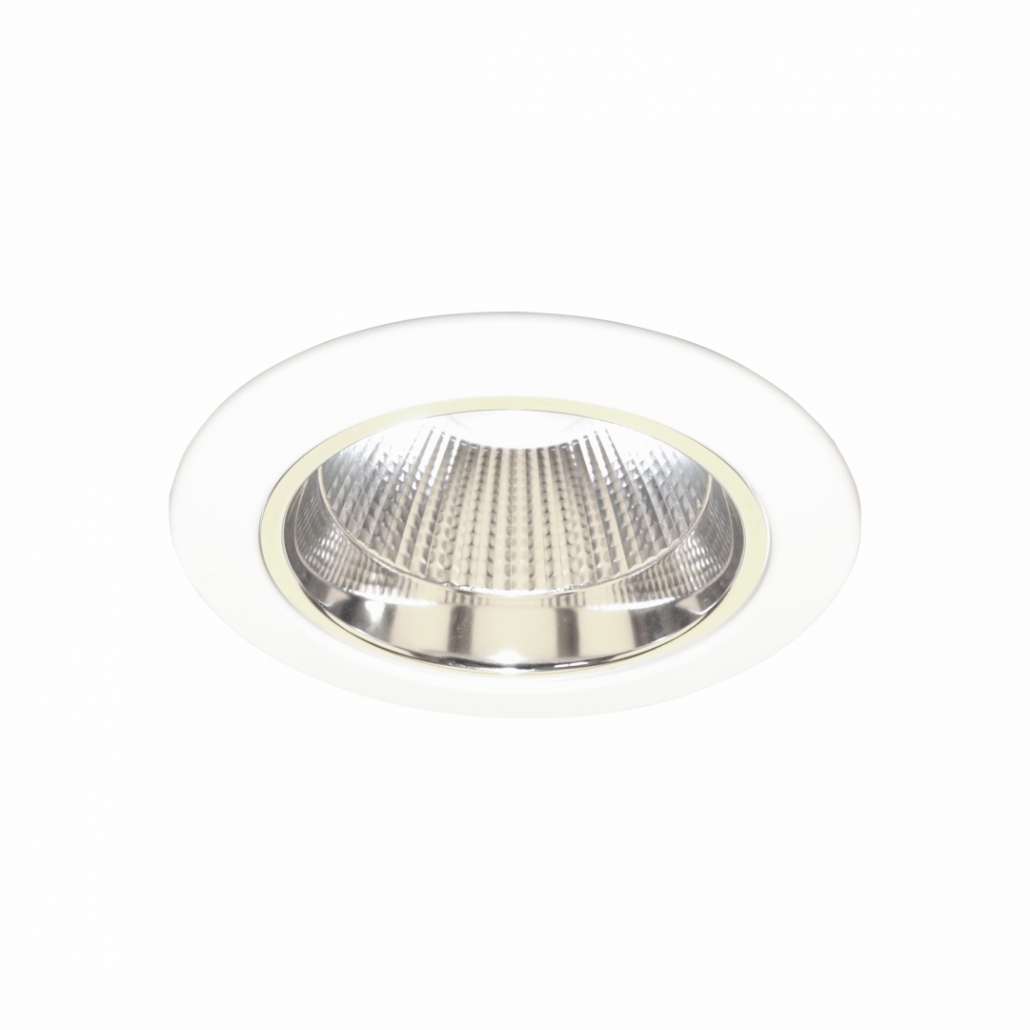

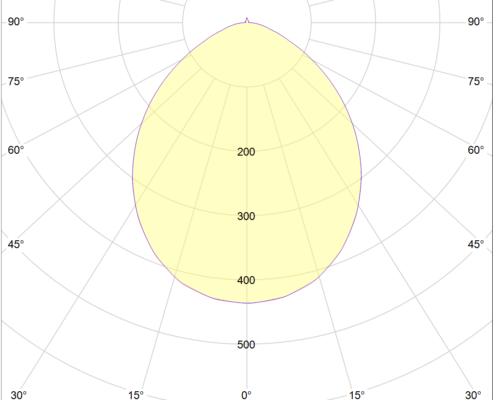

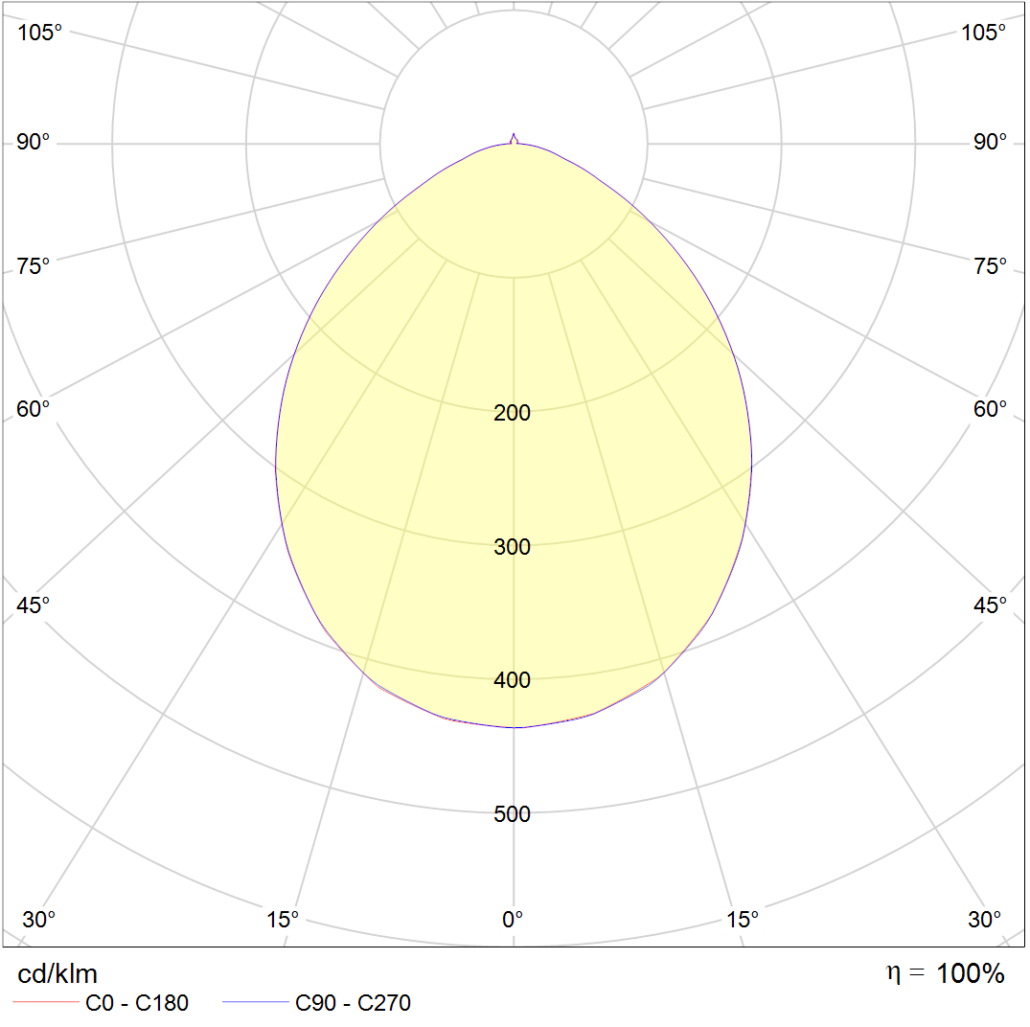

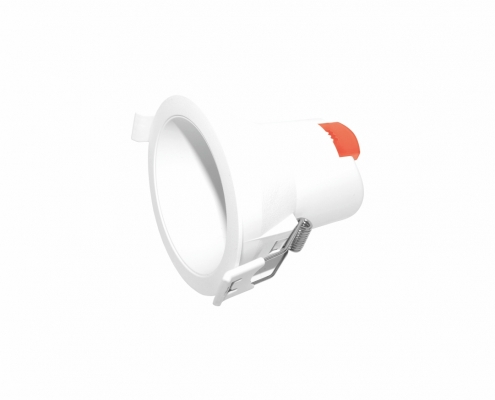

ZPOT MIKA


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out
Source
Color Temperature
ZPOT MIKA 4"
4,5W
500lm
H : 50mm
Ø : 119,5mm
Ø : 103mm
LED
2700K/3000K/4000K/6500K
ZPOT MIKA 5"
7W
840lm
H : 54mm
Ø : 147mm
Ø : 127mm
ZPOT MIKA 6"
11W
1250lm
H : 56mm
Ø : 177mm
Ø : 155mm
ZPOT MIKA 8"
12,5W
1400lm
H : 57,5mm
Ø : 228,5mm
Ø : 205mm

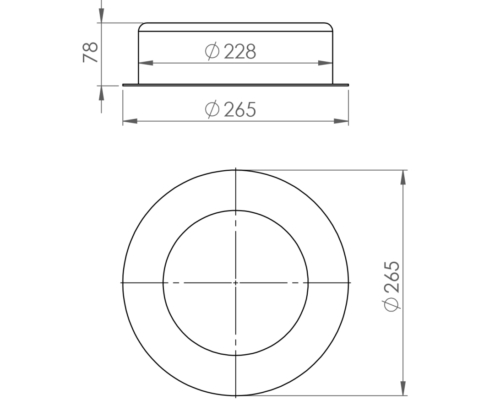

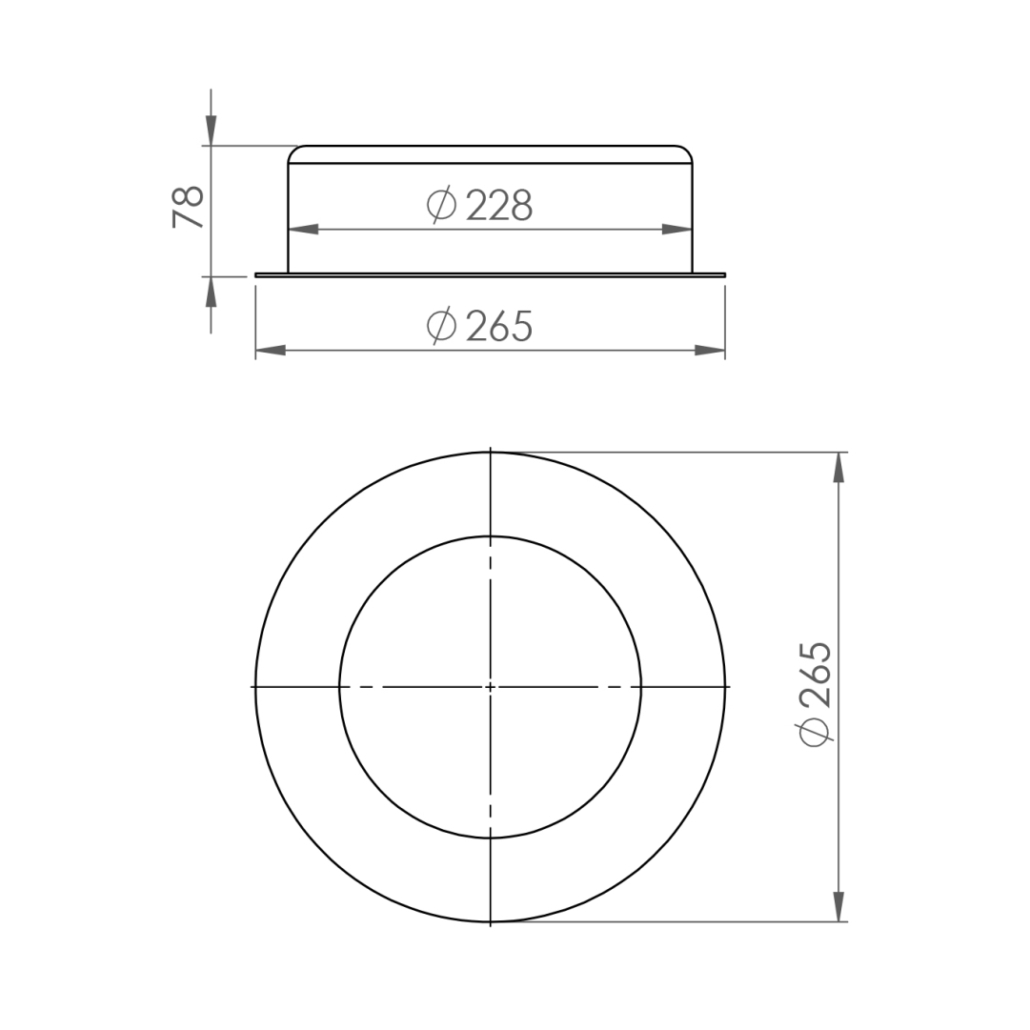

ZPOT MIKA 10"
20W
2300lm
H : 78mm
Ø : 265mm
Ø : 228mm

Specification


  • Aluminum Body
  • Electrostatic Powder Coating
  • Light Angle : 15°, 25° , 35° , 50°

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-mika/feed/ 0 Zpot C1 Mini https://www.zlux.com/en/zlux-lighting/zpot-c1-mini/ https://www.zlux.com/en/zlux-lighting/zpot-c1-mini/#respond Tue, 22 Jun 2021 12:05:44 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3714

Downlight

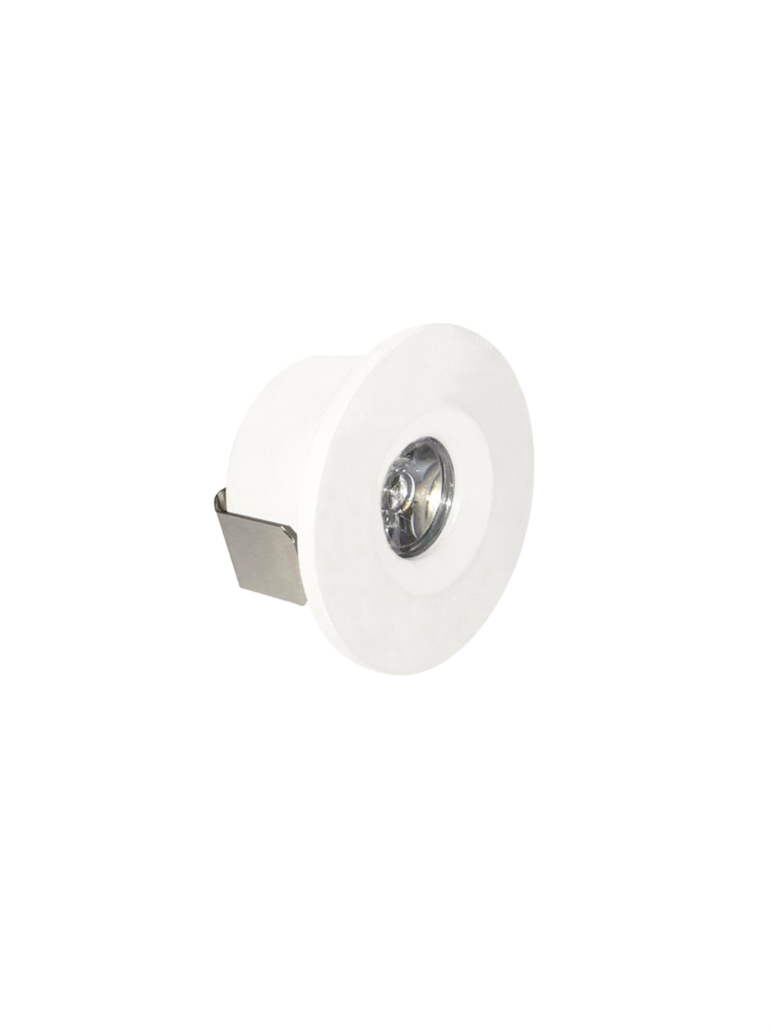

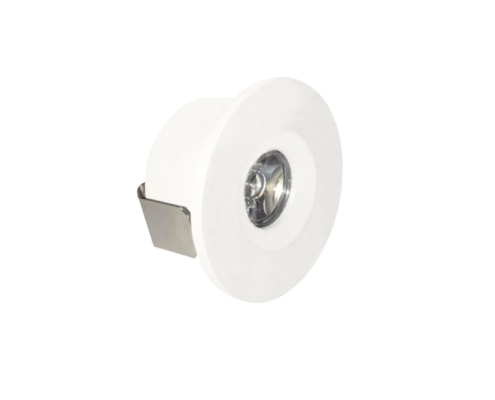

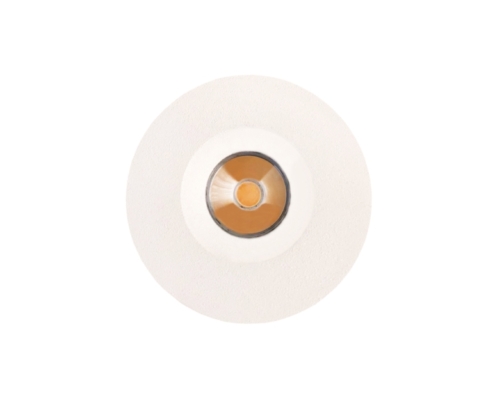

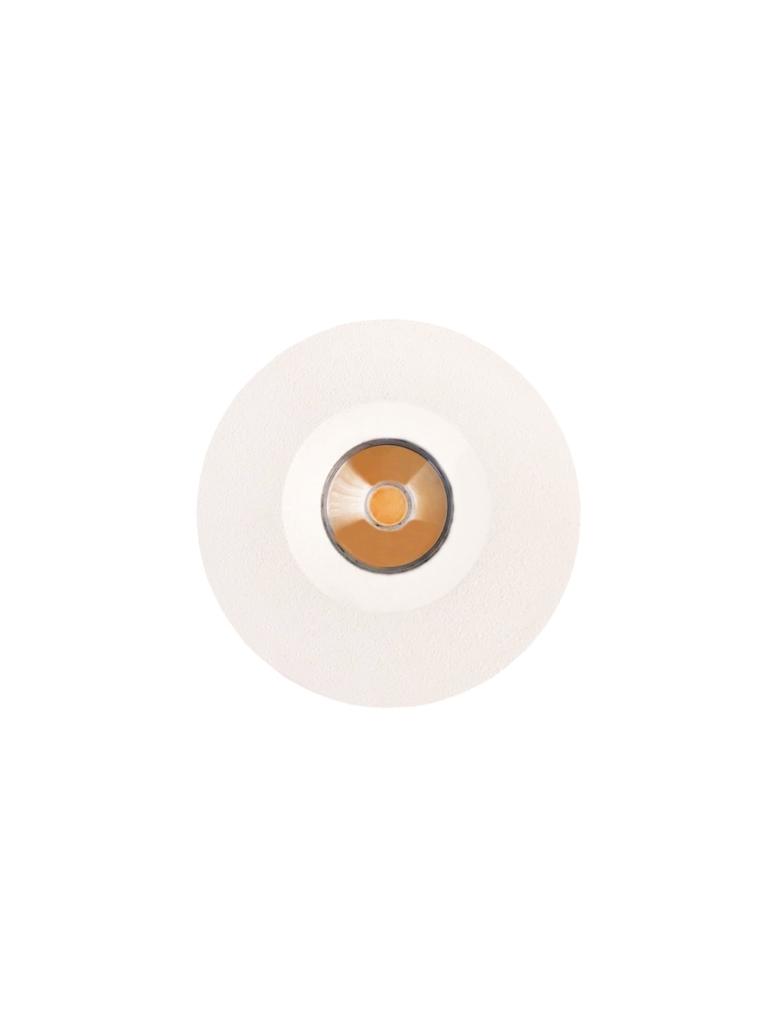

ZPOT C1 MINI


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out
Source
Color Temperature

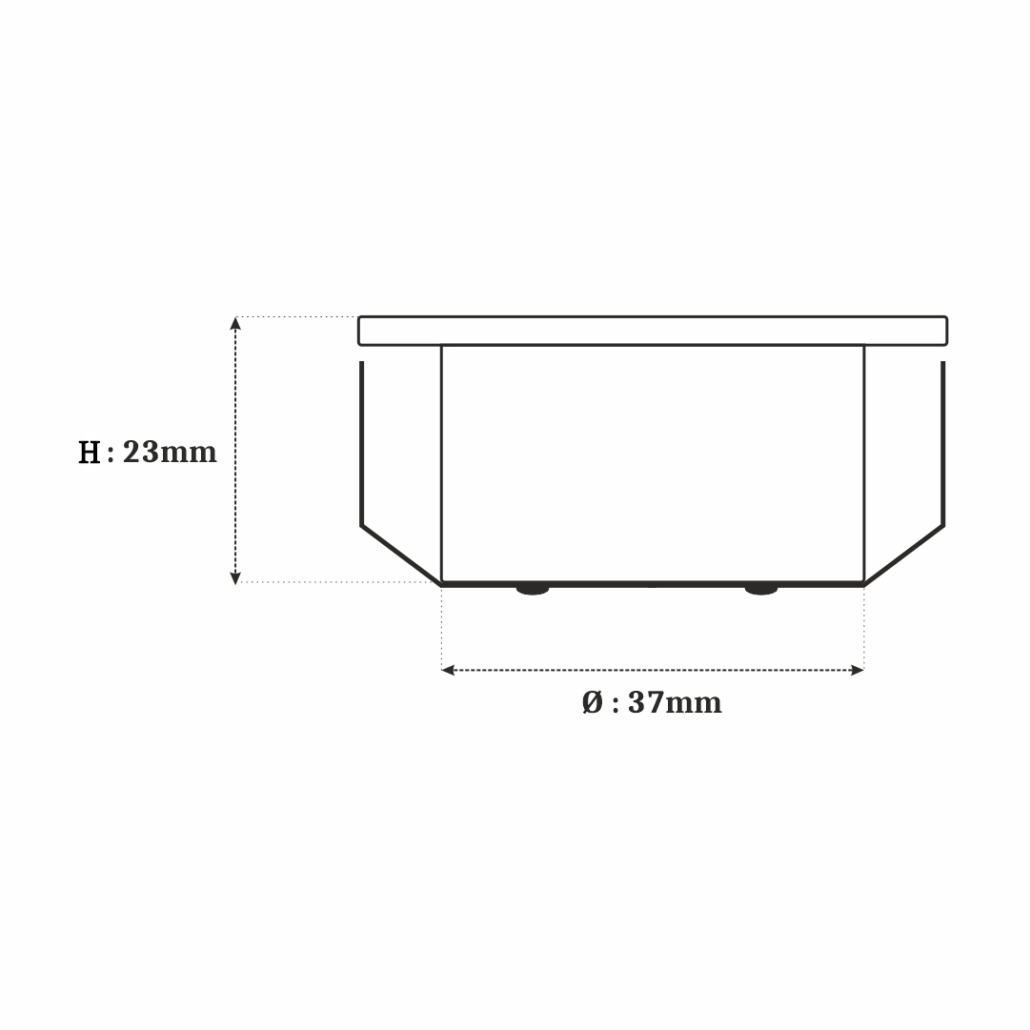

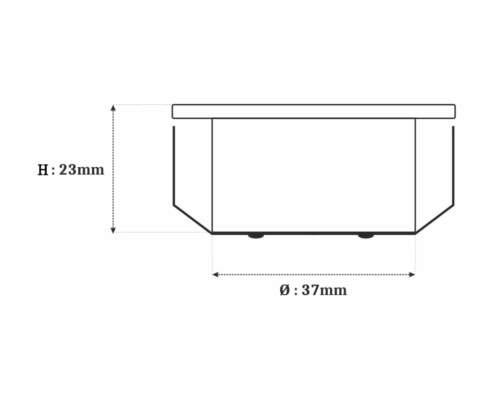

ZPOT C1 MINI
3W
300lm
H : 23mm
Ø : 48mm
Ø : 37mm
LED
2700K/3000K/4000K/6500K

Specification


  • Recessed Luminaire
  • Electrostatic Powder Coating and Aluminum Body

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-c1-mini/feed/ 0 Zpot Stairs SQ https://www.zlux.com/en/zlux-lighting/zpot-stairs-sq/ https://www.zlux.com/en/zlux-lighting/zpot-stairs-sq/#respond Tue, 22 Jun 2021 11:42:33 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3704

Downlight

ZPOT STAIRS SQ


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out
Source
Color Temperature
ZPOT STAIRS SQ
1W
100lm
H : 36mm
L : 40mm
W : 40mm
Ø : 31mm
LED
2700K/3000K/4000K/6500K

Specification


  • Recessed Luminaire
  • Electrostatic Powder Coating and Aluminum Body

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-stairs-sq/feed/ 0 Zpot C https://www.zlux.com/en/zlux-lighting/zpot-c/ https://www.zlux.com/en/zlux-lighting/zpot-c/#respond Tue, 22 Jun 2021 06:33:08 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3678

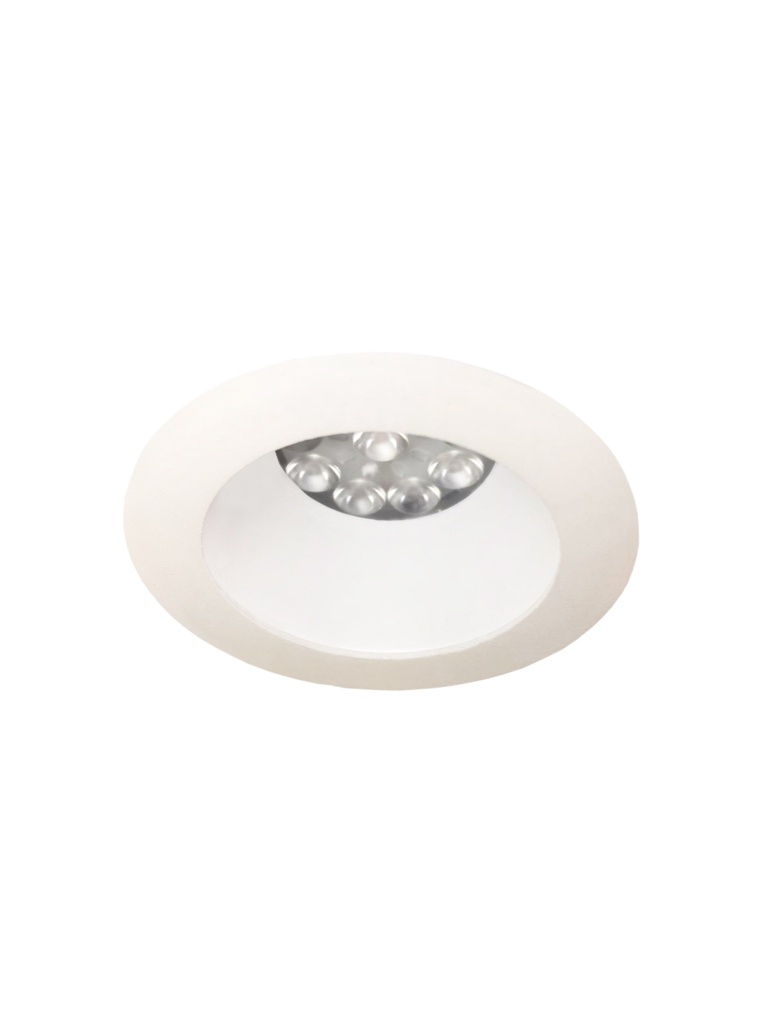

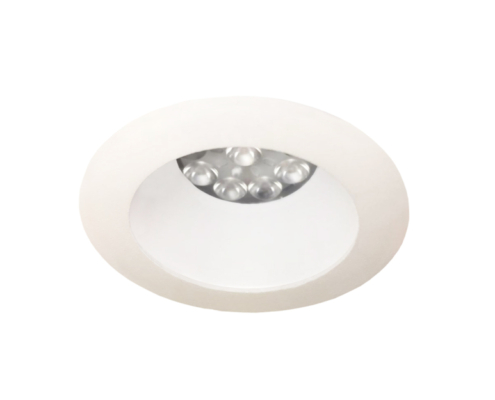

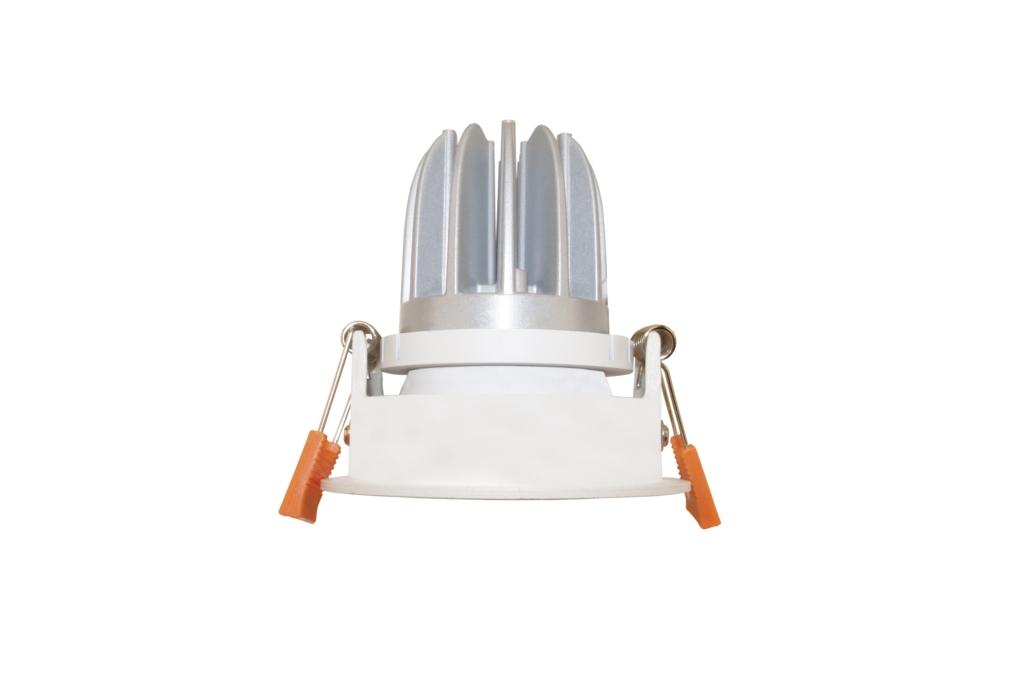

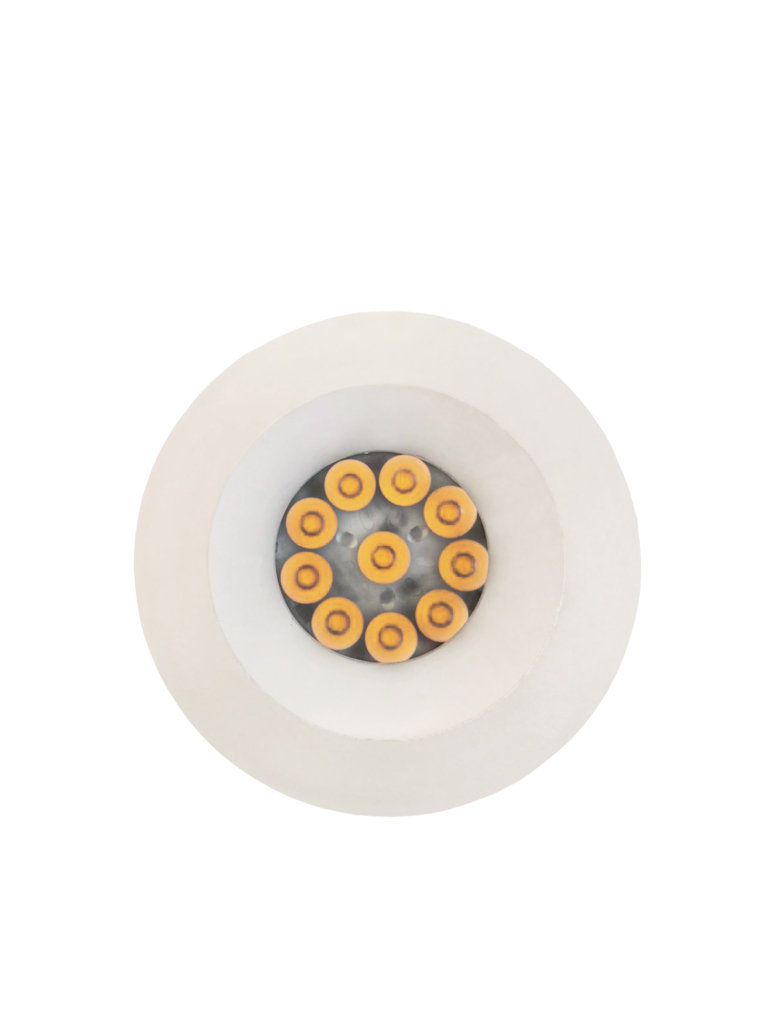

ZPOT C

Downlight

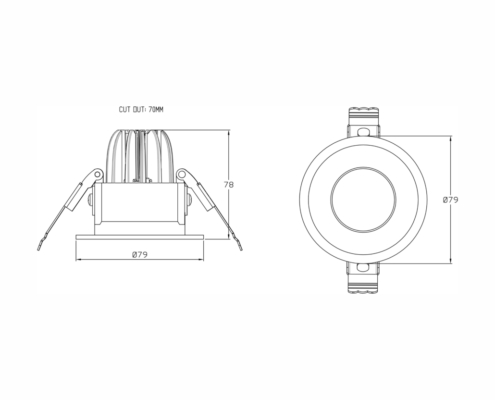

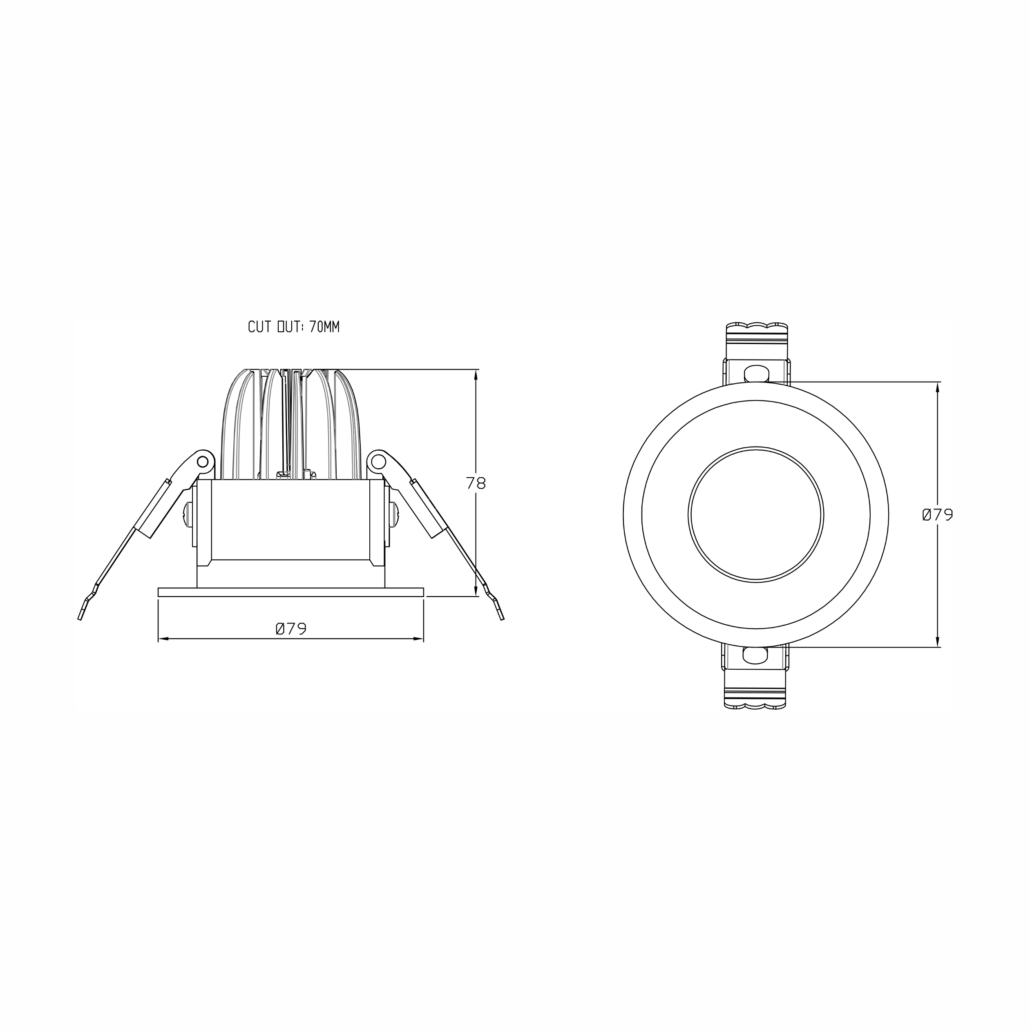

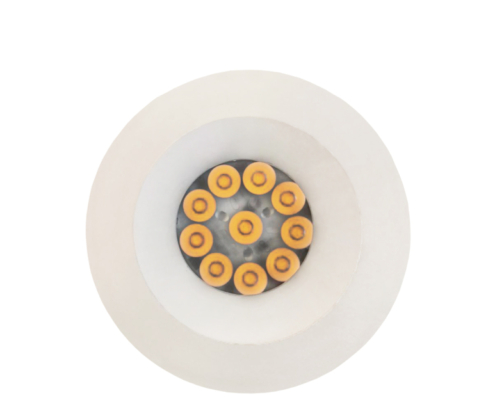

ZPOT C


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out
Source
Color Temperature
ZPOT C
3,5W
350lm
H : 78mm
Ø : 79mm
Ø : 68mm
LED
2700K/3000K/4000K/6500K
5W
500lm
9W
900lm
11W
1100lm

Specification


  • OSRAM Led Modul
  • Aluminum Body
  • Electrostatic Powder Coating
  • Light Angle: 24°-40°-60°
  • Optics : Lens

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-c/feed/ 0 Zpot Vega https://www.zlux.com/en/zlux-lighting/zpot-vega/ https://www.zlux.com/en/zlux-lighting/zpot-vega/#respond Mon, 21 Jun 2021 14:22:38 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3664

Downlight

ZPOT VEGA


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out
Source
Color Temperature
ZPOT VEGA
8W
860lm
H : 120mm
Ø : 125mm
Ø : 110mm
LED
2700K/3000K/4000K/6500K
15W
1613lm

Specification


  • Stainless steel

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • Reflector Angle: 19°,30°,55°,75°
  • IP66

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-vega/feed/ 0 Zpot Blinq L https://www.zlux.com/en/zlux-lighting/zpot-blinq-l/ https://www.zlux.com/en/zlux-lighting/zpot-blinq-l/#respond Mon, 14 Dec 2020 07:41:28 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3116
IMAGE-1

Downlight

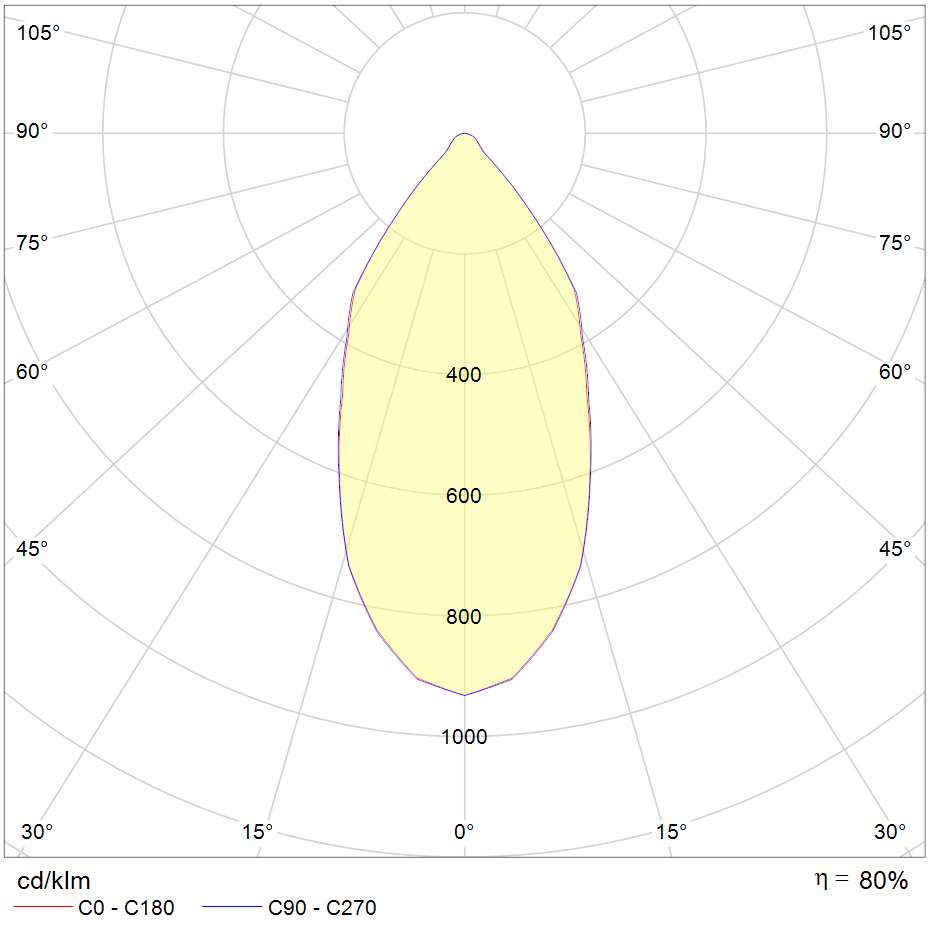

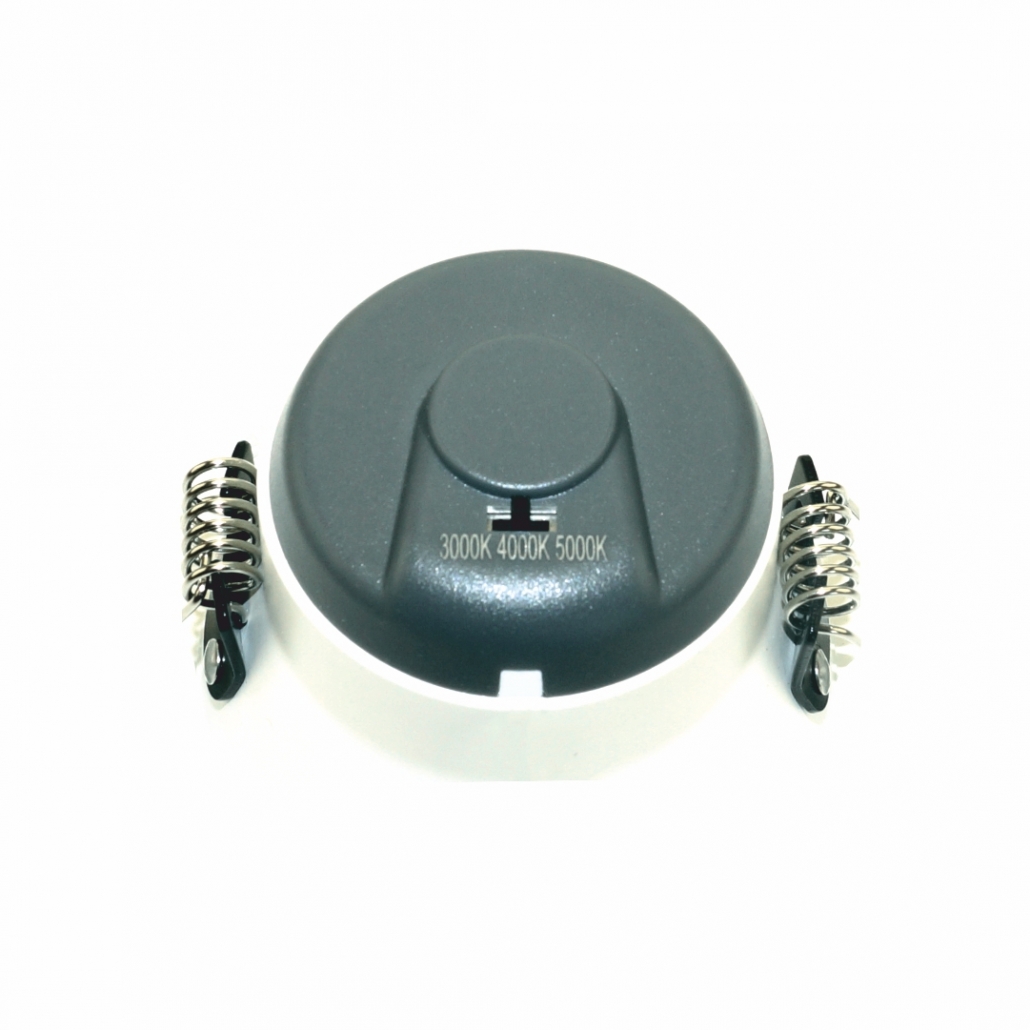

ZPOT BLINQ L


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions

Cut Out (Ø)

Source
Color Temperature

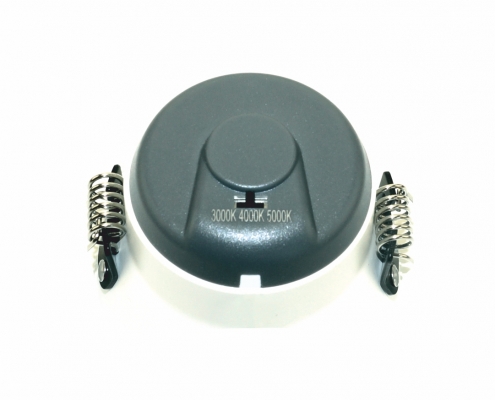

ZPOT BLINQ L
10W
880lm
H : 69mm
Ø : 113mm
90mm
LED
3000K/4000K/5000K

Specification

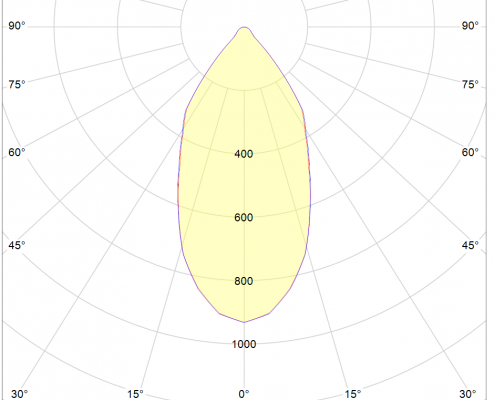

  • Light Angle : 60°
  • Flush Mount
  • Aluminum Body with Electrostatic Paint

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20
  • ON-OFF

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-blinq-l/feed/ 0 Zpot Blinq https://www.zlux.com/en/zlux-lighting/zpot-blinq/ https://www.zlux.com/en/zlux-lighting/zpot-blinq/#respond Thu, 03 Dec 2020 09:12:54 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3092
IMAGE-1

Downlight

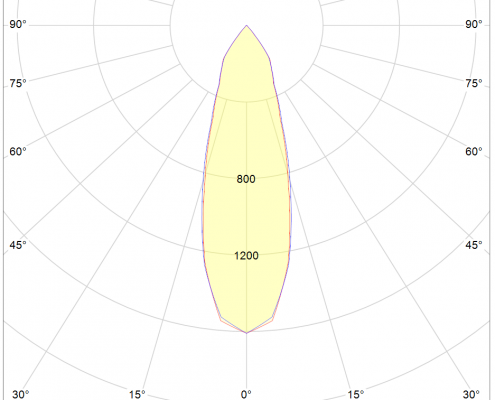

ZPOT BLINQ


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out (Ø)
Source
Color Temperature
ZPOT BLINQ
6W
485lm
H : 79mm
Ø : 81mm
68mm
LED
3000K/4000K

Specification

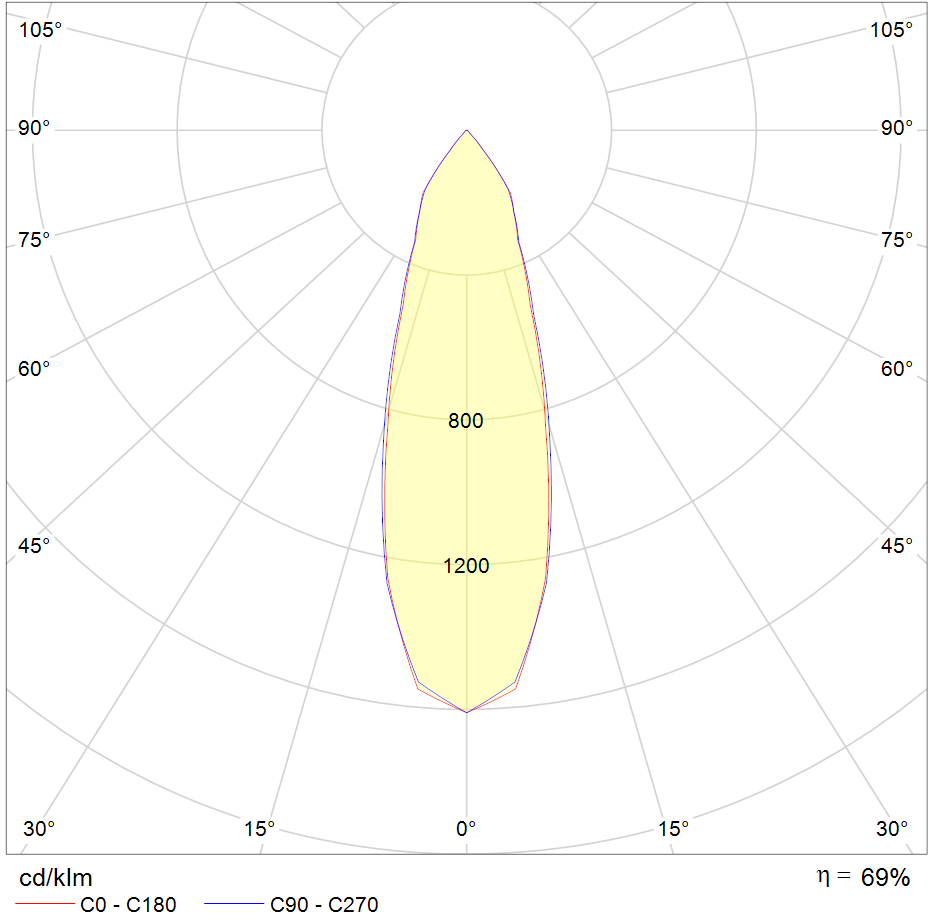

  • Light Angle : 40°
  • Flush Mount
  • Thermal Plastic Body

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20,IP44
  • ON-OFF

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-blinq/feed/ 0 Zpot Deep Box https://www.zlux.com/en/zlux-lighting/zpot-deep-box/ https://www.zlux.com/en/zlux-lighting/zpot-deep-box/#respond Thu, 03 Dec 2020 08:56:55 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3083

Downlight

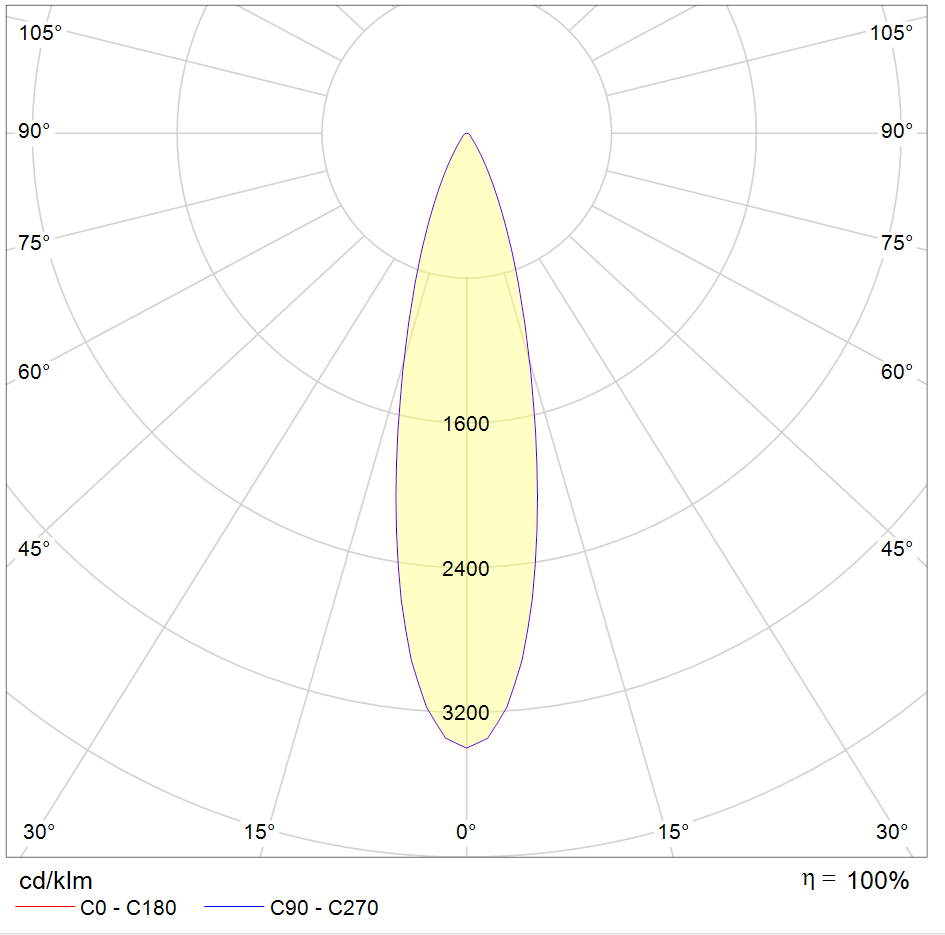

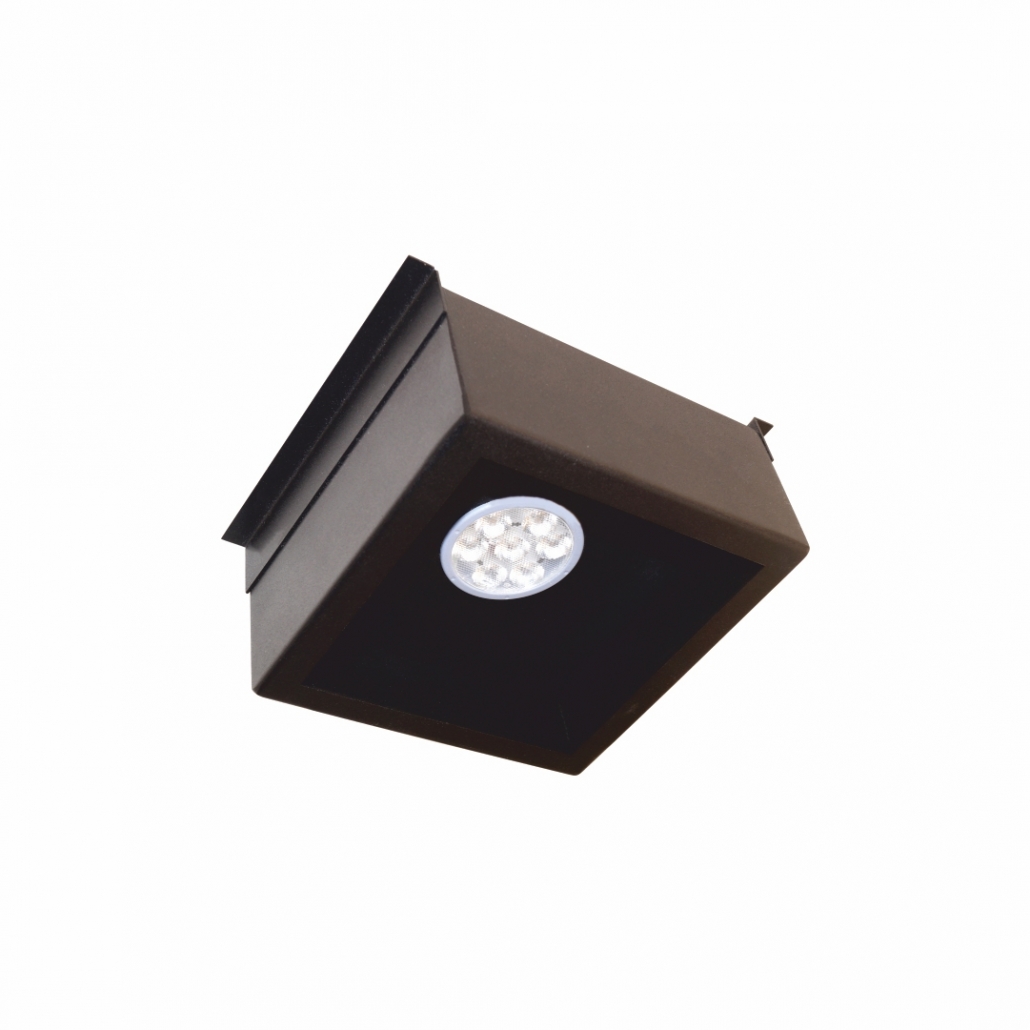

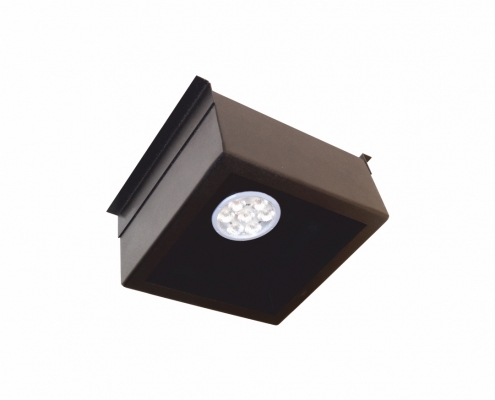

ZPOT DEEP BOX


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature

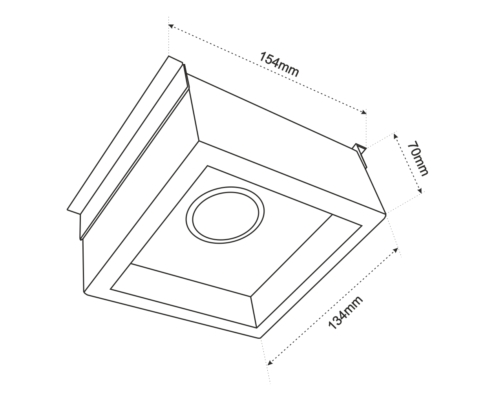

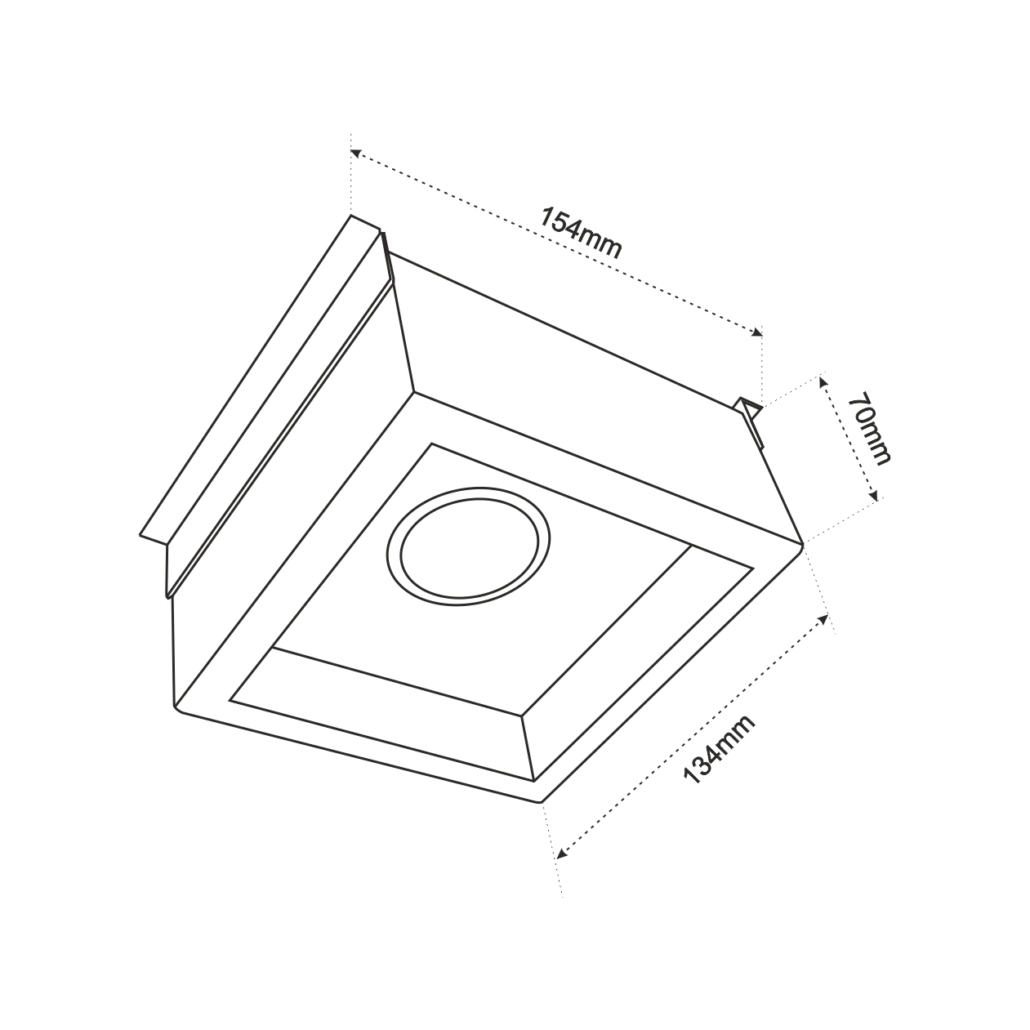

ZPOT DEEP BOX
8.7W
950lm
H : 70mm
L : 154mm
W : 134mm
LED
2700K/3000K/4000K

Specification

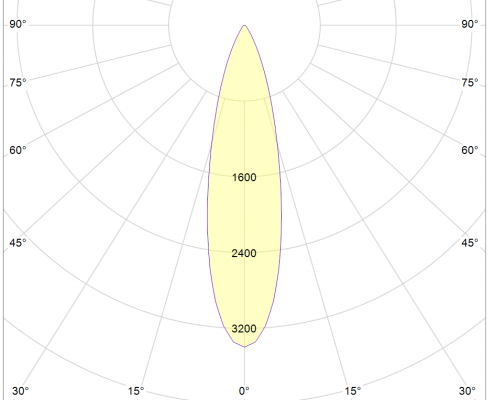

  • Optical Angle : 24°/ 40°/ 60°
  • Recessed Luminaire
  • Metal Body With Electrostatic Paint

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20
  • ON-OFF

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-deep-box/feed/ 0 Zpot Q2 Trimless https://www.zlux.com/en/zlux-lighting/zpot-q2-trimless/ https://www.zlux.com/en/zlux-lighting/zpot-q2-trimless/#respond Mon, 18 May 2020 20:42:12 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1332

Downlight

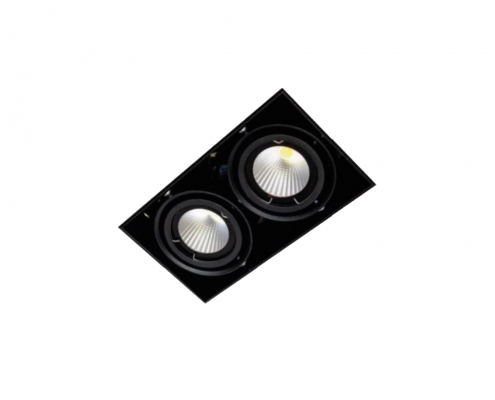

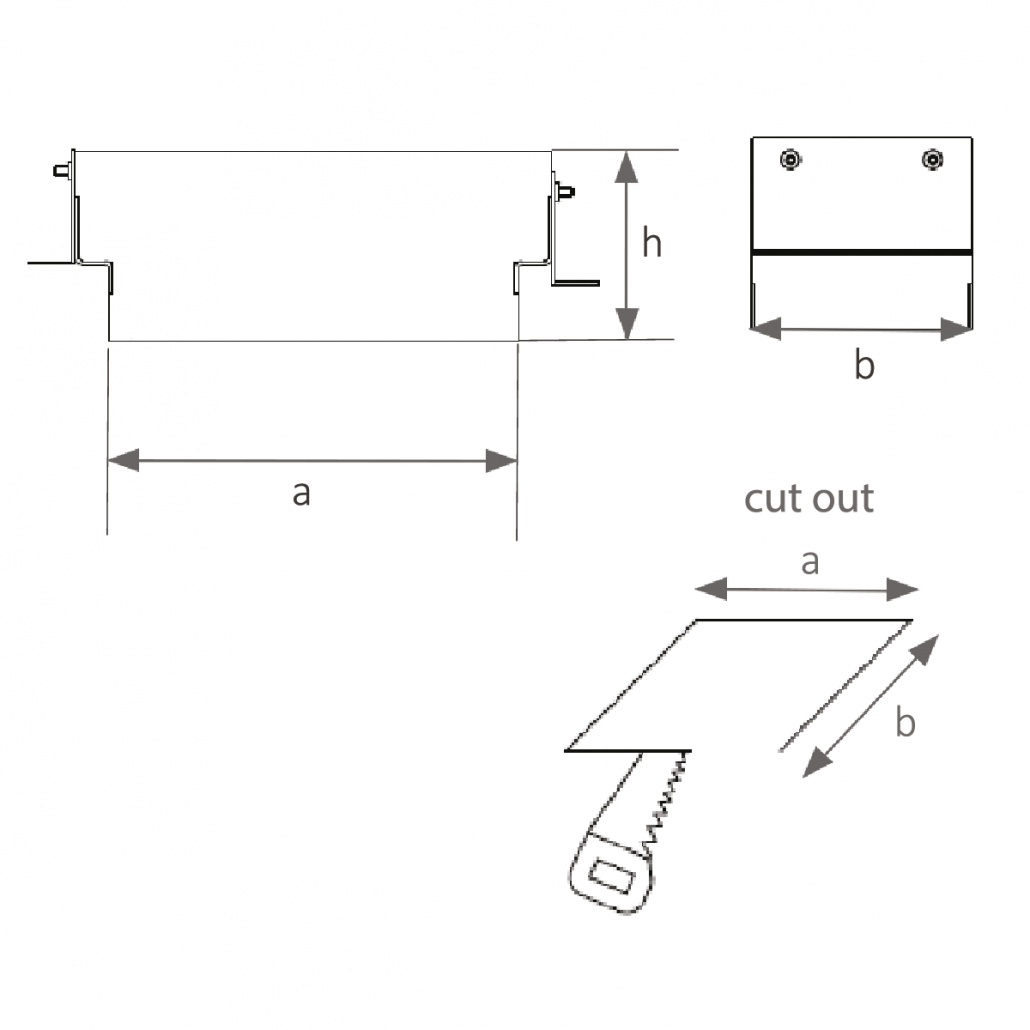

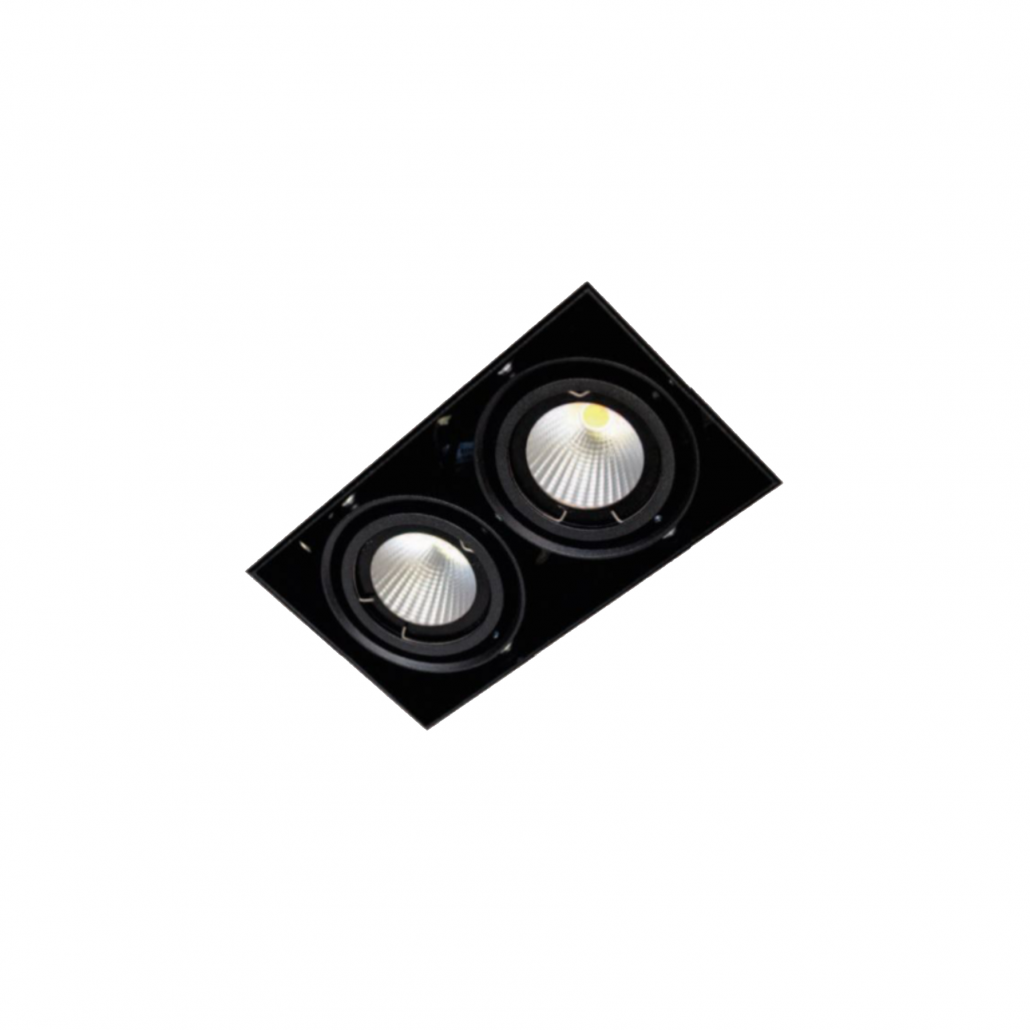

ZPOT Q2 TRIMLESS


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out (Ø)
Source
Color Temperature
ZPOT Q2 TRIMLESS
2x6.6W
2x575lm
H : 82mm
L : 122mm
W : 60mm
62x122mm
LED
2700K/3000K/4000K/6500K
2x10W
2x870lm
2x15W
2x1300lm

Specification


  • Trimless Plaster Kit
  • Recessed Mounting
  • Aluminium Body With Electrostatic Paint
  • Adjustable

Options


  • 1-10V Dimmable, DALI Dimmable
  • IP20,IP44
  • GU10 Lamp
  • Optic: Reflective 25°-40°

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-q2-trimless/feed/ 0 Zpot Q2 https://www.zlux.com/en/zlux-lighting/zpot-q2/ https://www.zlux.com/en/zlux-lighting/zpot-q2/#respond Mon, 18 May 2020 12:20:56 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1325

Downlight

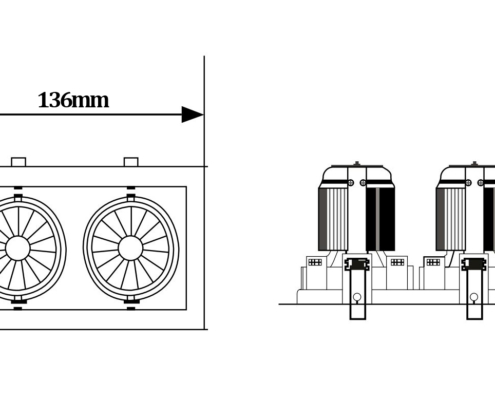

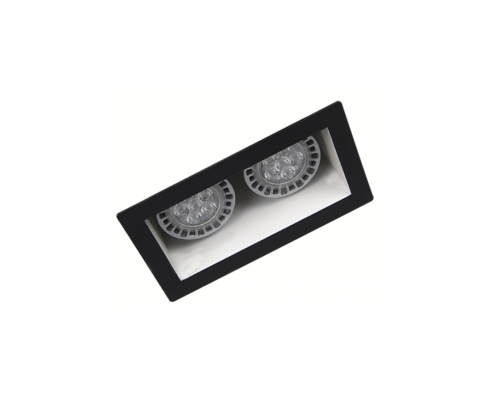

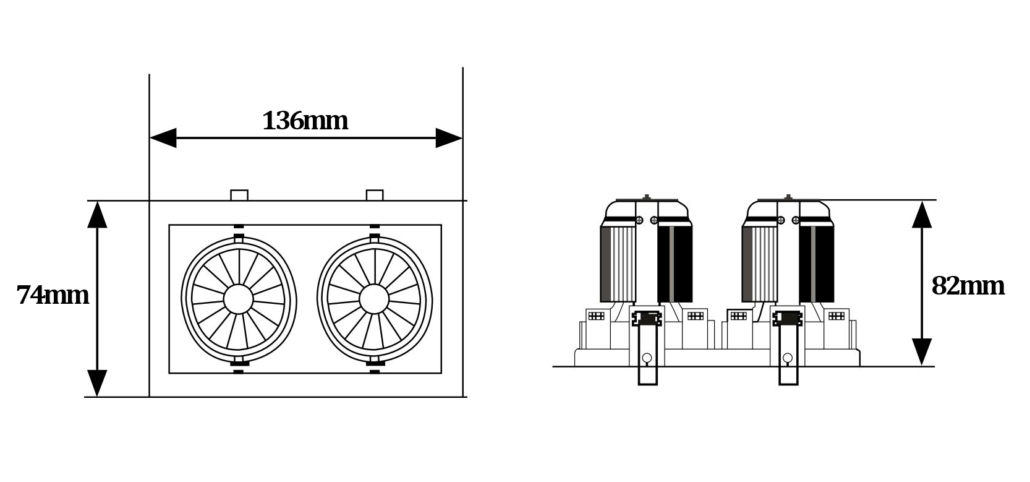

ZPOT Q2


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out (Ø)
Source
Color Temperature
ZPOT Q2
2x6.6W
2x575lm
H : 82mm
L : 136mm
W : 74mm
60x122 mm
LED
2700K/3000K/4000K/6500K
2x10W
2x870lm
2x15W
2x1300lm

Specification


  • Recessed Mounting
  • Aluminium Body With Electrostatic Paint
  • Optics: Frosted Diffuser

Options


  • 1-10V Dimmable, DALI Dimmable
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
