Downlight

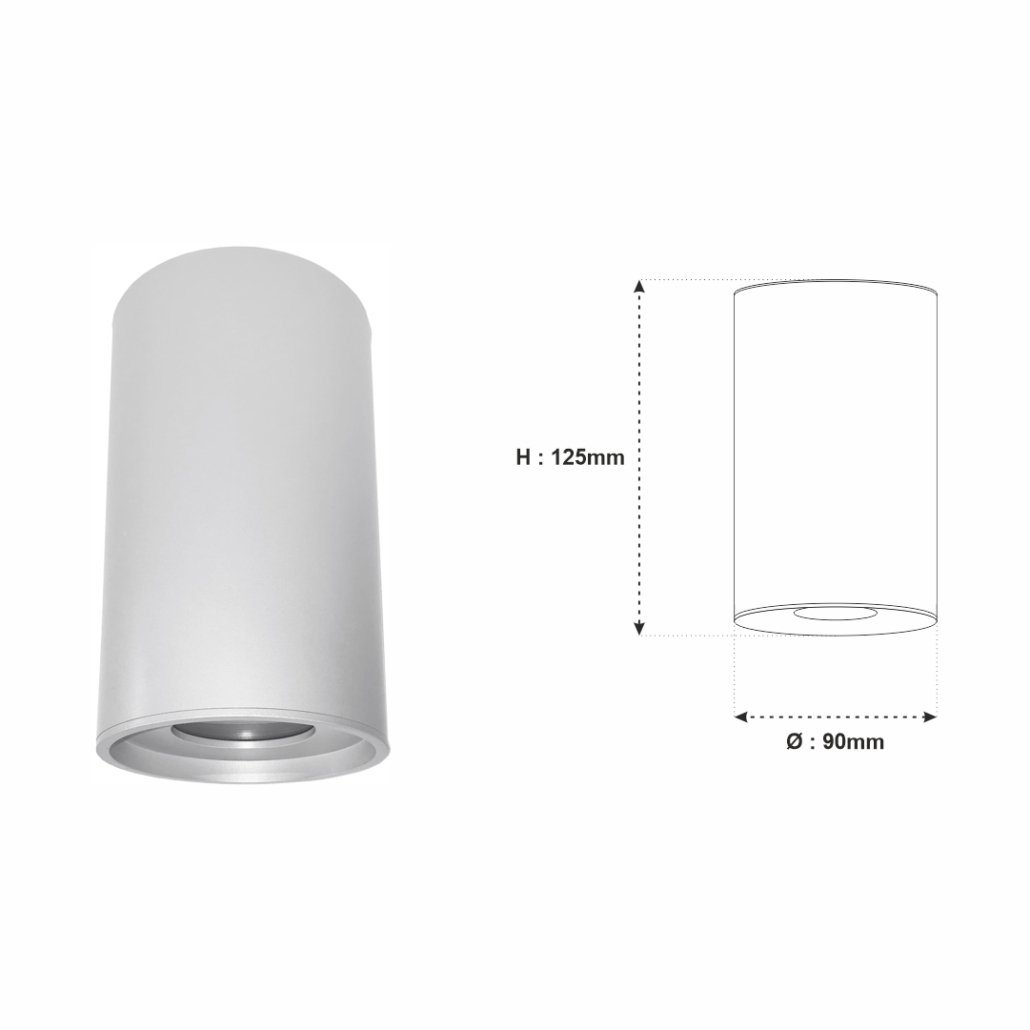

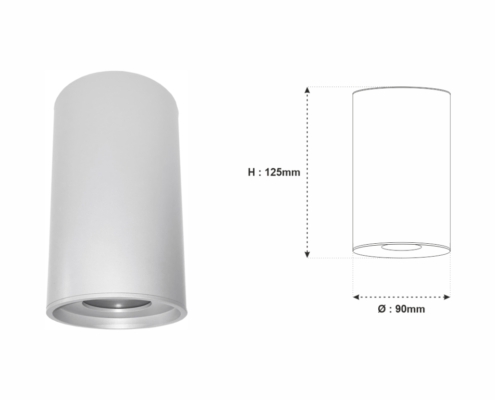

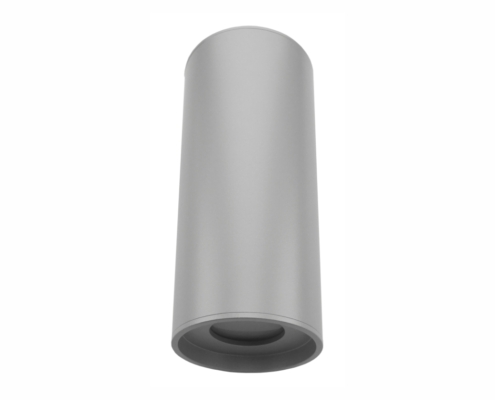

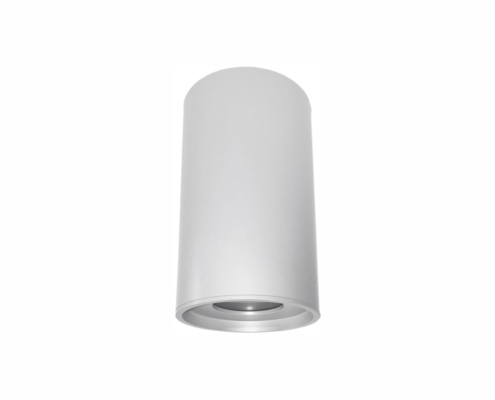

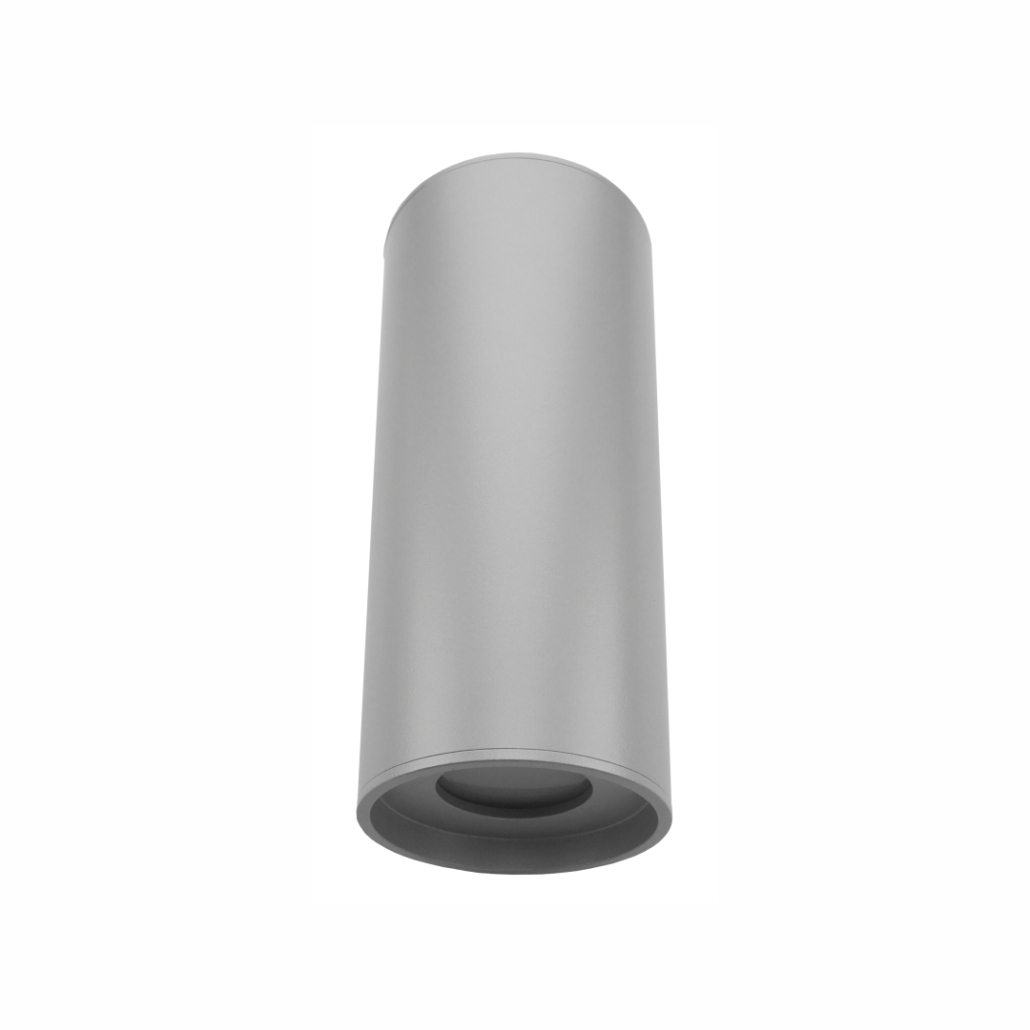

ZPOT PIPE


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT PIPE
6W
660lm

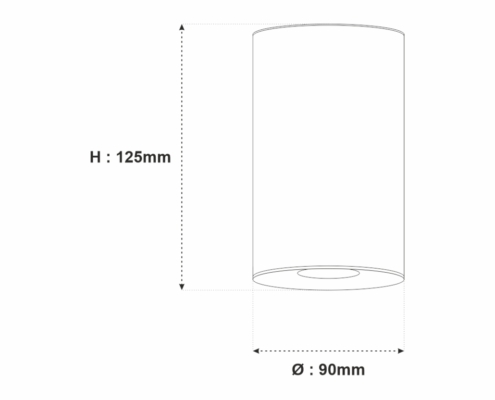

H : 125mm
Ø : 90mm
LED
2700K/3000K/4000K/6500K
9W
990lm

Specification


  • Surface Mounted Luminaire
  • 220-240V 50/60Hz

Options


  • Opal and Transparent Diffuser
  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
    • Dimention of “H” will be incease on emergency lighting case.
  • Light Angle: 15°- 30°- 40°
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-pipe/feed/ 0 Zpot Compact Winn https://www.zlux.com/en/zlux-lighting/zpot-compact-winn/ https://www.zlux.com/en/zlux-lighting/zpot-compact-winn/#respond Mon, 21 Jun 2021 12:11:53 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3651

Downlight

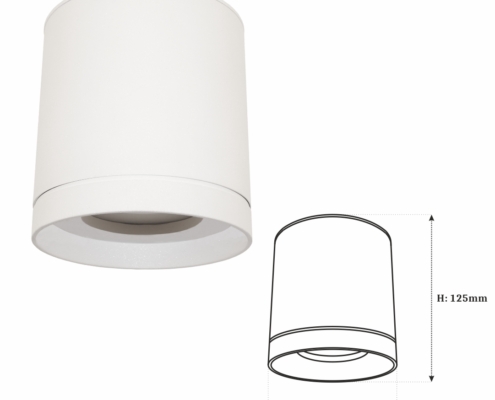

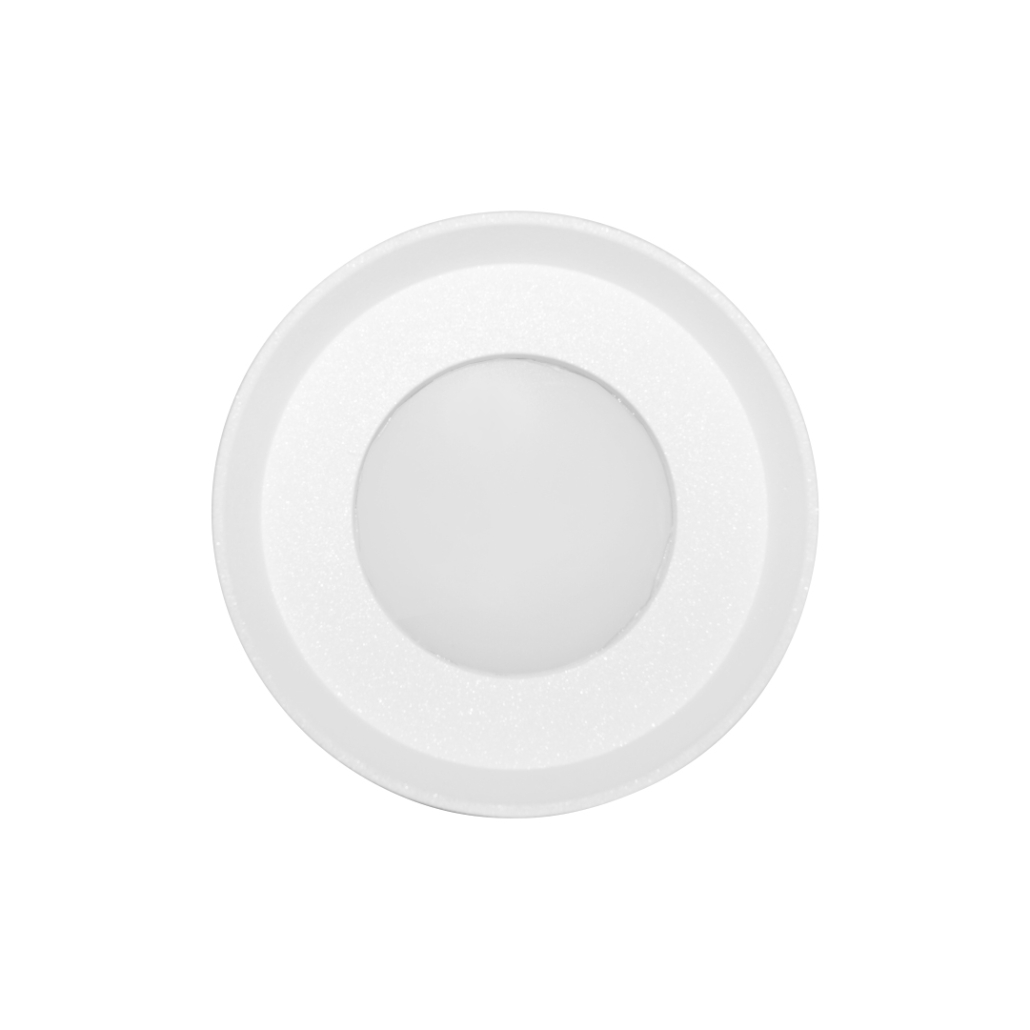

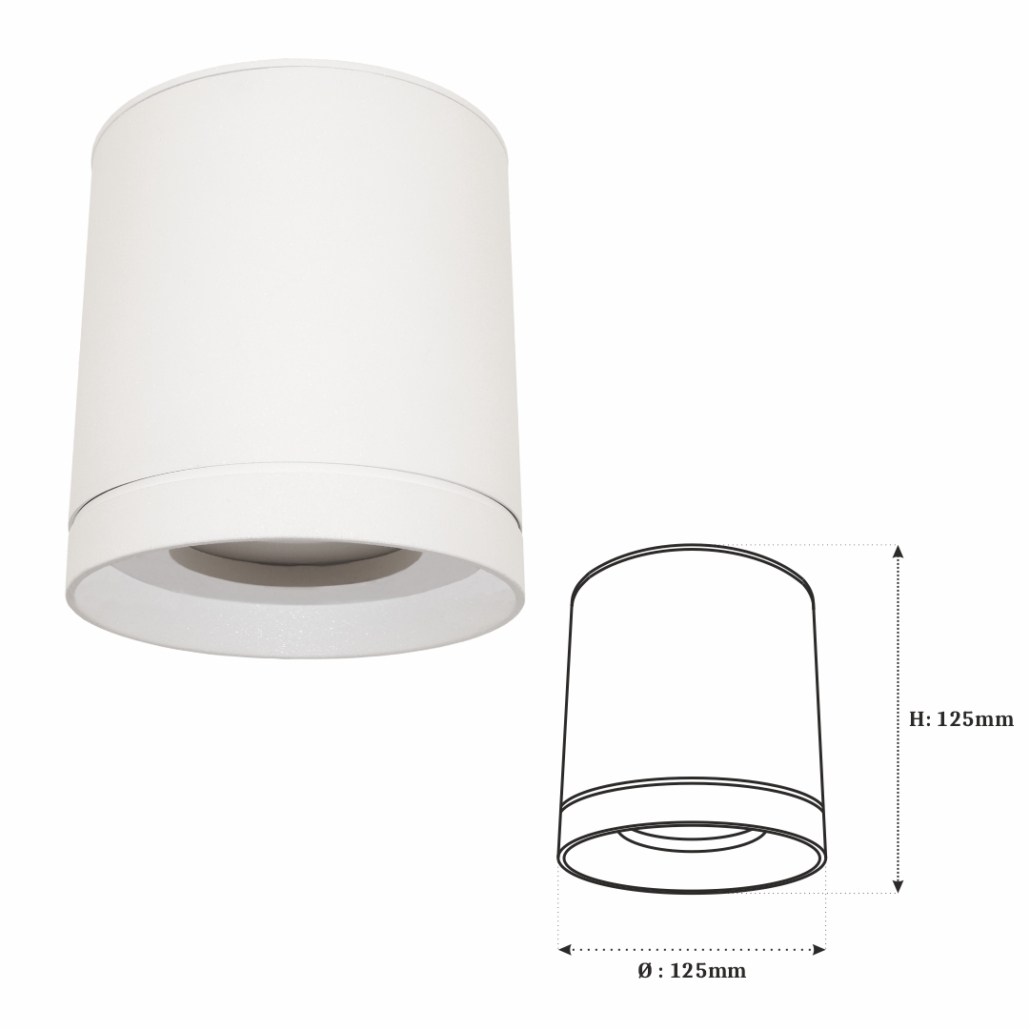

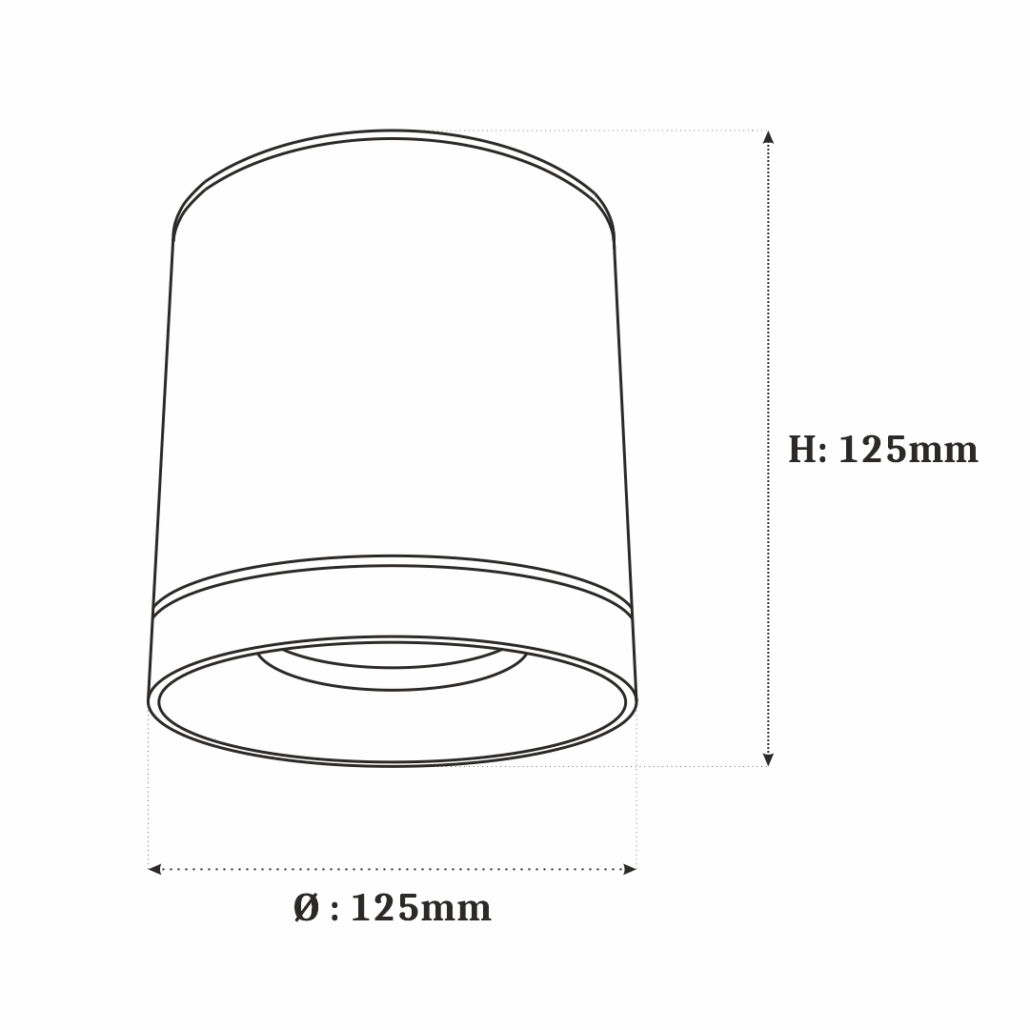

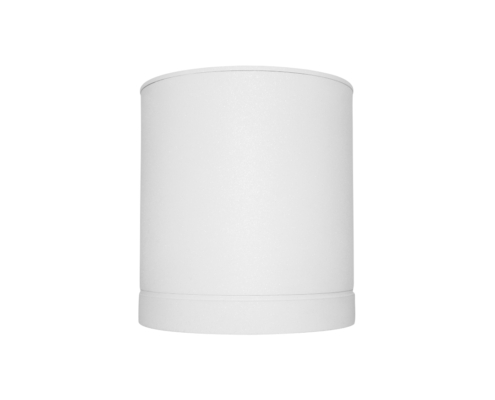

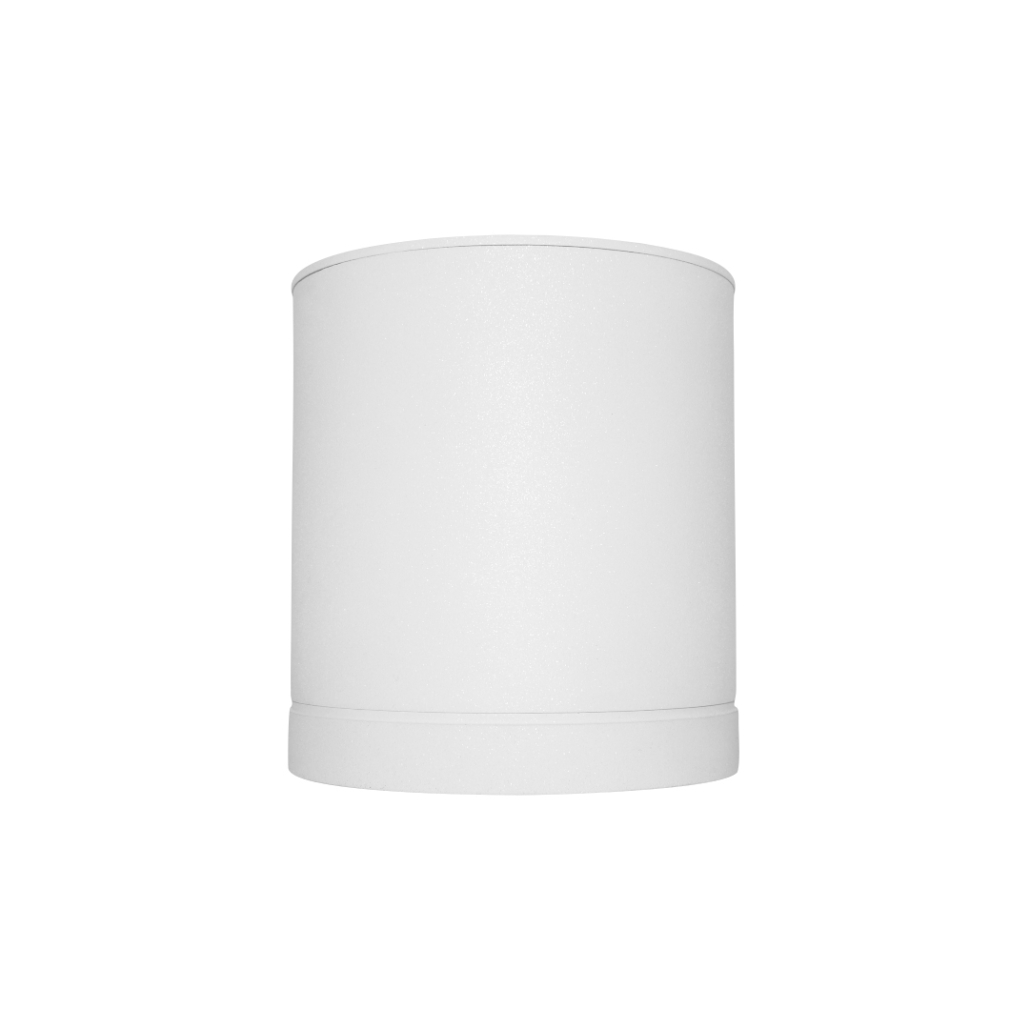

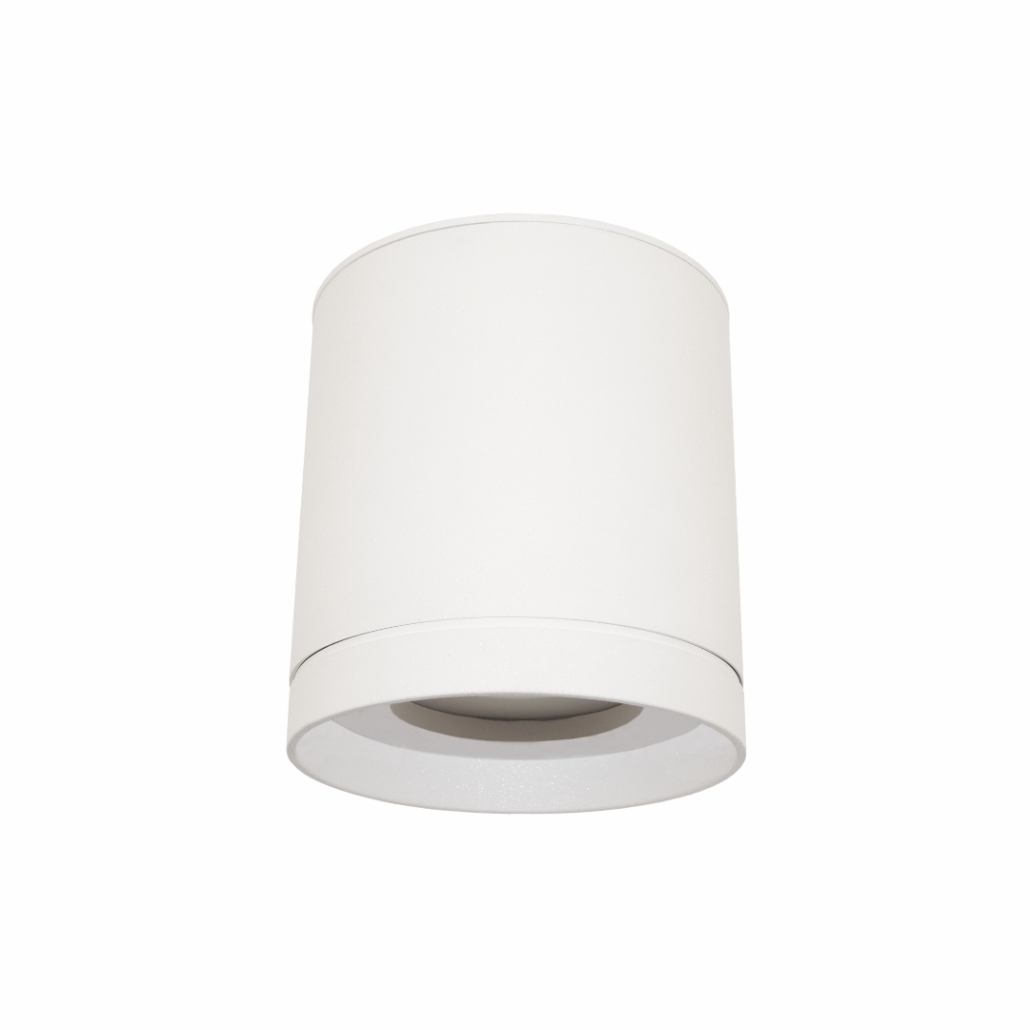

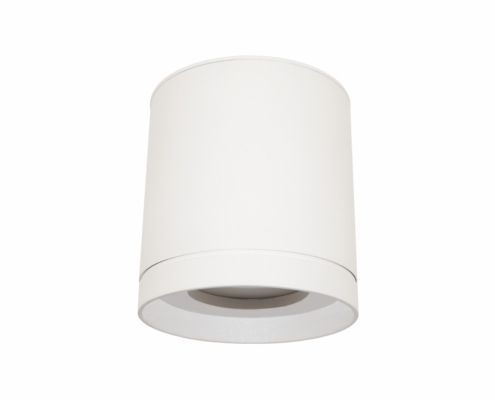

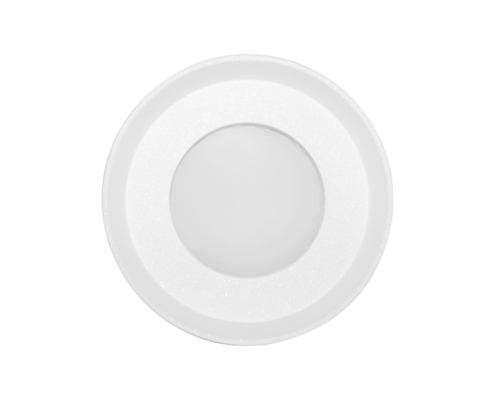

ZPOT COMPACT WINN


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Reflector Angles
Source
Color Temperature
ZPOT COMPACT WINN
10W
1160lm

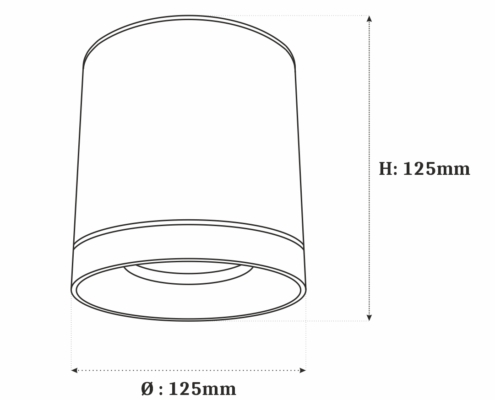

H : 125mm
Ø : 125mm
19°,30°,55°,75°
LED
2700K/3000K/4000K/6500K
14W
1600lm
19W
2200lm

Specification


  • Surface Mounted Luminaire
  • Optic: Reflective
  • Opal Diffuser
  • 220-240V 50/60Hz

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
    • Dimention of “H” will be incease on emergency lighting case.
  • IP20,IP44,IP65

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-compact-winn/feed/ 0 Zpot Q2 S https://www.zlux.com/en/zlux-lighting/zpot-q2-s/ https://www.zlux.com/en/zlux-lighting/zpot-q2-s/#respond Wed, 20 May 2020 07:59:25 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1383

Downlight

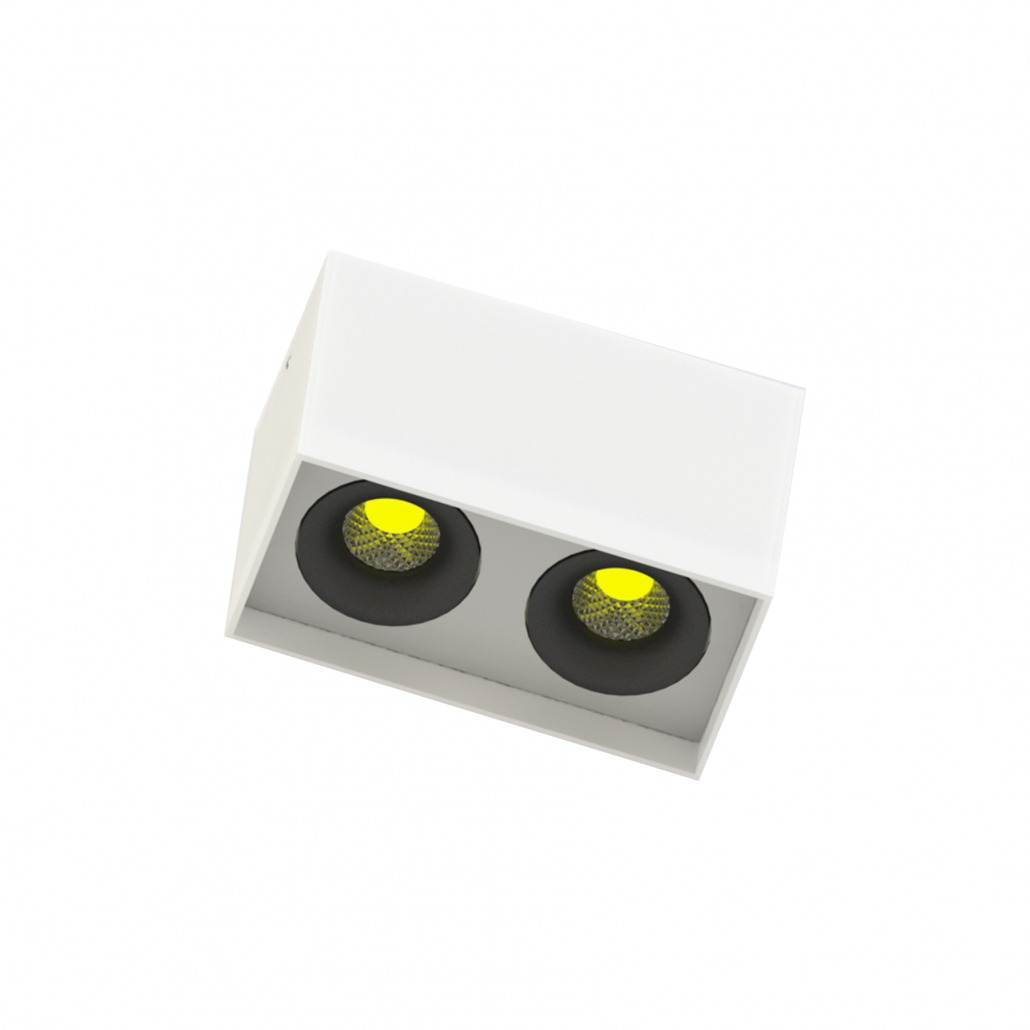

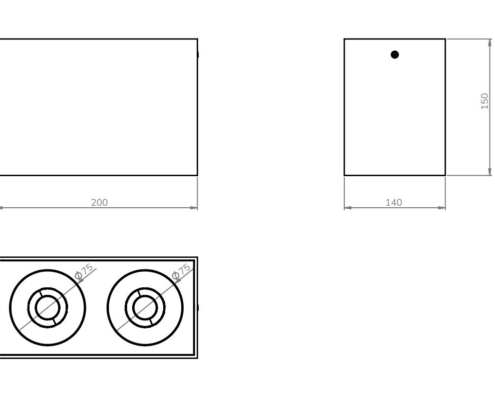

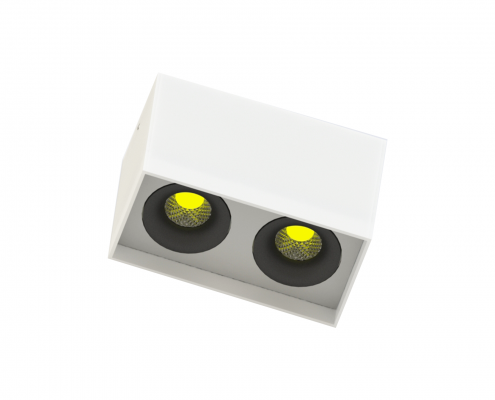

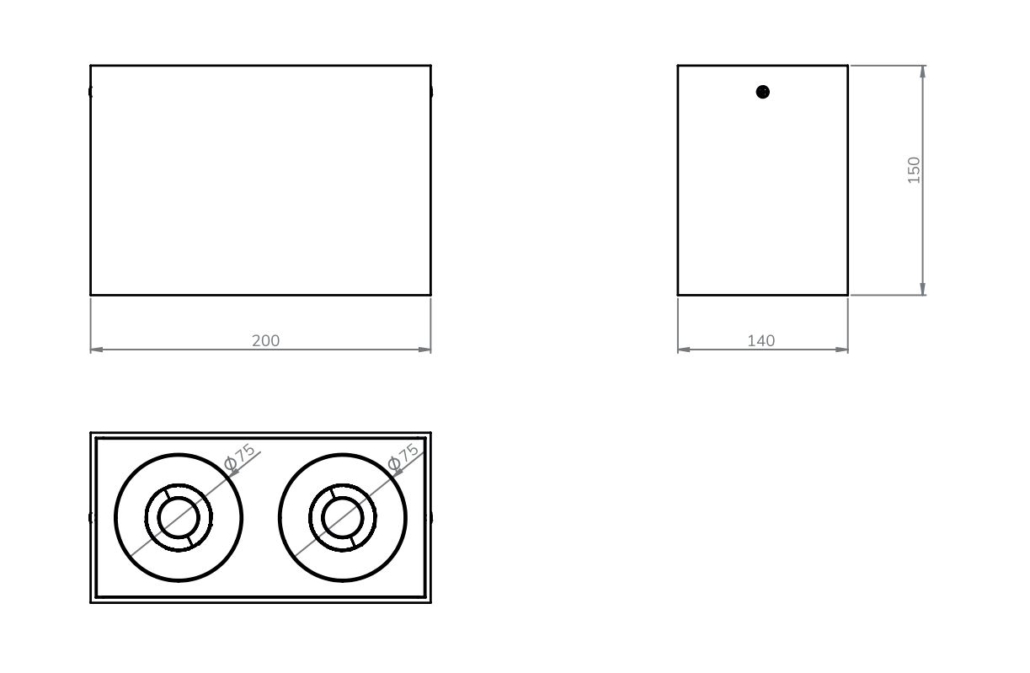

ZPOT Q2 S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT Q2 S
2x7W
2x630lm
H : 150mm
L : 200mm
W : 140mm
LED
2700K/3000K/4000K/6500K
2x10W
2x900lm
2x14W
2x1250lm

Specification


  • Surface Mounting
  • Optic: Reflective

Options


  • 1-3 Hour Emergency Kit
  • IP44
  • 1-10V Ayarlanabilir, DALI Kısılabilir

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-q2-s/feed/ 0 Zpot Q1 S https://www.zlux.com/en/zlux-lighting/zpot-q1-s/ https://www.zlux.com/en/zlux-lighting/zpot-q1-s/#respond Wed, 20 May 2020 07:52:56 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1376

Downlight

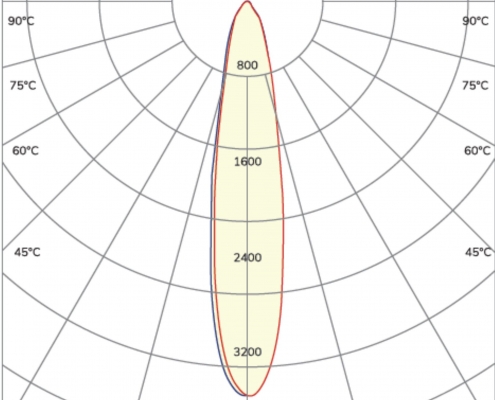

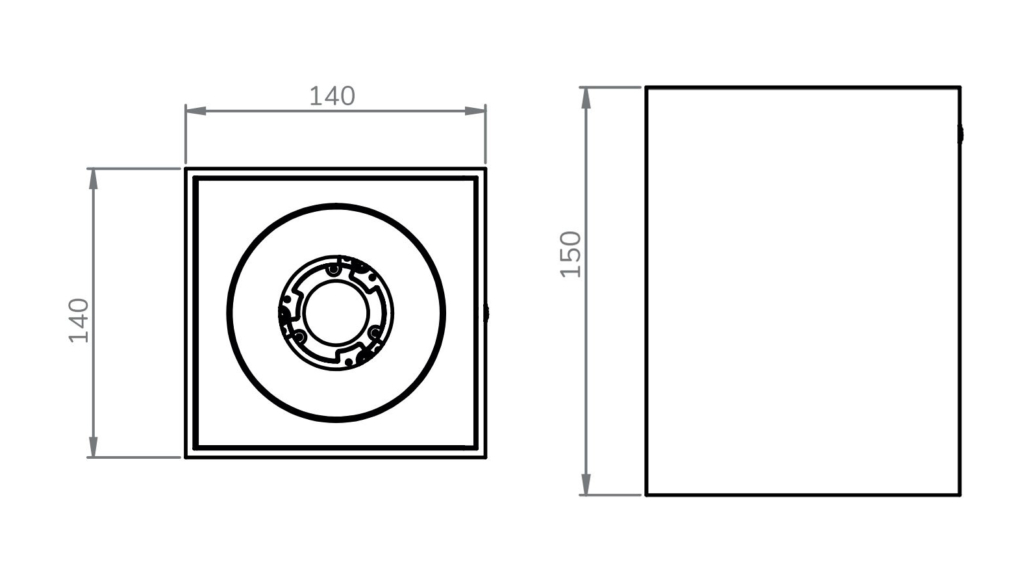

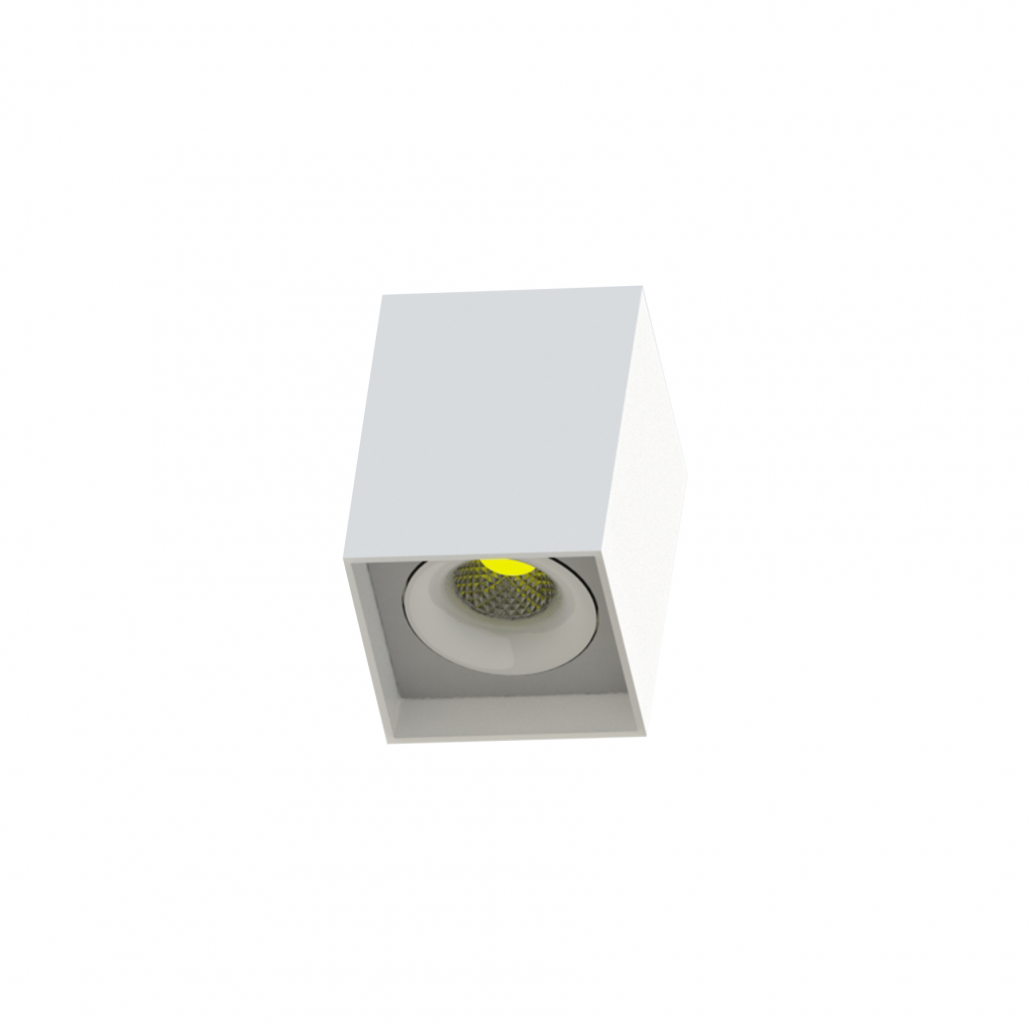

ZPOT Q1 S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT Q1 S
7W
630lm
H : 150mm
L : 140mm
W : 140mm
LED
2700K/3000K/4000K/6500K
10W
900lm
14W
1250lm

Specification


  • Surface Mounting
  • Optic: Reflective

Options


  • 1-3 Hour Emergency Kit
  • IP44
  • 1-10V Ayarlanabilir, DALI Kısılabilir

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-q1-s/feed/ 0 Zpot Pro C4 S https://www.zlux.com/en/zlux-lighting/zpot-pro-c4-s/ https://www.zlux.com/en/zlux-lighting/zpot-pro-c4-s/#respond Wed, 20 May 2020 05:55:57 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1370

Downlight

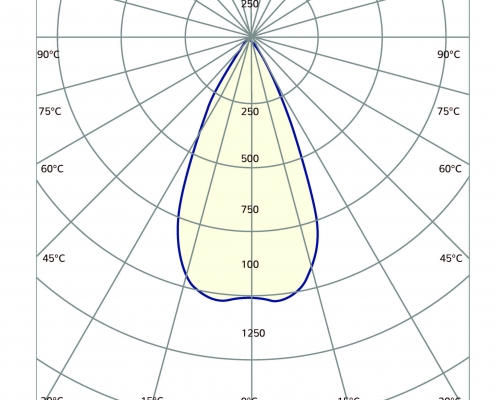

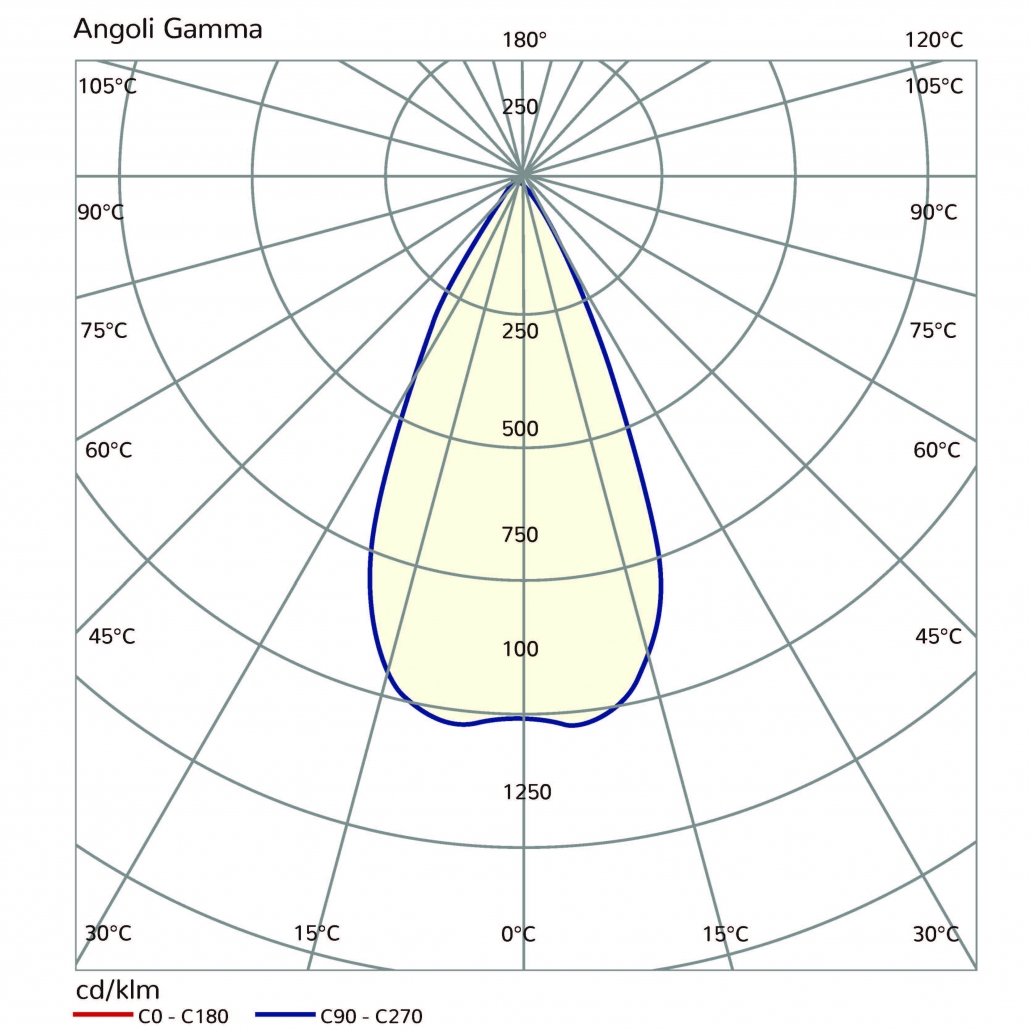

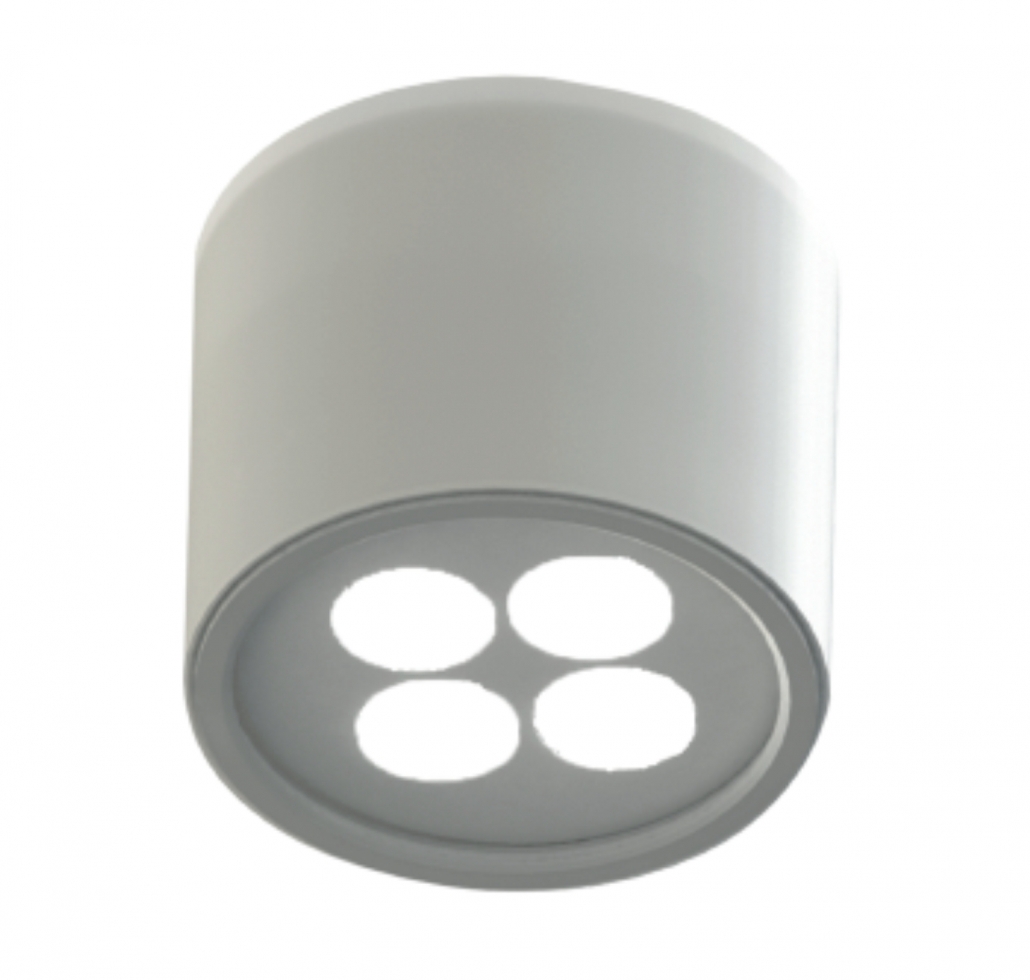

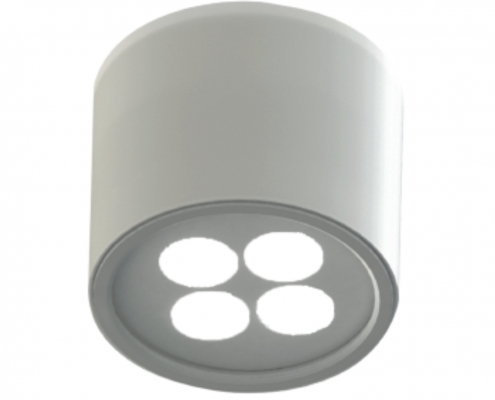

ZPOT PRO C4 S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT PRO C4 S
24W
2800lm

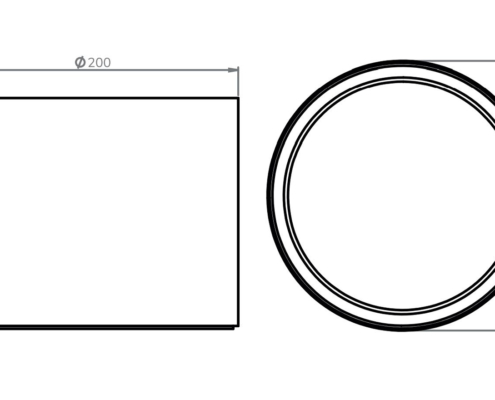

H : 163mm
Ø : 200mm
LED
2700K/3000K/4000K/6500K
30W
3500lm
38W
4430lm
57W
6640lm

Specification


  • Surface Mounted Luminaires
  • Optic: Reflective

Options


  • 1-10V Dimmable, DALI Dimmable
  • IP20,IP44
  • 1-3 Hour Emergency Kit
  • Beam Angle: 15°,40°
  • Surface Mounting Case

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-pro-c4-s/feed/ 0 Zpot Pro C1 S https://www.zlux.com/en/zlux-lighting/zpot-pro-c1-s/ https://www.zlux.com/en/zlux-lighting/zpot-pro-c1-s/#respond Wed, 20 May 2020 05:32:14 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1361

Downlight

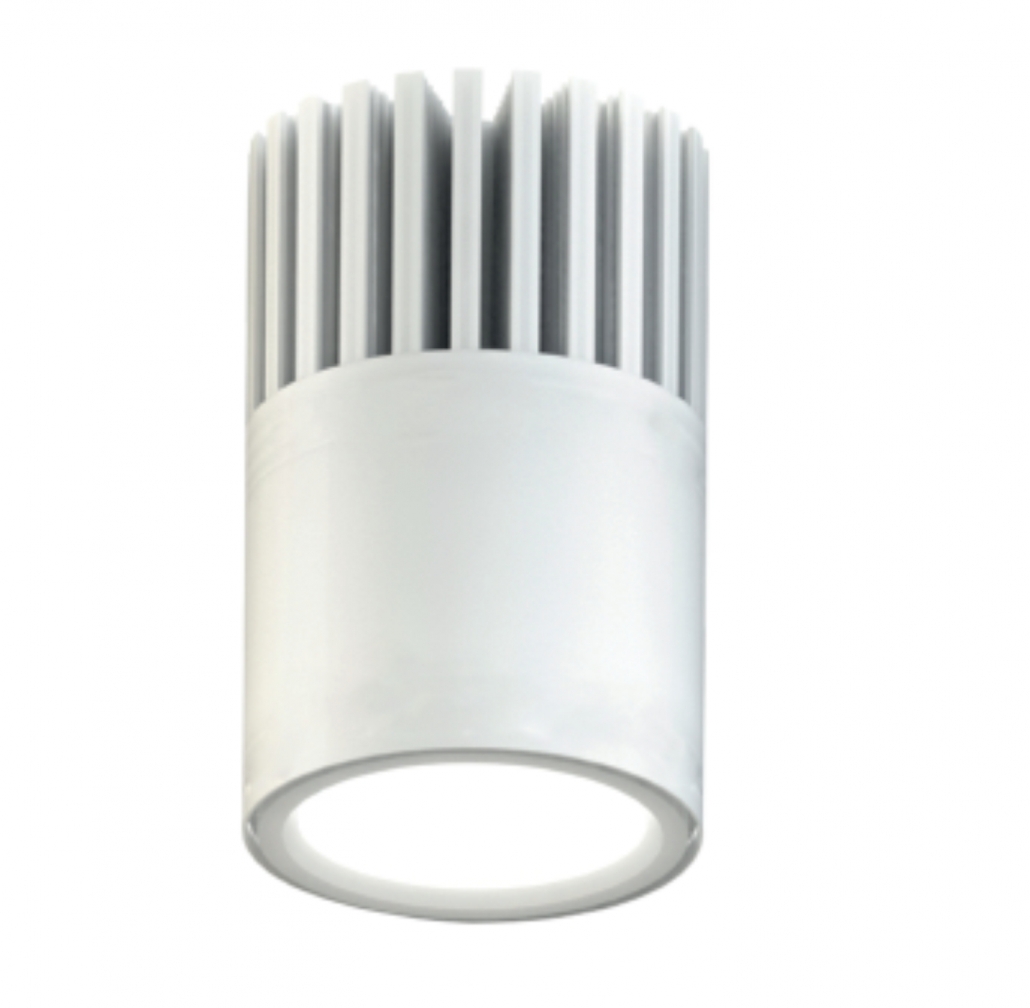

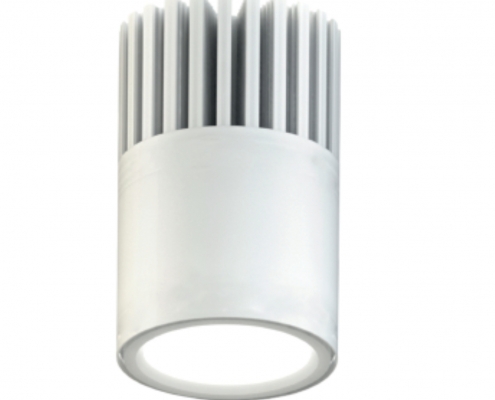

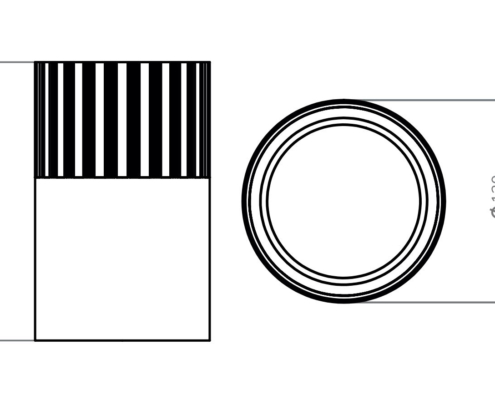

ZPOT PRO C1 S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT PRO C1 S
24W
2830lm

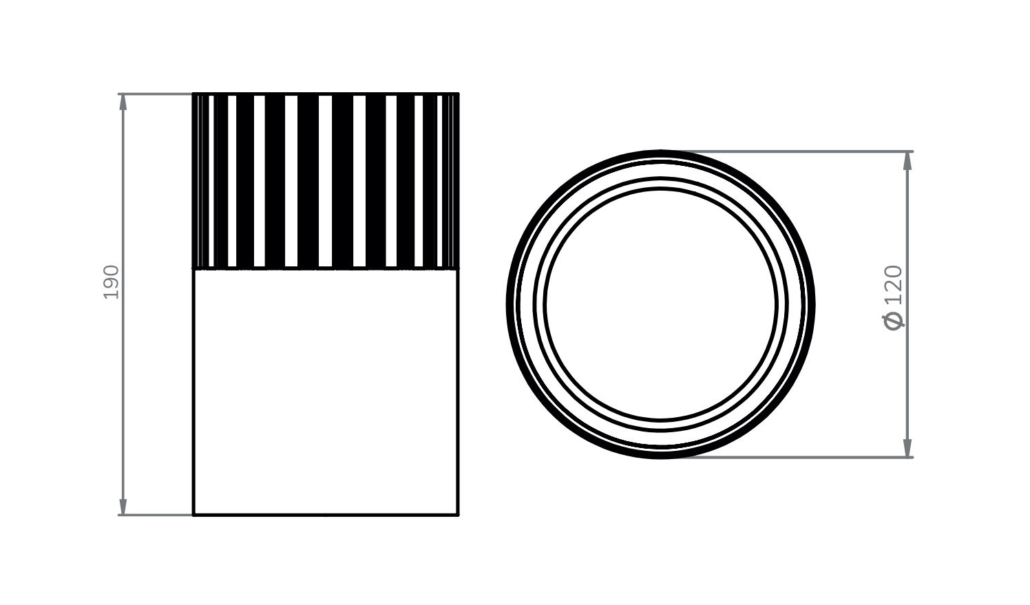

H : 190mm
Ø : 120mm
LED
2700K/3000K/4000K/6500K
38W
4480lm

Specification


  • Surface Mounted Luminaires
  • Optic: Reflective

Options


  • 1-10V Dimmable, DALI Dimmable
  • IP20,IP44
  • 1-3 Hour Emergency Kit
  • Beam Angle: 55°

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-pro-c1-s/feed/ 0 Zpot Wagi https://www.zlux.com/en/zlux-lighting/zpot-wagi/ https://www.zlux.com/en/zlux-lighting/zpot-wagi/#respond Mon, 18 May 2020 21:13:33 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1353

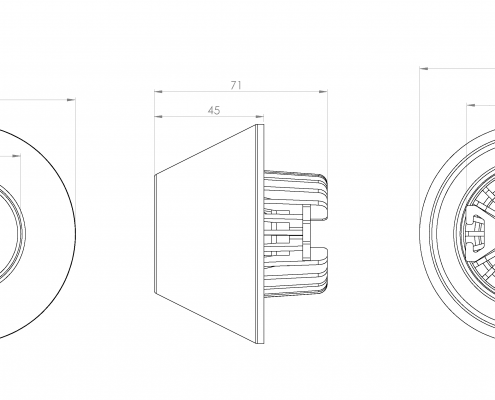

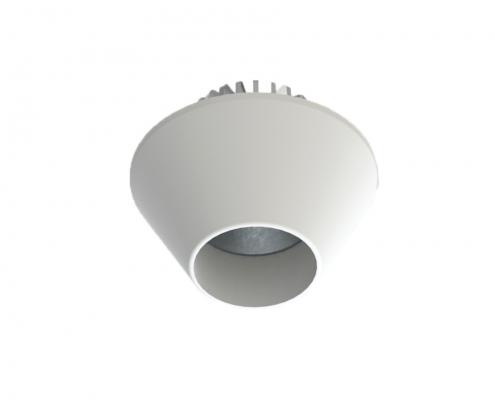

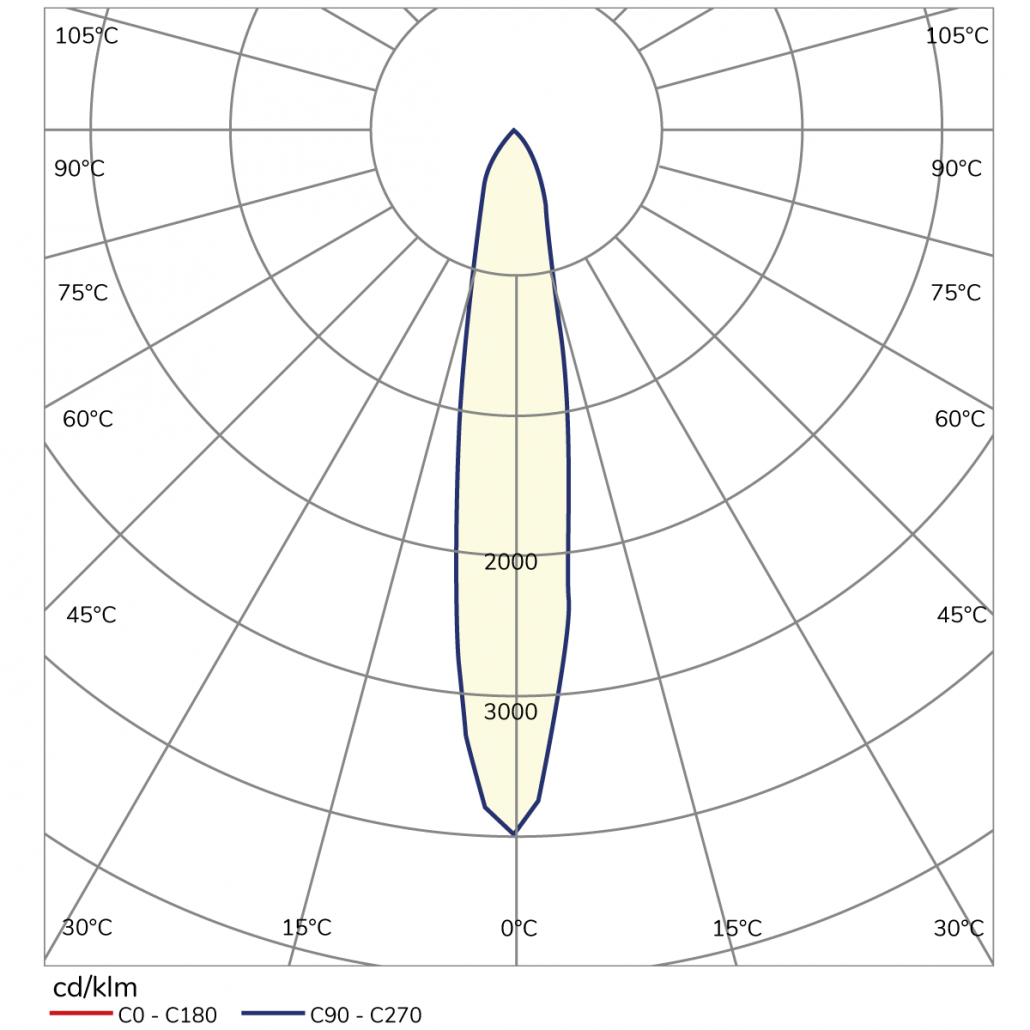

Zpot-Wagi

Downlight

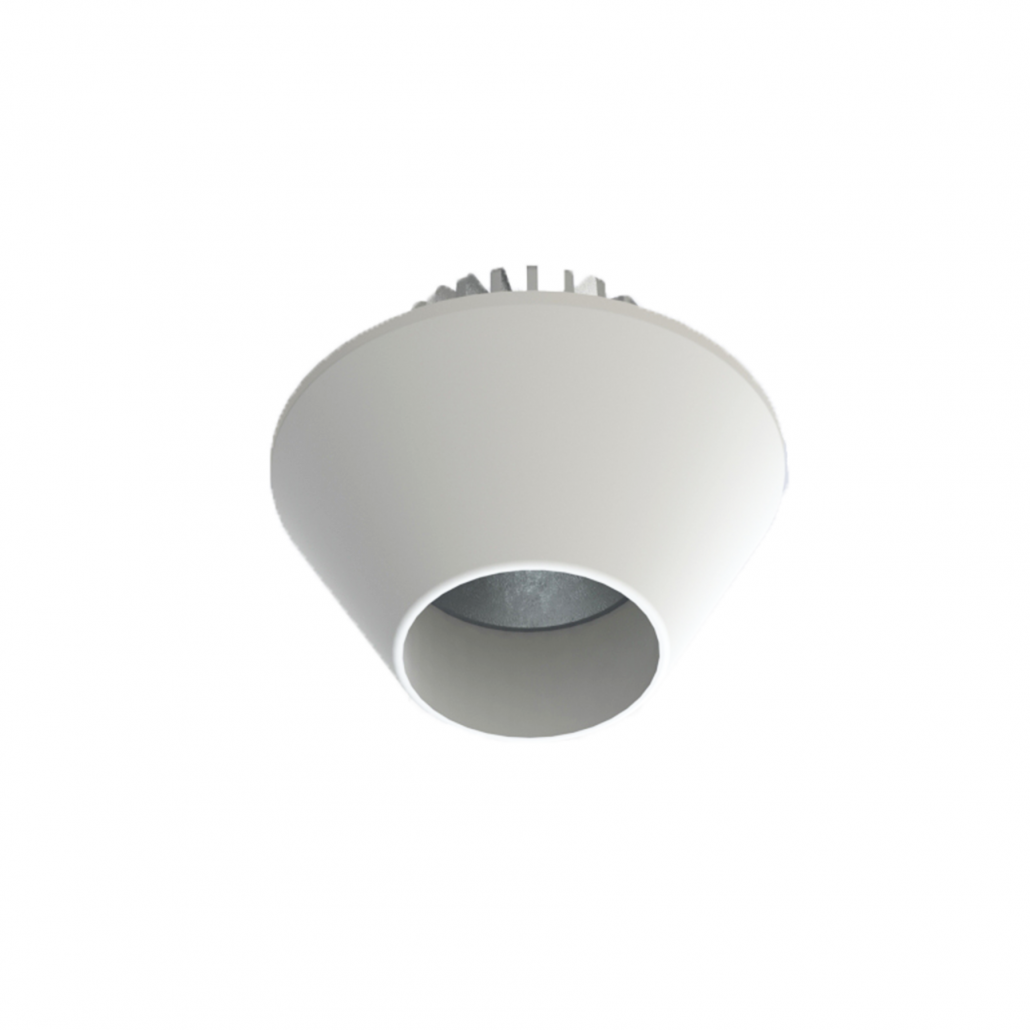

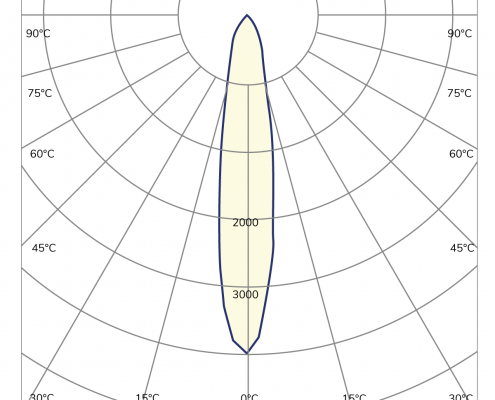

ZPOT WAGI


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Cut Out (Ø)
Source
Color Temperature
ZPOT WAGI
3W
270lm
H : 71mm
Ø : 90mm
70mm
LED
2700K/3000K/4000K/6500K
7W
630lm

Specification


  • Surface Mounting
  • Optic: Reflective

Options


  • 1-3 Hour Emergency Kit
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-wagi/feed/ 0 Zpot Bold S https://www.zlux.com/en/zlux-lighting/zpot-bold-s/ https://www.zlux.com/en/zlux-lighting/zpot-bold-s/#respond Mon, 18 May 2020 21:05:01 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1346

Downlight

ZPOT BOLD S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT BOLD S
10W
800lm
H : 163mm
Ø : 200m
LED
2700K/3000K/4000K/6500K
15W
1200lm
20W
1600lm
25W
2000lm
33W
2600lm

Specification


  • Surface Mounting
  • Body: Anodized Aluminium
  • Optic: Opal Diffuser

Options


  • 1-10V Dimmable, DALI Dimmable
  • IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-bold-s/feed/ 0 Zpot C1 S https://www.zlux.com/en/zlux-lighting/zpot-c1-s/ https://www.zlux.com/en/zlux-lighting/zpot-c1-s/#respond Mon, 18 May 2020 20:53:22 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1338

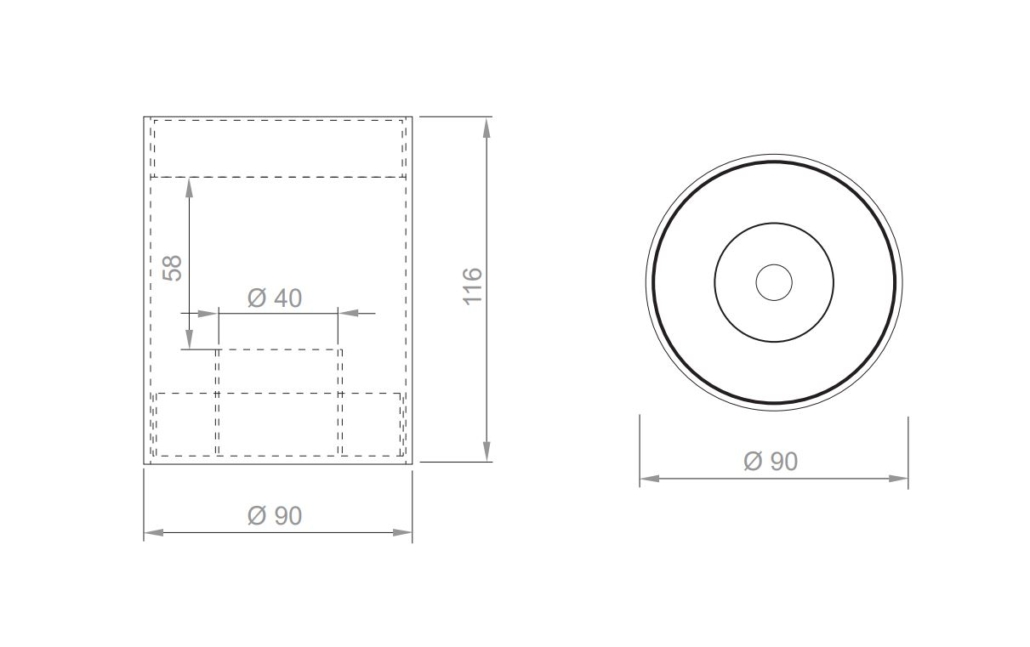

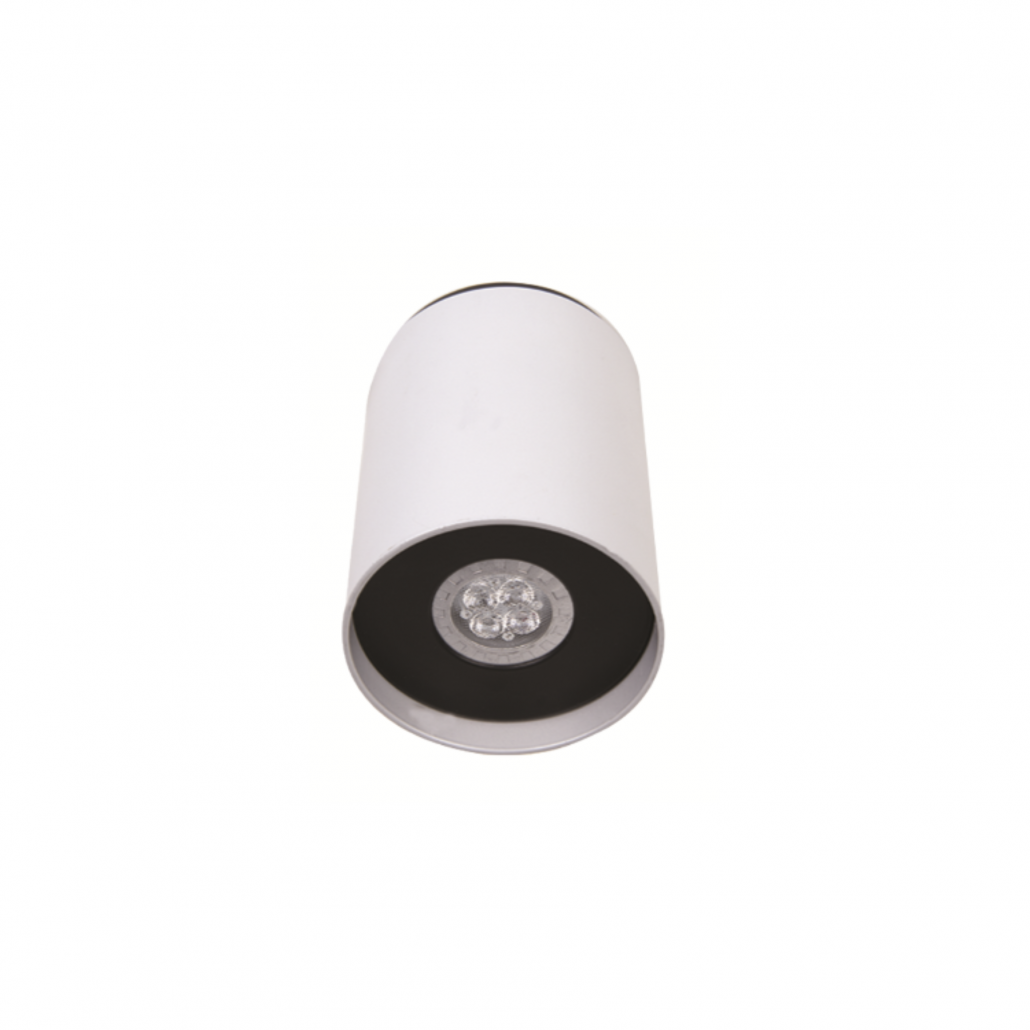

Zpot-C1-S

Downlight

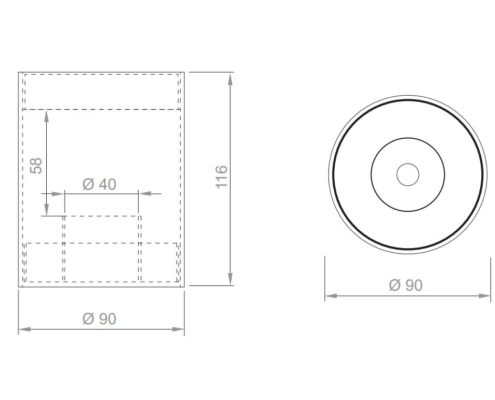

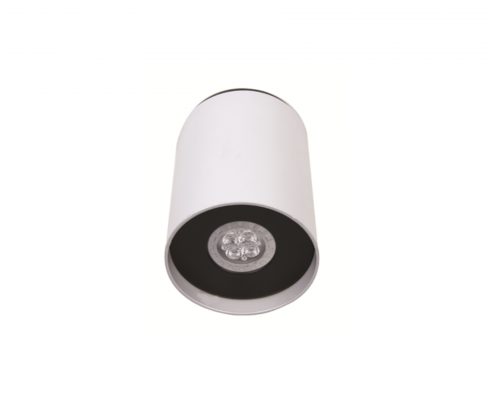

ZPOT C1 S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT C1 S
4W
280lm
H : 116mm
Ø : 90mm
GU10 LED
2700K/3000K/4000K/6500K
5W
350lm
6W
420lm

Specification


  • Surface Mounting

Options


  • IP20
  • Beam Angle: 36°

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-c1-s/feed/ 0 ZPot Look https://www.zlux.com/en/zlux-lighting/zpot-look/ https://www.zlux.com/en/zlux-lighting/zpot-look/#respond Tue, 10 Mar 2020 11:04:25 +0000 http://www.zlux.com/en/?post_type=portfolio&p=576

Downlight

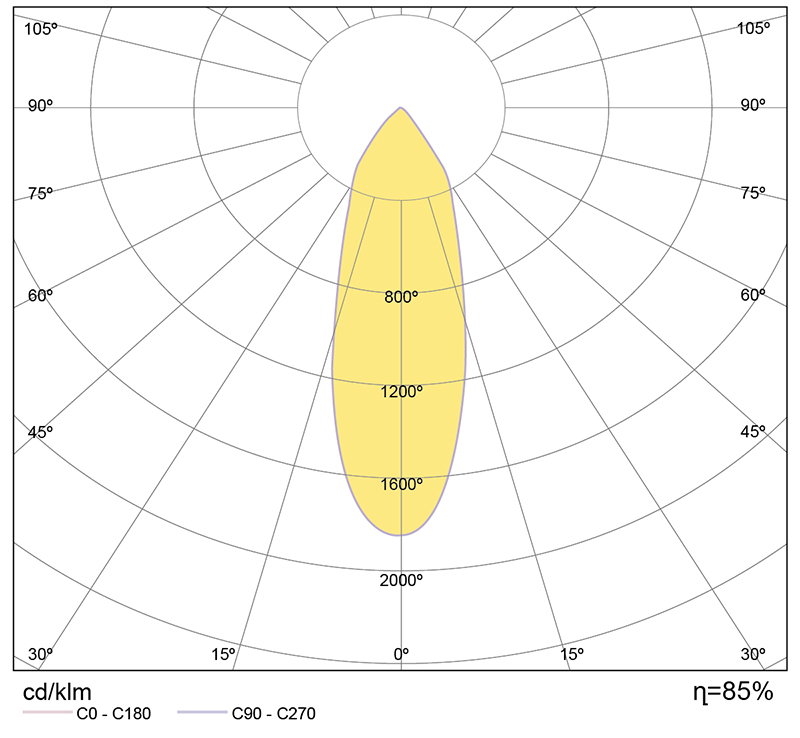

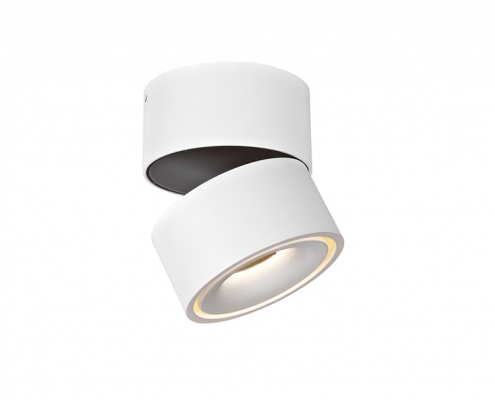

ZPOT LOOK


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT LOOK C1-S
9,3W
1051lm
H : 103mm
Ø : 100mm
LED
2700K/3000K/4000K/6500K

Specification


  • 350° rotational
  • 90° rotational spot head
  • Can be fixed on wall and ceiling.
  • Body Colors: Black, Black & White, Gray & Black

Options


  • 1-10V Dim, DALI Dim
  • 1-3 Hour Emergency Kit
  • IP20 , IP44

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
