IMAGE-1

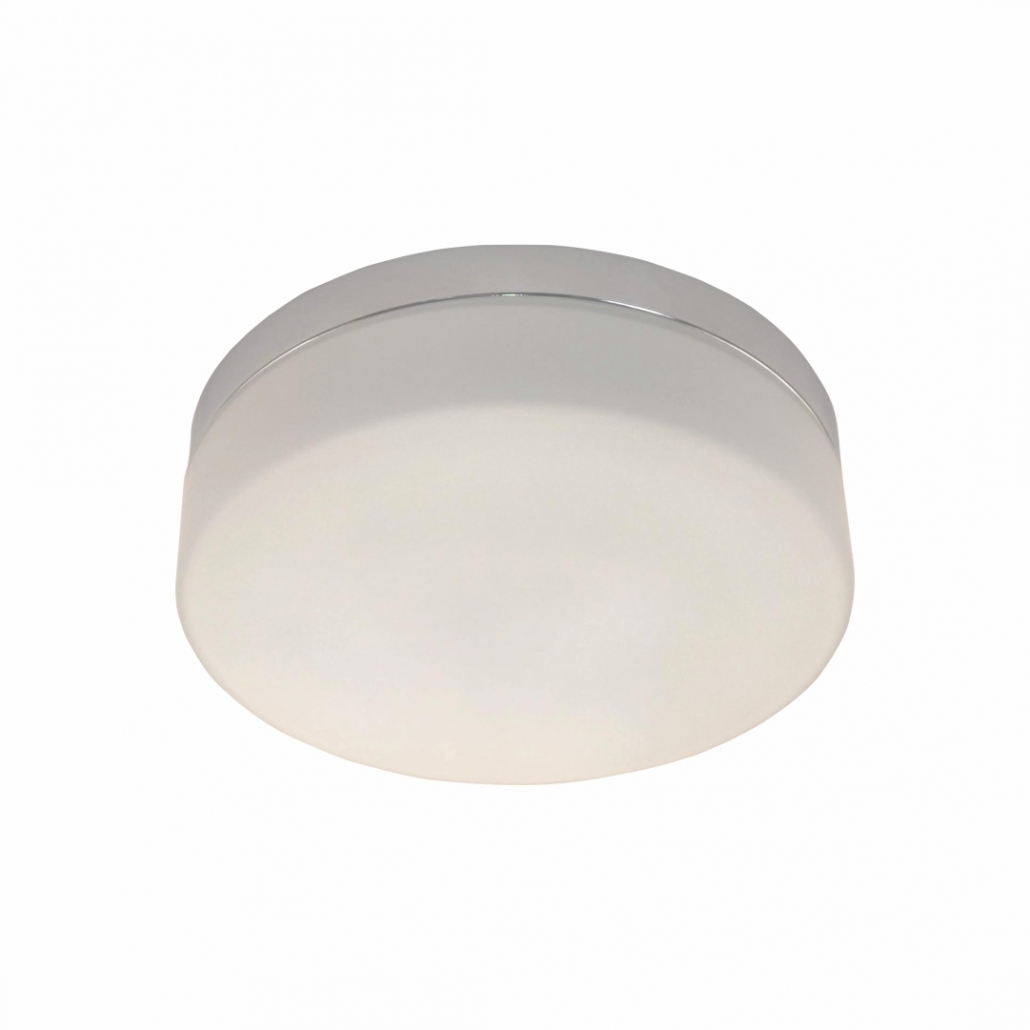

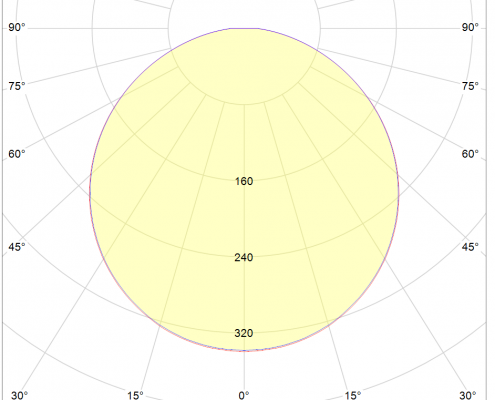

Surface Mounted Luminaires

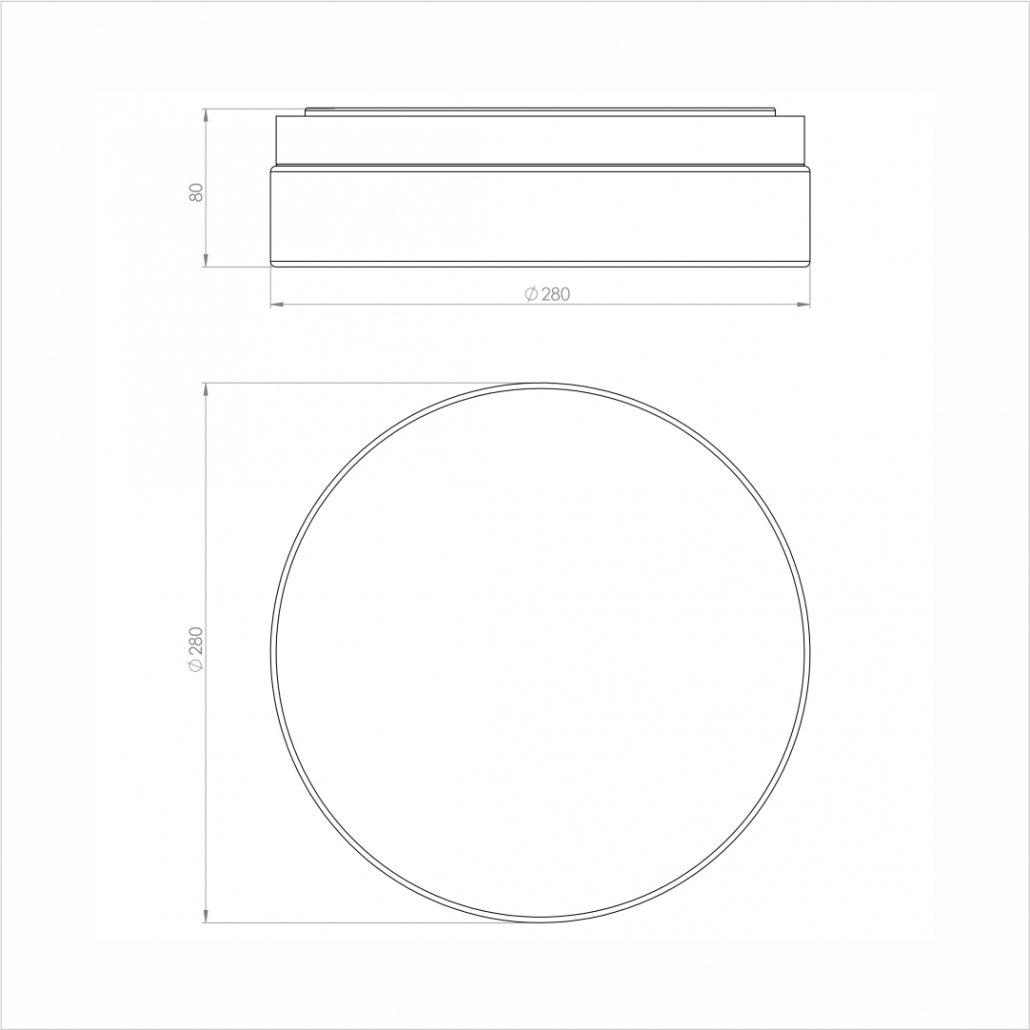

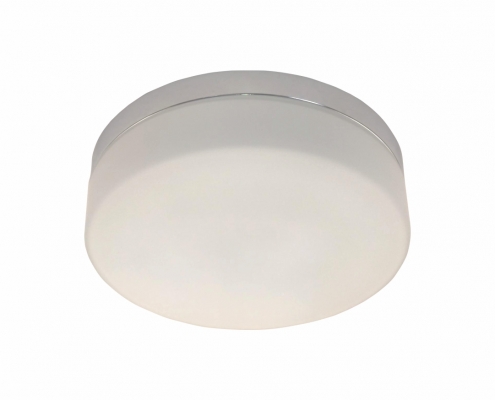

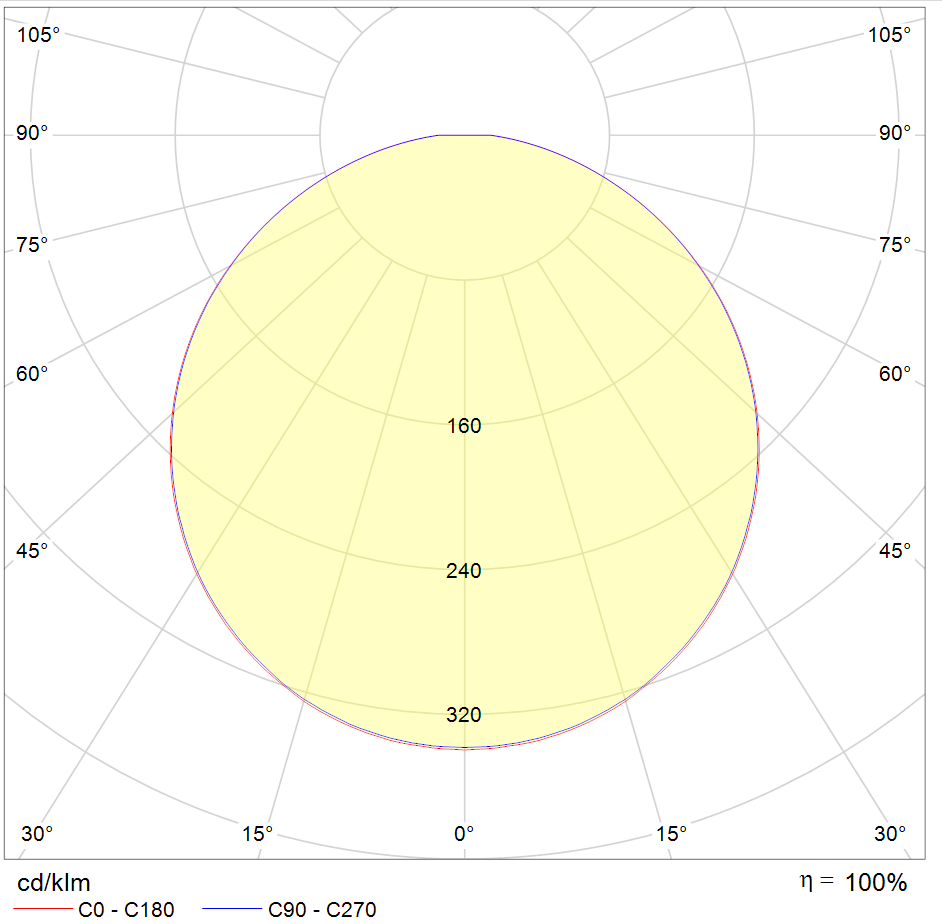

SURFACE ROUND S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
SURFACE ROUND S
12W
1500lm

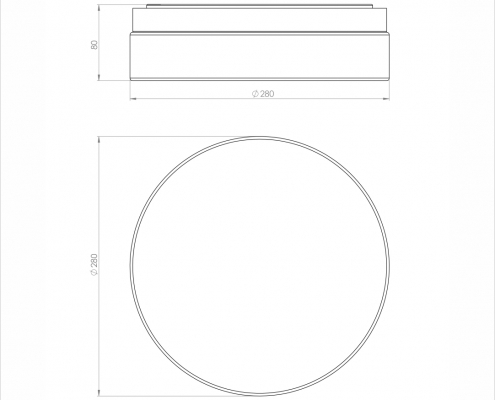

Ø:280mm, H:80mm
LED
3000K/4000K
25W
2500lm

Specification


  • Surface Mounting
  • Stainless Body and Sheet Metal Case
  • Opal Gass Cover
  • ON-OFF

Options


  • With Sensor (Optional)
  • Emergency Kit (Optional)
  • IP20,IP44,IP54

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/sruface-round-s/feed/ 0 TPot-S https://www.zlux.com/en/zlux-lighting/tpot-s/ https://www.zlux.com/en/zlux-lighting/tpot-s/#respond Mon, 25 May 2020 07:49:32 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1630

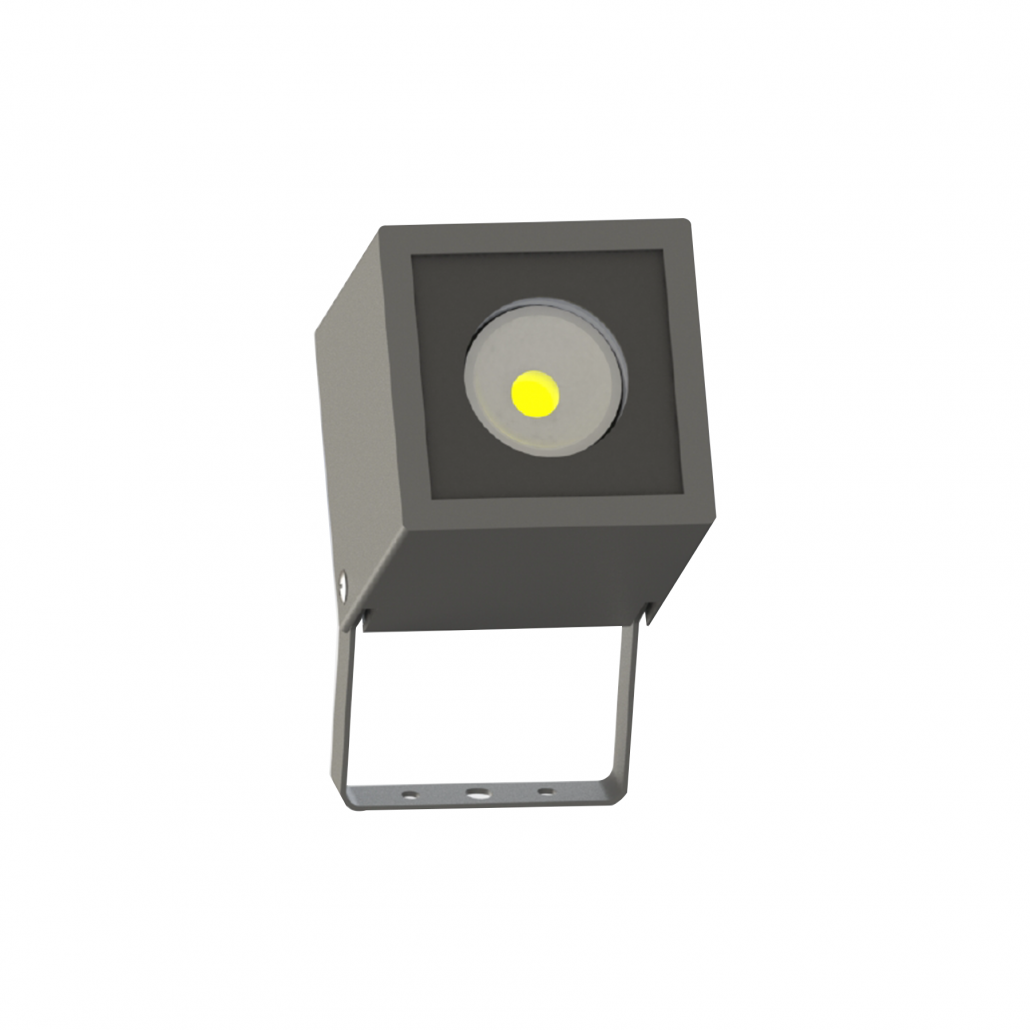

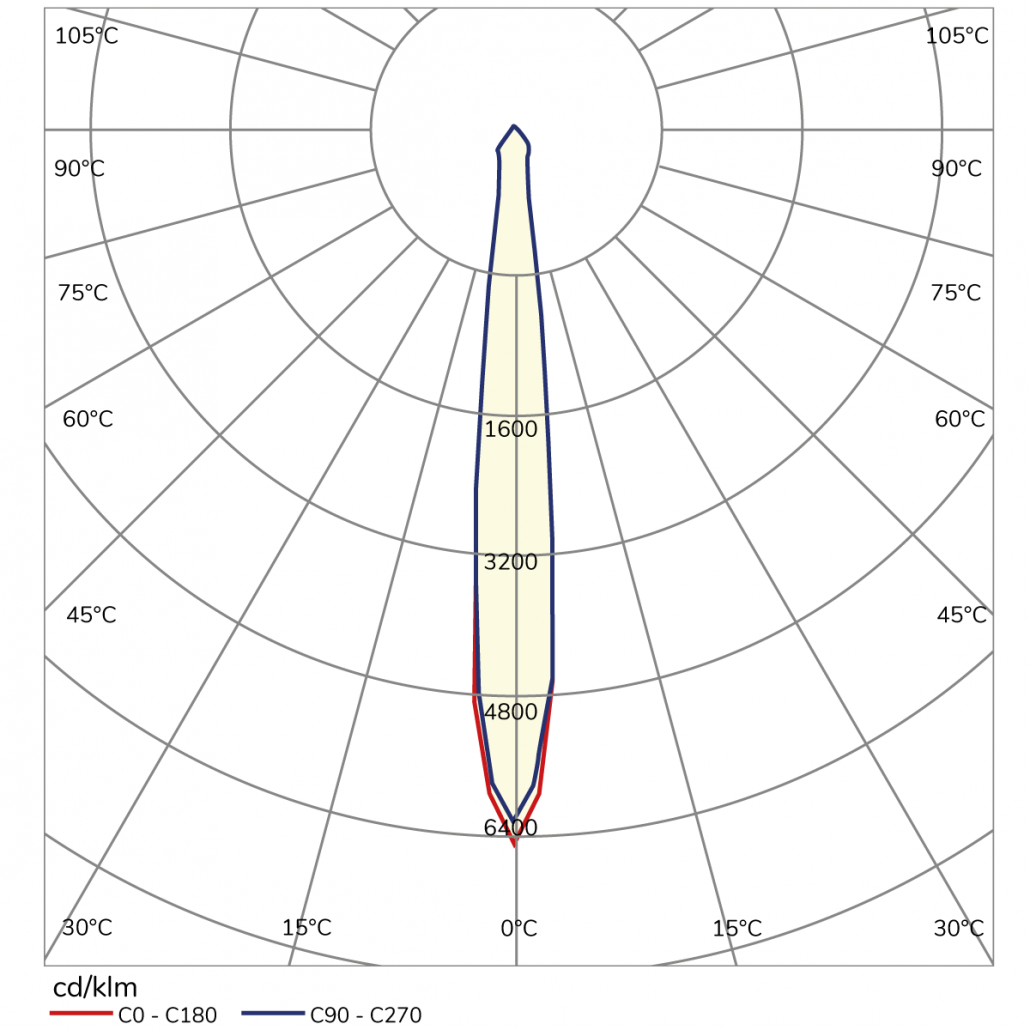

Tpot-S

Surface Mounted Luminaires

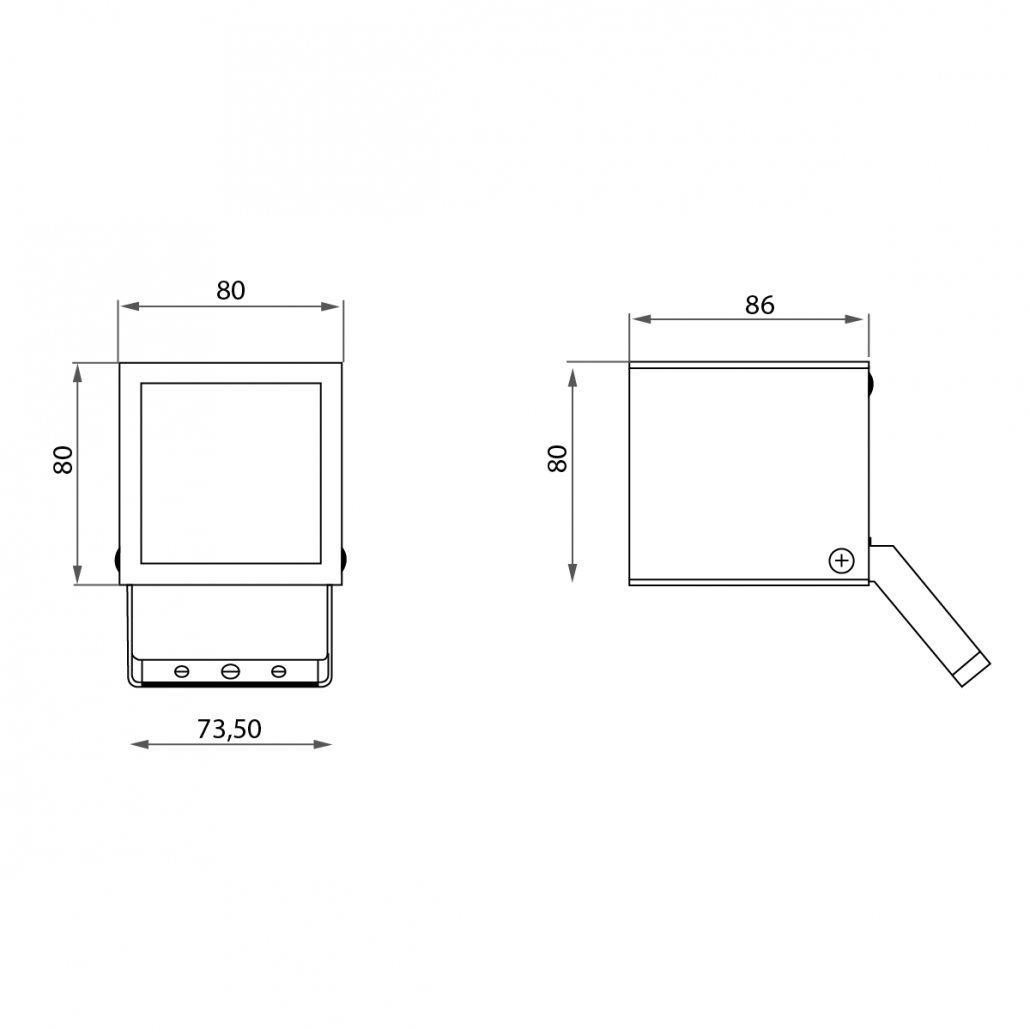

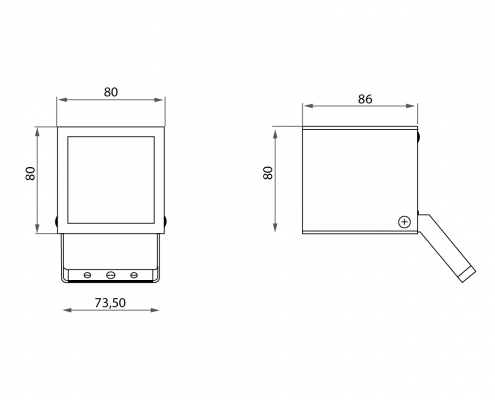

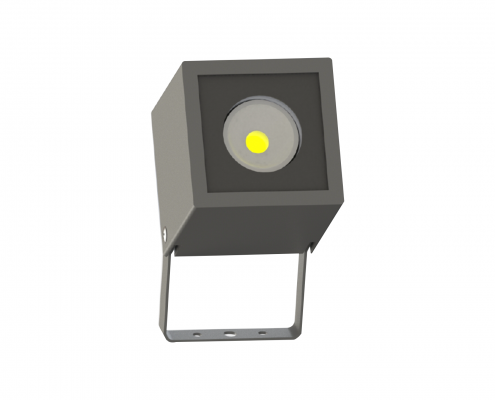

TPOT S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions (axbxh)
Source
Color Temperature
TPOT S
3W
270 lm
80x80x86 mm
LED
2700K/3000K/4000K/6500K
7W
630 lm
2700K/3000K/4000K/6500K
10W
900 lm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounting Luminaire
  • Optic: Reflective

Options


  • IP40
  • 1-3 Hour Emergency Kit
  • 1-10V Dimmable, DALI Dimmable
  • Surface Mounting Case

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-s/feed/ 0 Zpot Pro https://www.zlux.com/en/zlux-lighting/zpot-pro/ https://www.zlux.com/en/zlux-lighting/zpot-pro/#respond Sun, 24 May 2020 06:17:22 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1613
Zpot-Pro

Surface Mounted Luminaires

ZPOT PRO


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output (3000K)
Dimensions Øxh
Source
Color Temperature
ZPOT PRO
16 W
1450 lm
126x265 mm
LED
2700K/3000K/4000K/6500K
28 W
2500 lm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounting
  • Optics: Symmetrical Light Distribution, Spot 15°- Flood Beam Angle 44°

Options


  • IP65
  • 1-3 Hour Emergency Kit
  • 1-10V Dimmable, DALI Dimmable

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-pro/feed/ 0 Z Uplight https://www.zlux.com/en/zlux-lighting/z-upllight/ https://www.zlux.com/en/zlux-lighting/z-upllight/#respond Sun, 24 May 2020 06:05:17 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1605

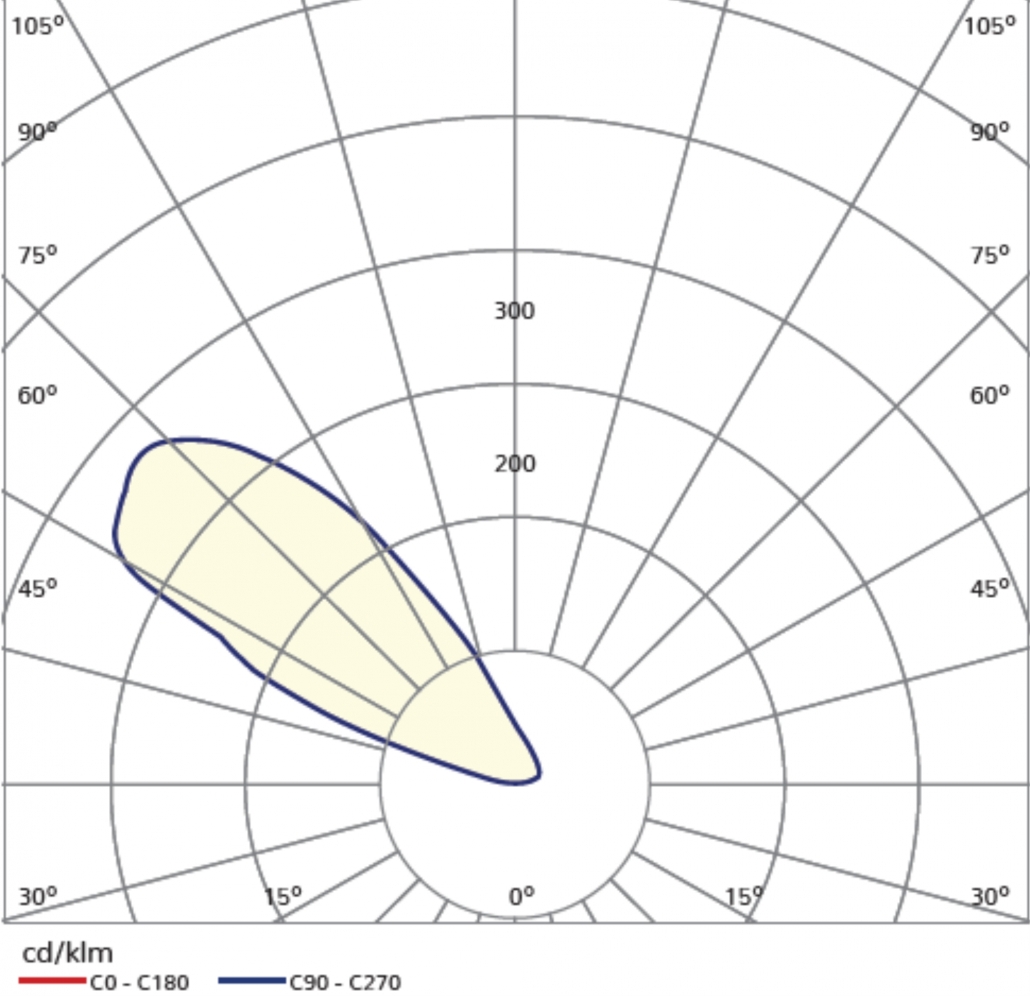

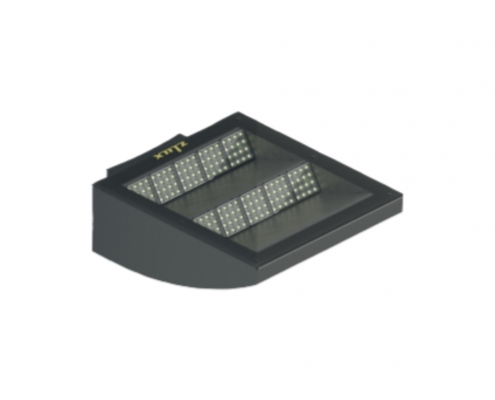

Surface Mounted Luminaires

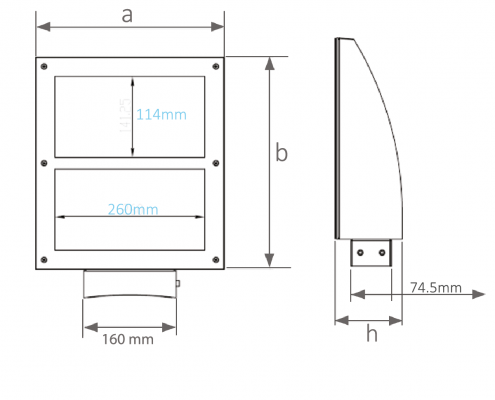

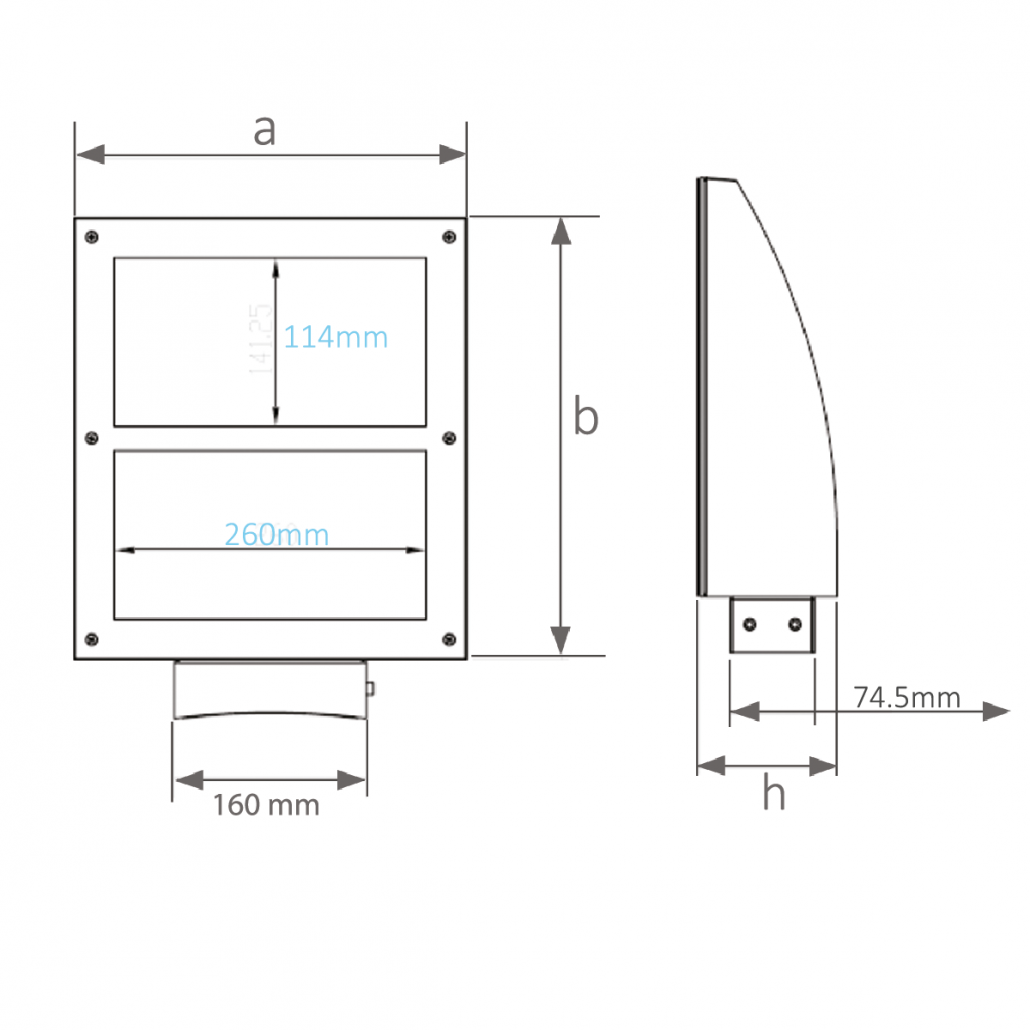

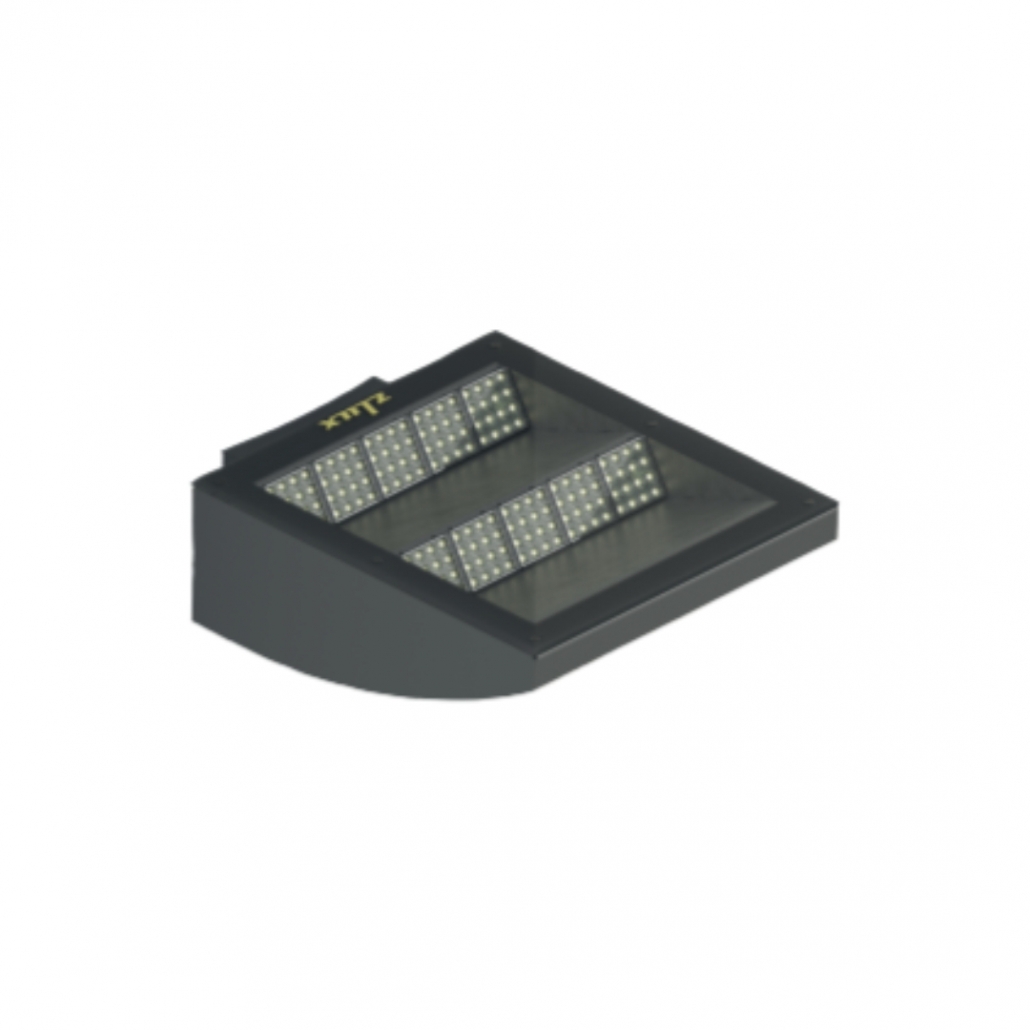

Z UPLIGHT


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions
Source
Color Temperature
Z UPLIGHT
35W
4400 lm
328x395x120 mm
LED
2700K/3000K/4000K/6500K
45W
5650 lm
2700K/3000K/4000K/6500K
60W
7500 lm
2700K/3000K/4000K/6500K
72W
9000 lm
2700K/3000K/4000K/6500K

Specification


  • Wall Mounting
  • Optics: Trick 360° and Light Blade Effect
  • Body: Anodized Aluminium

Options


  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/z-upllight/feed/ 0 ZPanel S https://www.zlux.com/en/zlux-lighting/zpanel-s/ https://www.zlux.com/en/zlux-lighting/zpanel-s/#respond Thu, 21 May 2020 05:34:20 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1599
ZPanel-S

Panel Luminaires-Surface Mounted Luminaires

ZPANEL S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output (4000K)
Dimensions
Reflector
Source
Color Temperature
ZPANEL S
15W LED
1500 lm
300x300 mm
Opal Difüzör
LED
2700K/3000K/4000K/6500K
21W LED
2000 lm
300x300 mm
2700K/3000K/4000K/6500K
35W LED
3500 lm
600x600 mm
2700K/3000K/4000K/6500K
45W LED
4200 lm
600x600 mm
2700K/3000K/4000K/6500K
45W LED
4200 lm
300x1200 mm
2700K/3000K/4000K/6500K
45W LED
4500 lm
600x1200 mm
2700K/3000K/4000K/6500K

Specification


  • Optic: Opal Diffuser

Options


  • ON/OFF
  • DALI Dimmable
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpanel-s/feed/ 0 Laluna https://www.zlux.com/en/zlux-lighting/laluna/ https://www.zlux.com/en/zlux-lighting/laluna/#respond Thu, 21 May 2020 05:28:00 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1591

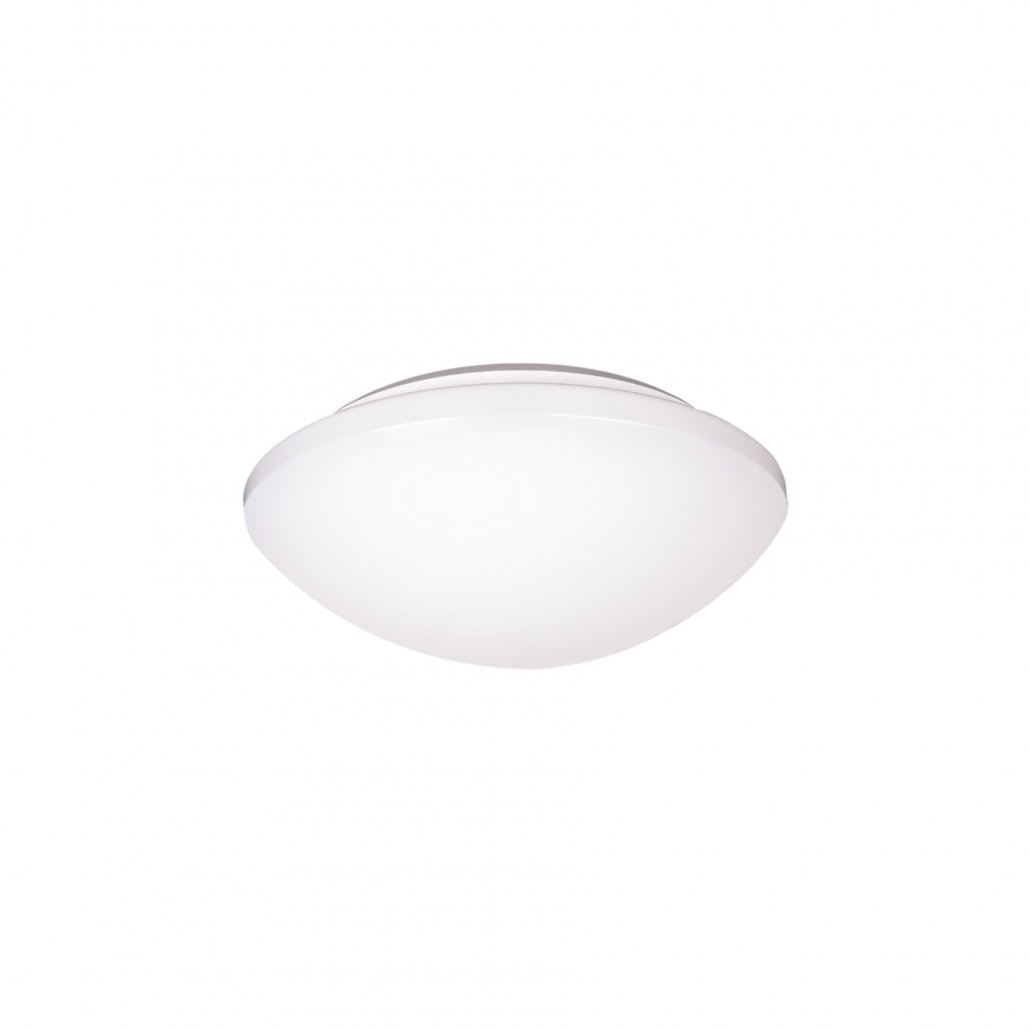

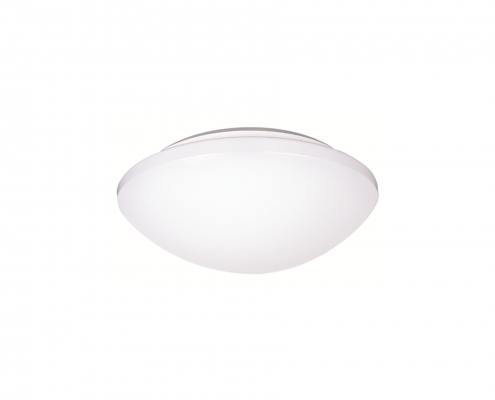

Laluna

Surface Mounted Luminaires

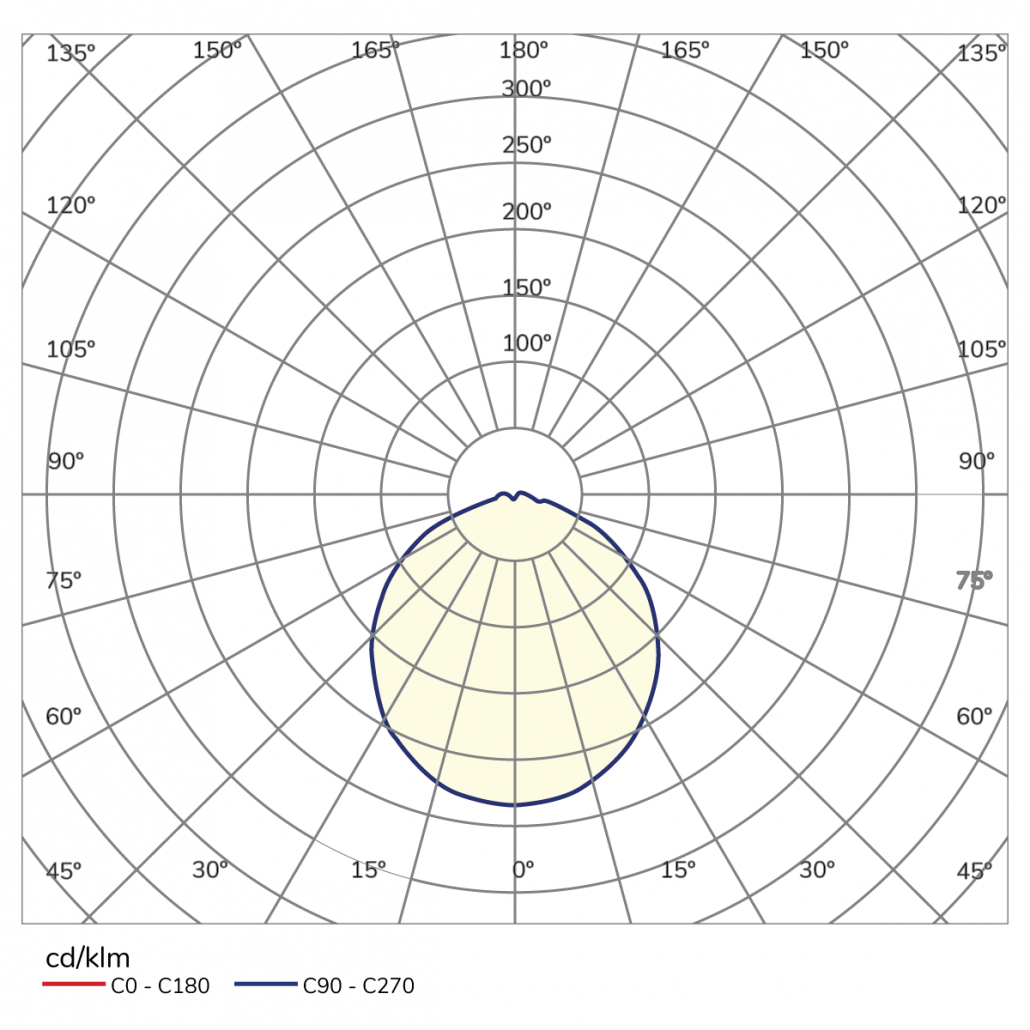

LALUNA


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)

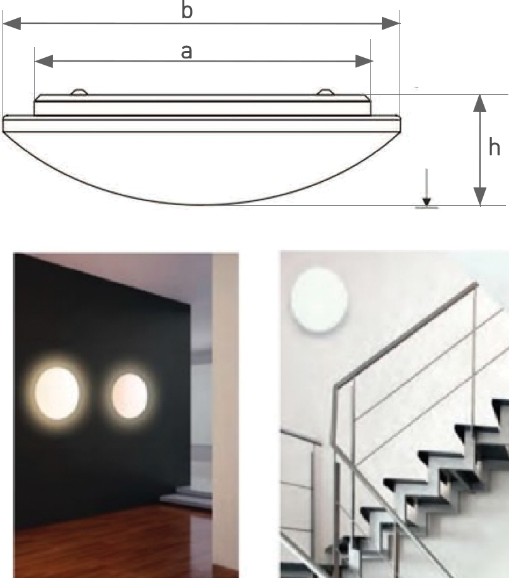

Dimensions (axbxh)
Source
Color Temperature
LALUNA LED
20 W
1600 lm
280x210x110 mm
LED
2700K/3000K/4000K/6500K
LALUNA 18
2x18 W
2x1200 lm
FLORESAN
2700K/3000K/4000K/6500K
LALUNA 22
22 W Daire
1350 lm
FLORESAN
2700K/3000K/4000K/6500K
LALUNA 40
90 W Daire
3200 lm
FLORESAN
2700K/3000K/4000K/6500K

Specification


  • Ceiling Mounting
  • Optic: Opal Diffuser
  • Policarbonate Body
  • 220-240V 50/60 Hz

Options


  • 1-10V Dimmable, DALI Dimmable
  • 360° Radar Sensor
  • Motion Sensor
  • Daylight Sensor
  • 1-3 Hour Emergency Kit
  • Presence Sensor
  • Glass Cover
  • IP65

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/laluna/feed/ 0 Zircle S https://www.zlux.com/en/zlux-lighting/zircle-s/ https://www.zlux.com/en/zlux-lighting/zircle-s/#respond Thu, 21 May 2020 05:16:07 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1583
Zircle-S

Surface Mounted Luminaires

ZIRCLE S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
ZIRCLE S35
18W
1600 lm
350x120 mm
LED
2700K/3000K/4000K/6500K
ZIRCLE S60
36W
3240 lm
600x120 mm
2700K/3000K/4000K/6500K
ZIRCLE S90
90W
5400 lm
900x120 mm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounting
  • Optic: Opal Diffuser
  • Aluminium Body With Electrostatic Paint
  • 220-240V 50/60 Hz

Options


  • 1-10V Dimmable, DALI Dimmable
  • Motion Sensor
  • Daylight Sensor
  • 1-3 Hour Emergency Kit
  • IP20,IP44

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zircle-s/feed/ 0 Line Pot https://www.zlux.com/en/zlux-lighting/line-pot/ https://www.zlux.com/en/zlux-lighting/line-pot/#respond Wed, 20 May 2020 14:26:45 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1571
Line-Pot

Surface Mounted Luminaires

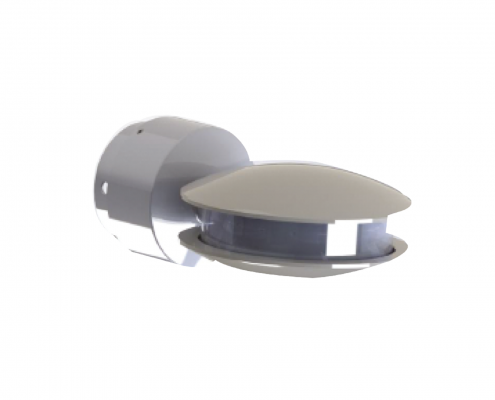

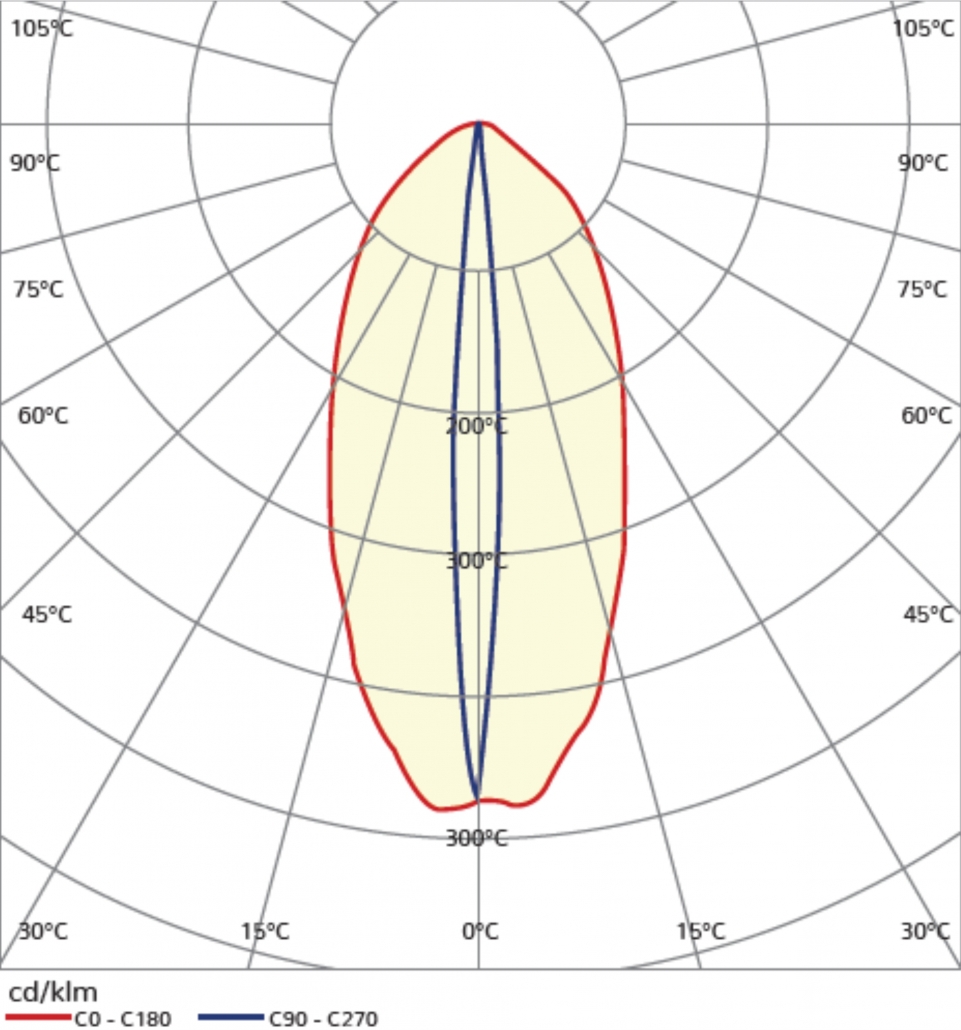

LINE POT


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions (axbxh)
Source
Color Temperature
LINE POT
6W
480 lm
150x150x70 mm
LED
2700K/3000K/4000K/6500K

Specification


  • Wall Mounting
  • Optic: Trick 360° and Light Blade Effect
  • Body: Anodized Aluminium

Options


  • ON/OFF or DALI Dimmable
  • IP65

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/line-pot/feed/ 0 Zpot Laser S https://www.zlux.com/en/zlux-lighting/zpot-laser-s/ https://www.zlux.com/en/zlux-lighting/zpot-laser-s/#respond Wed, 20 May 2020 14:12:04 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1564
Zpot-Laser-S

Surface Mounted Luminaires-Lineer Luminaires

ZPOT LASER S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
ZPOT LASER S R4
10W
900lm
H : 43mm
W : 45mm
L : 96mm
LED
2700K/3000K/4000K/6500K

ZPOT LASER S R8

20W

1800lm
H : 43mm
W : 45mm
L : 192mm

ZPOT LASER S R12

30W

2700lm
H : 43mm
W : 45mm
L : 288mm

Specification


  • Optic: 10°,16°,18°,25°, 30°, 40°,60° (35°+15° Oval Beam, 45°+15° Oval Beam)

Options


  • 1-10V Dimmable, DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/zpot-laser-s/feed/ 0 Aero Fit S DA https://www.zlux.com/en/zlux-lighting/aero-fit-s-da/ https://www.zlux.com/en/zlux-lighting/aero-fit-s-da/#respond Wed, 20 May 2020 13:51:09 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1558

Surface Mounted Luminaires-Lineer Luminaires

AERO FIT S DA


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Length (L)
Source
Color Temperature
AERO FIT S/HE
10W
1300 lm
H : 79mm
W : 50mm
580mm
LED
2700K/3000K/4000K/6500K
14W
1800 lm
860mm
19W
2470 lm
1140mm
25W
3250 lm
1420mm


AERO FIT S/HO
14W
1600 lm
580mm
21W
2400 lm
860mm
30W
3450 lm
1140mm
37W
4250 lm
1420mm

Specification


  • Surface mounting
  • Optic: Asymetric Lens

Options


  • 1-10V Dimmable,DALI Dimmable
  • 1-3 Hour Emergency Kit
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
