Track Spots

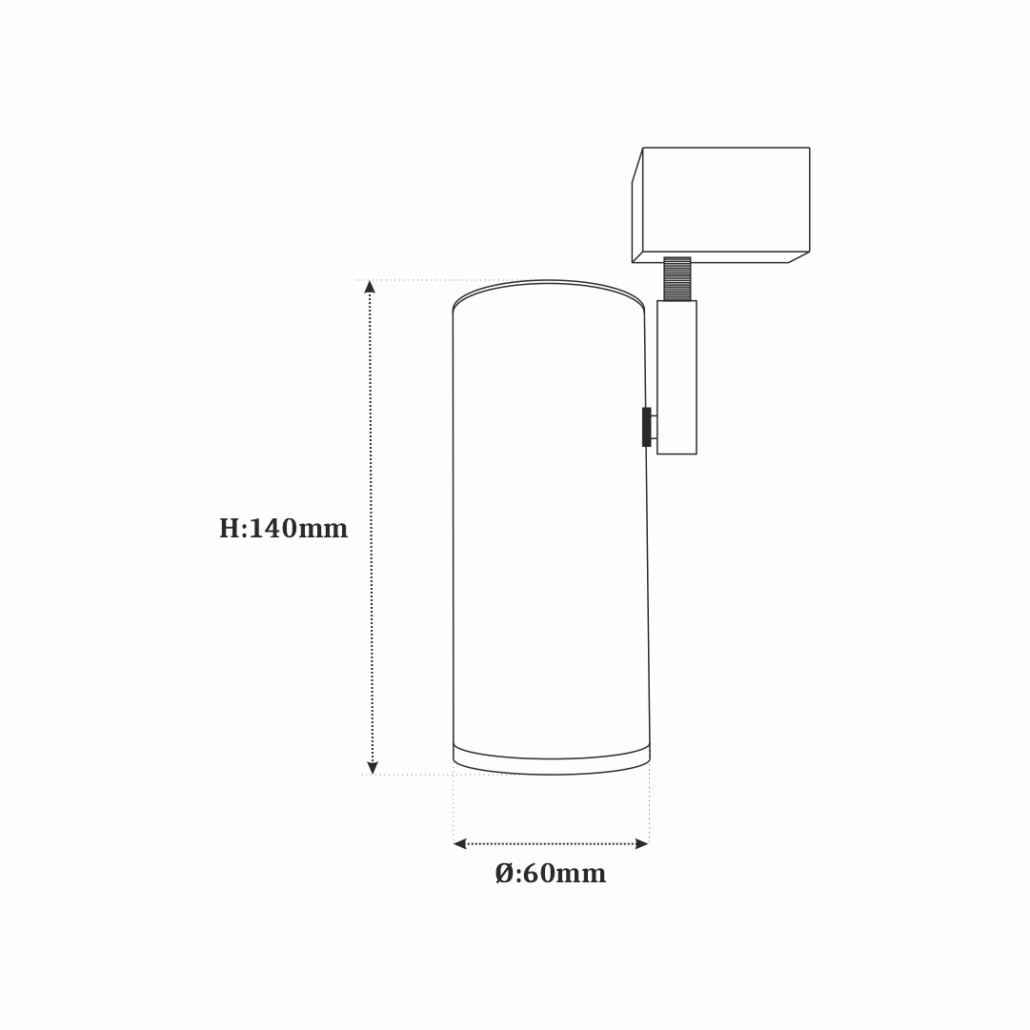

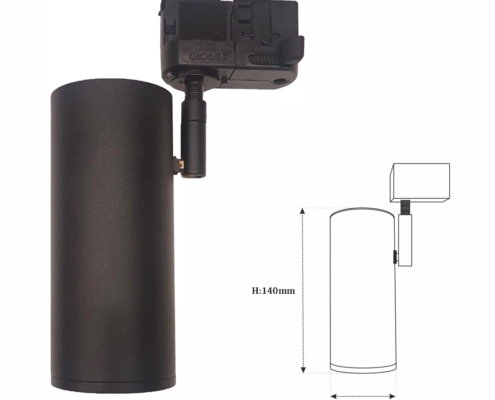

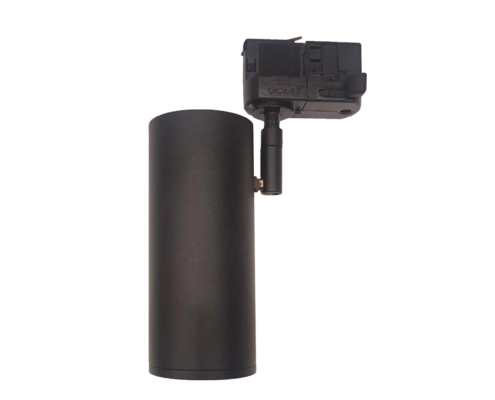

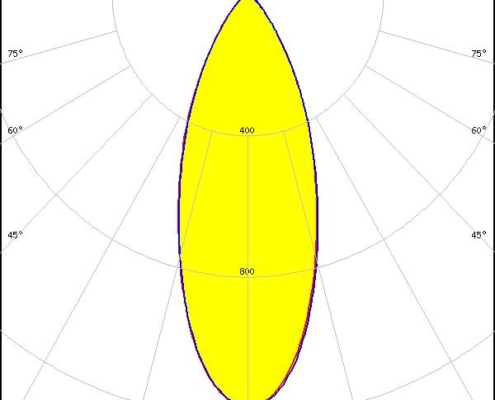

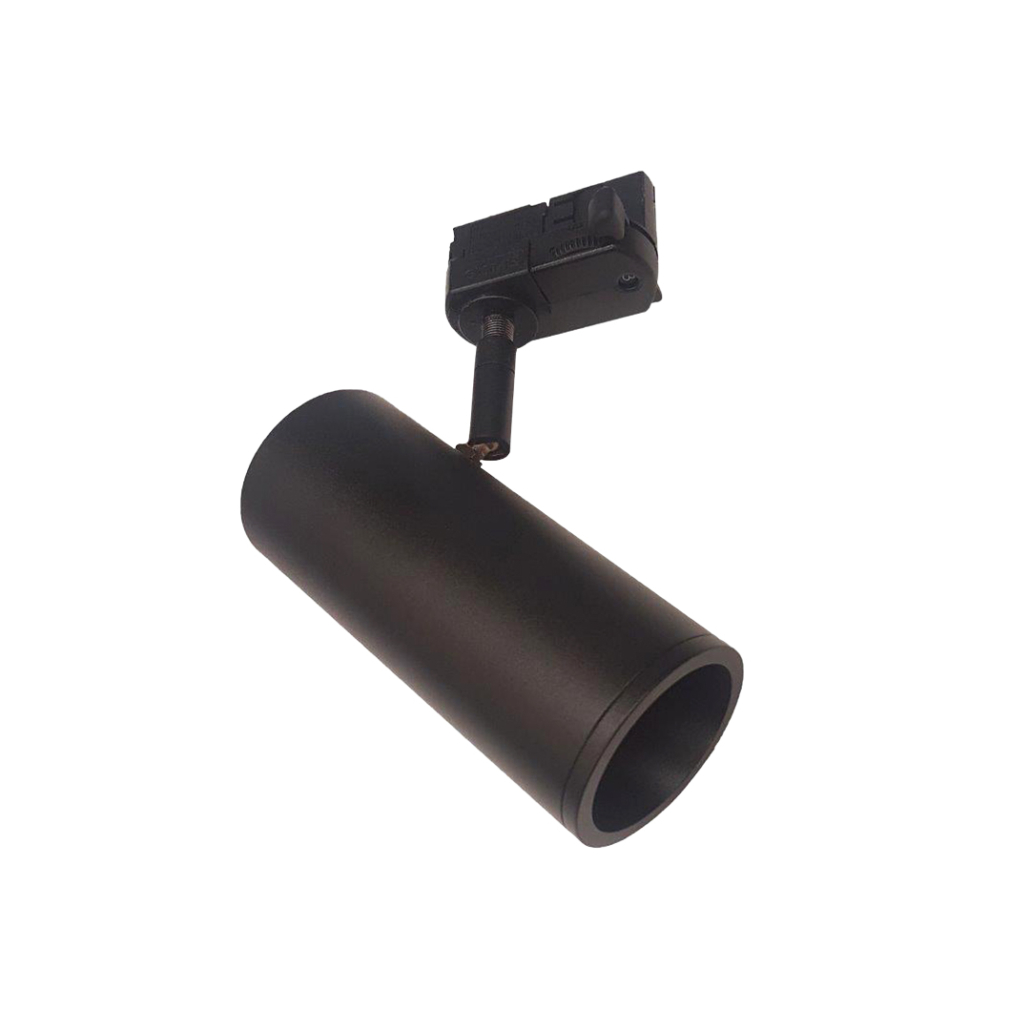

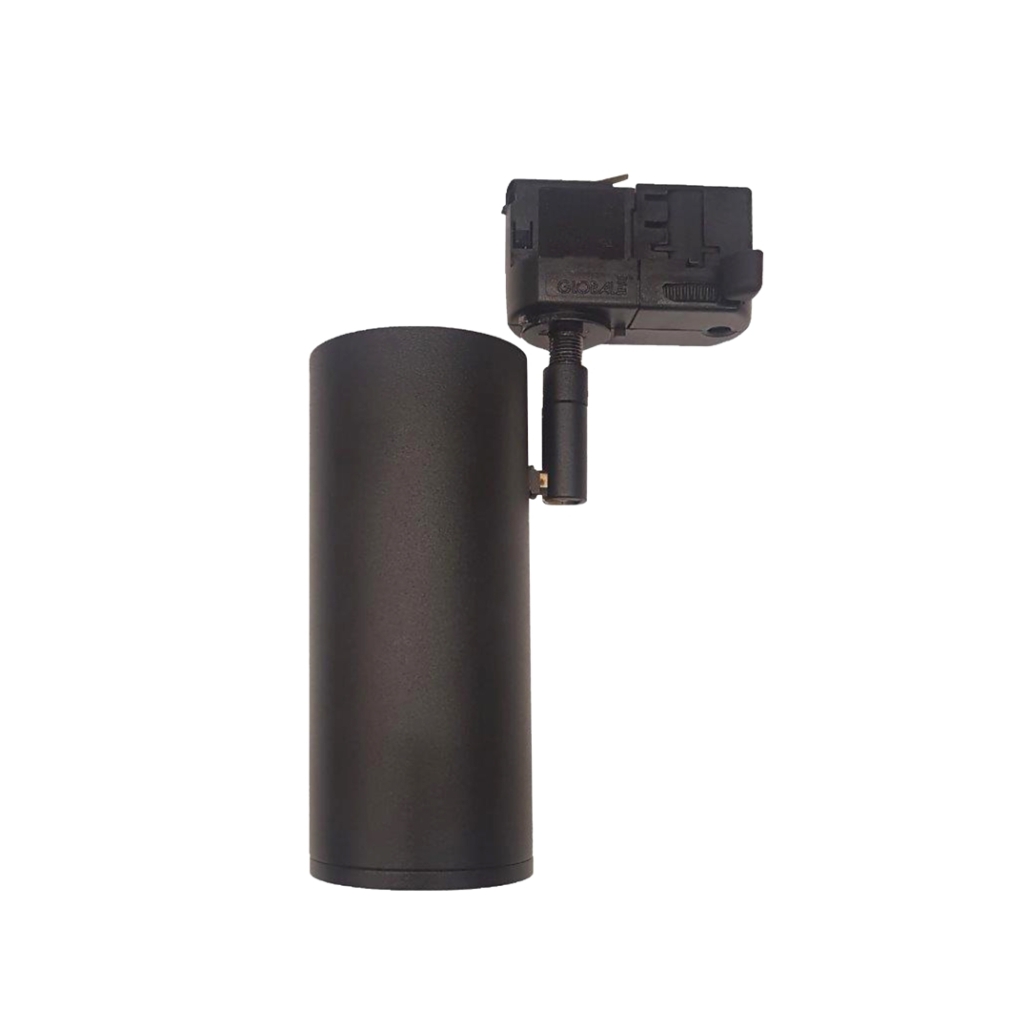

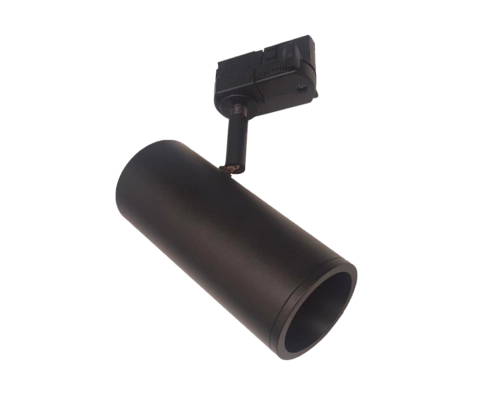

TPOT FIT S MINI


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimesions
Source
Color Temperature
TPOT FIT MINI S
8W
820lm

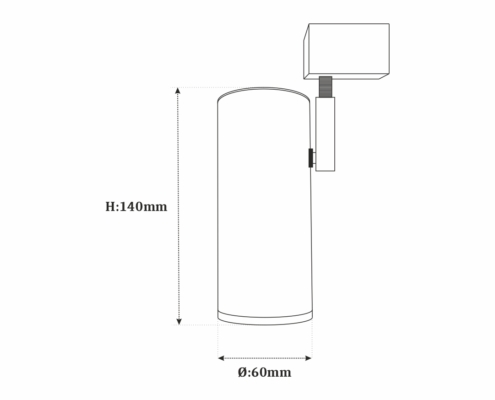

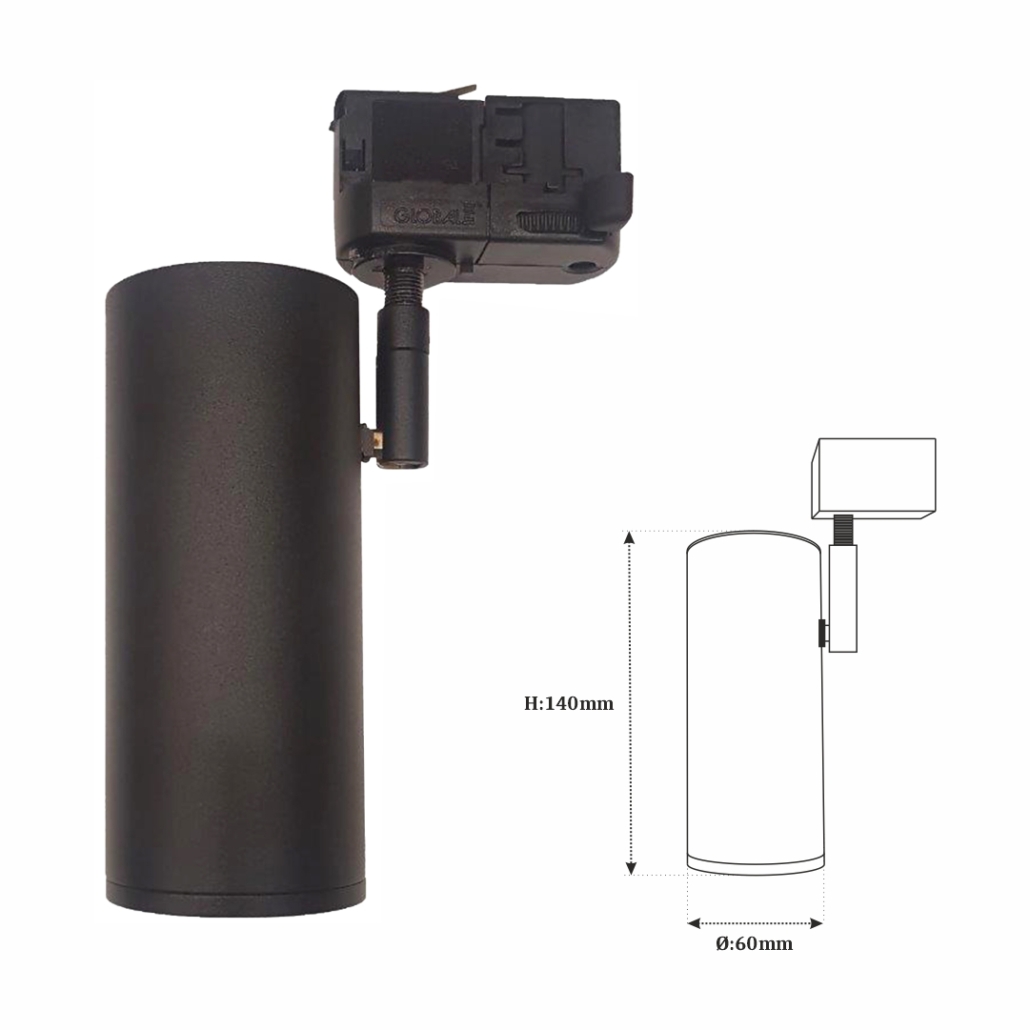

Ø:60mm
H:140mm
LED
2700K/3000K/4000K/6500K

Specification


  • Aluminum Body
  • Electrostatic Powder Coating

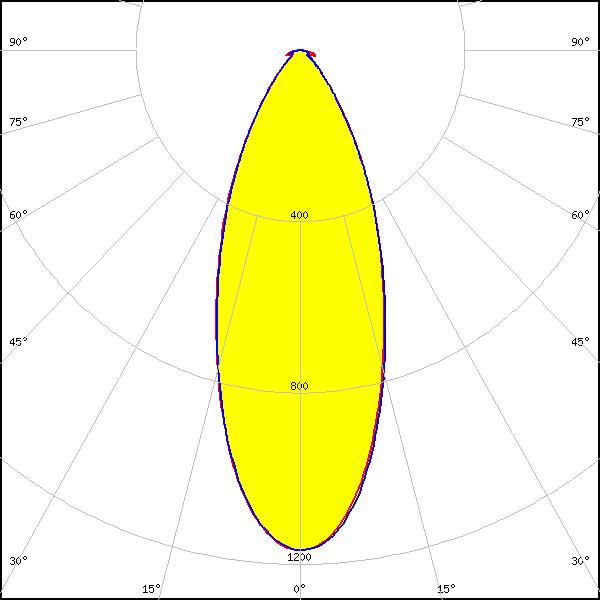

  • Light Angle: 24°-40°-60°
  • Optics : Lens

Options


  • Trifaze - Monofaze
  • 1-10V Dim, DALI Dim
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-fit-s-mini/feed/ 0 TPot Fit Mini T https://www.zlux.com/en/zlux-lighting/tpot-fit-mini-t/ https://www.zlux.com/en/zlux-lighting/tpot-fit-mini-t/#respond Wed, 23 Jun 2021 07:25:57 +0000 http://www.zlux.com/en/?post_type=portfolio&p=3873

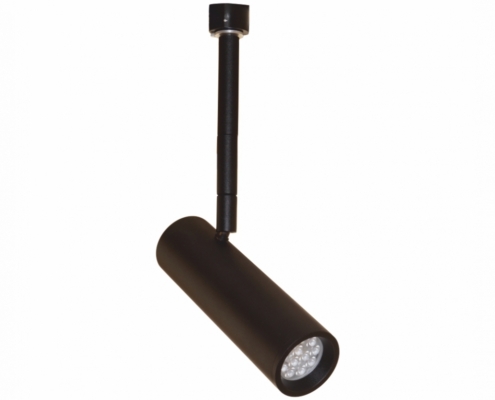

Track Spots

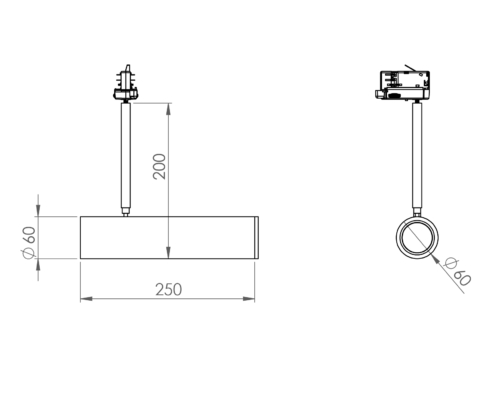

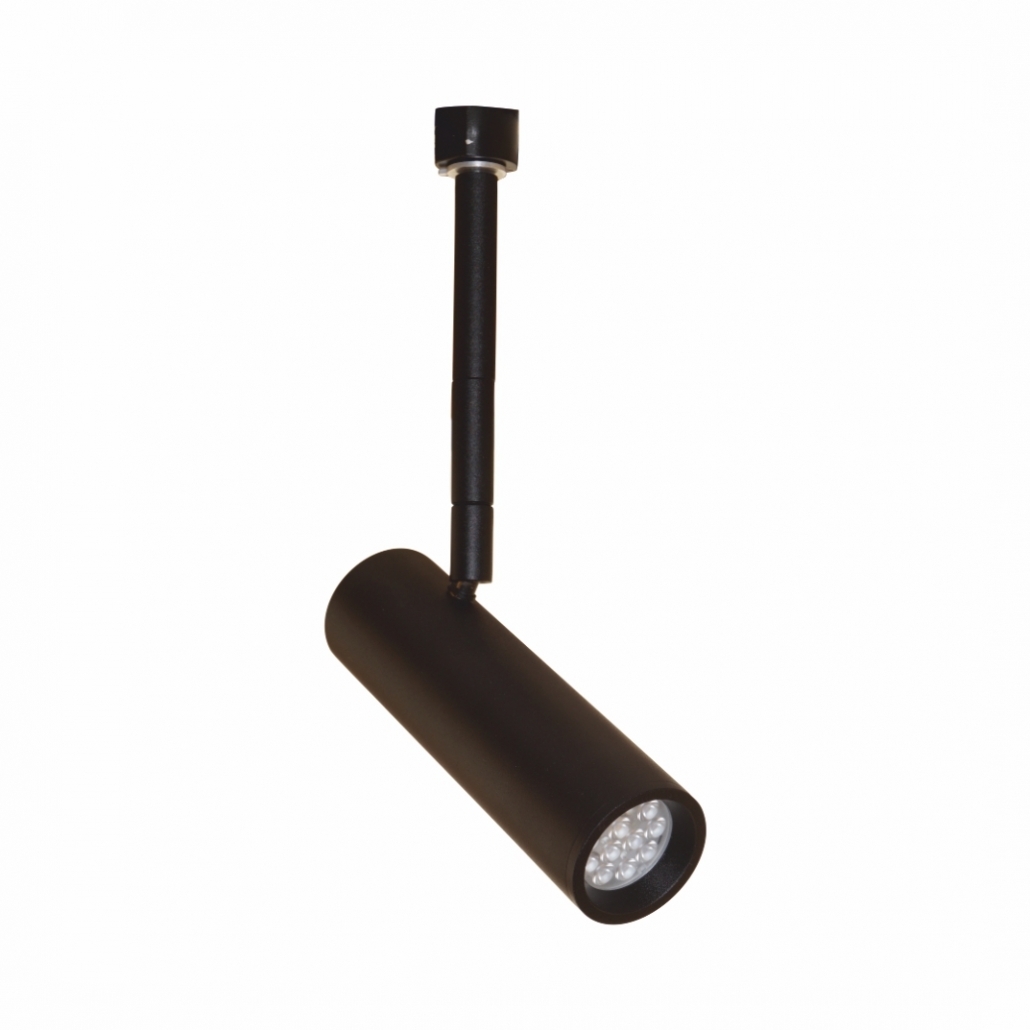

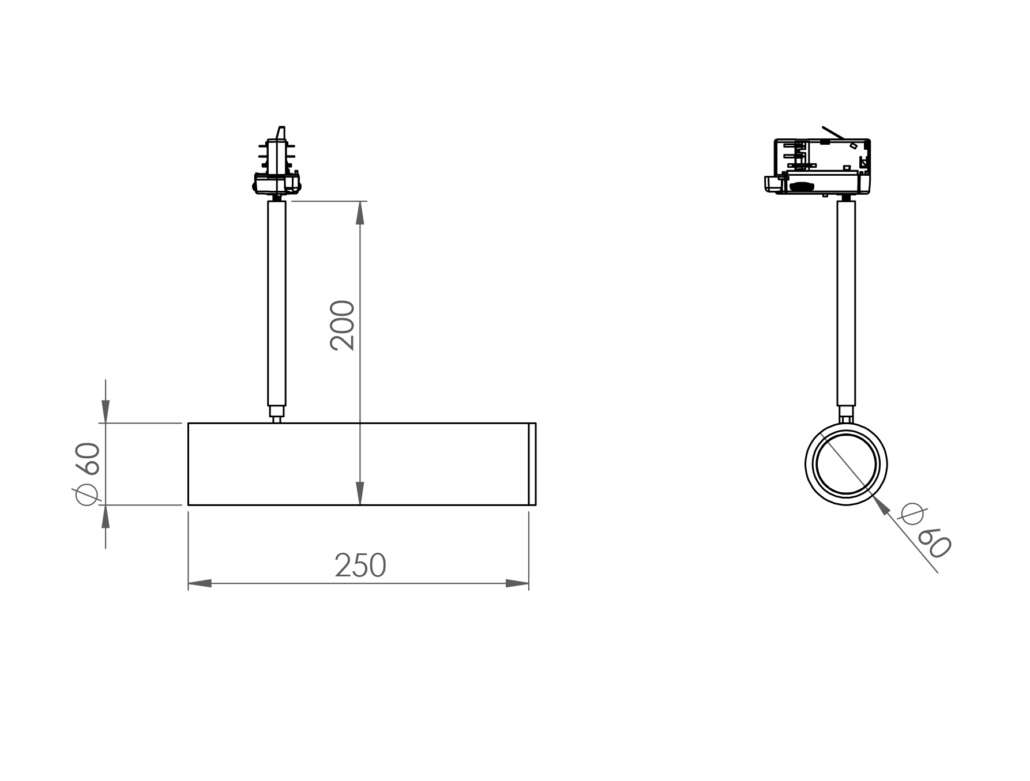

TPOT FIT MINI T


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions
Source
Color Temperature
TPOT FIT MINI T
9W
835lm
H:200mm
Ø:60mm
LED
2700K/3000K/4000K/6500K

Specification


  • Aluminum Body
  • Electrostatic Powder Coating
  • Light Angle: 24°-40°-60°
  • Optik : Lens

Options


  • Trifaze - Monofaze
  • 1-10V Dim, DALI Dim
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-fit-mini-t/feed/ 0 TPot Fit S https://www.zlux.com/en/zlux-lighting/tpot-fit-s/ https://www.zlux.com/en/zlux-lighting/tpot-fit-s/#respond Wed, 20 May 2020 09:02:39 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1417

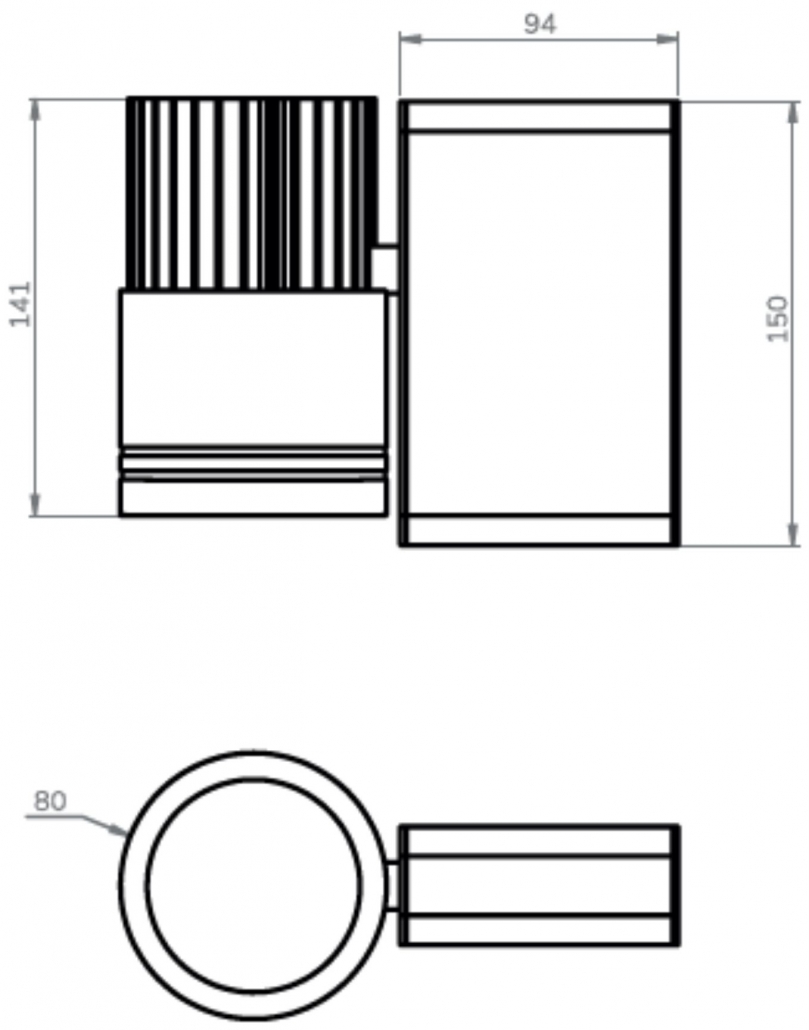

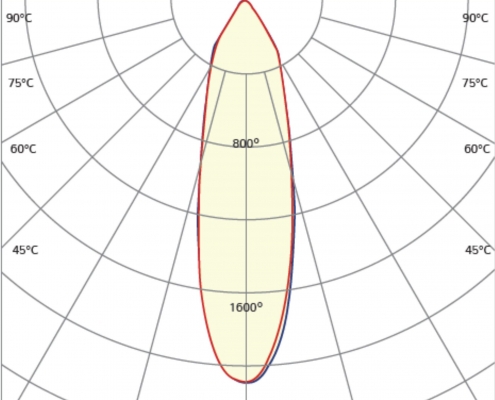

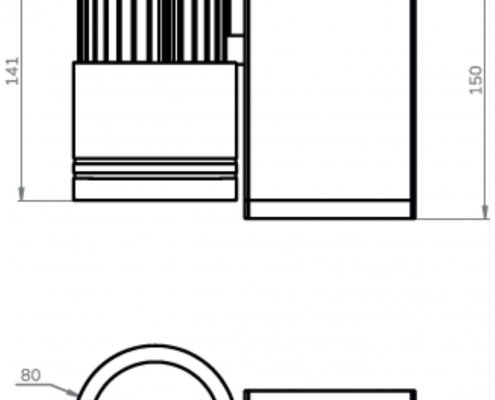

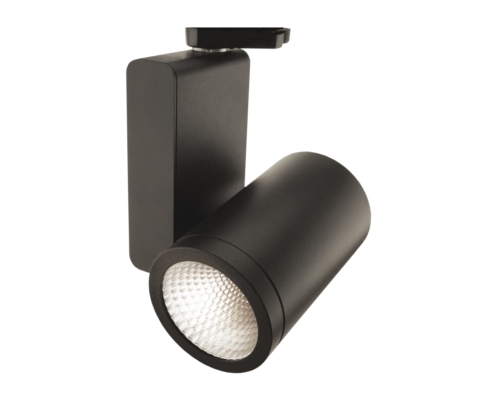

Track Spots

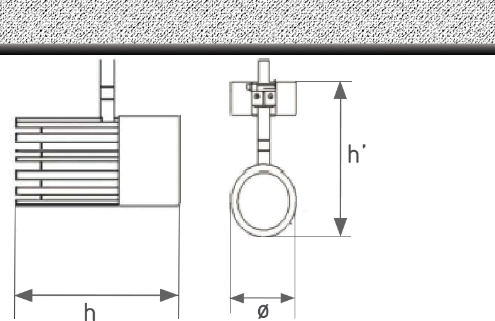

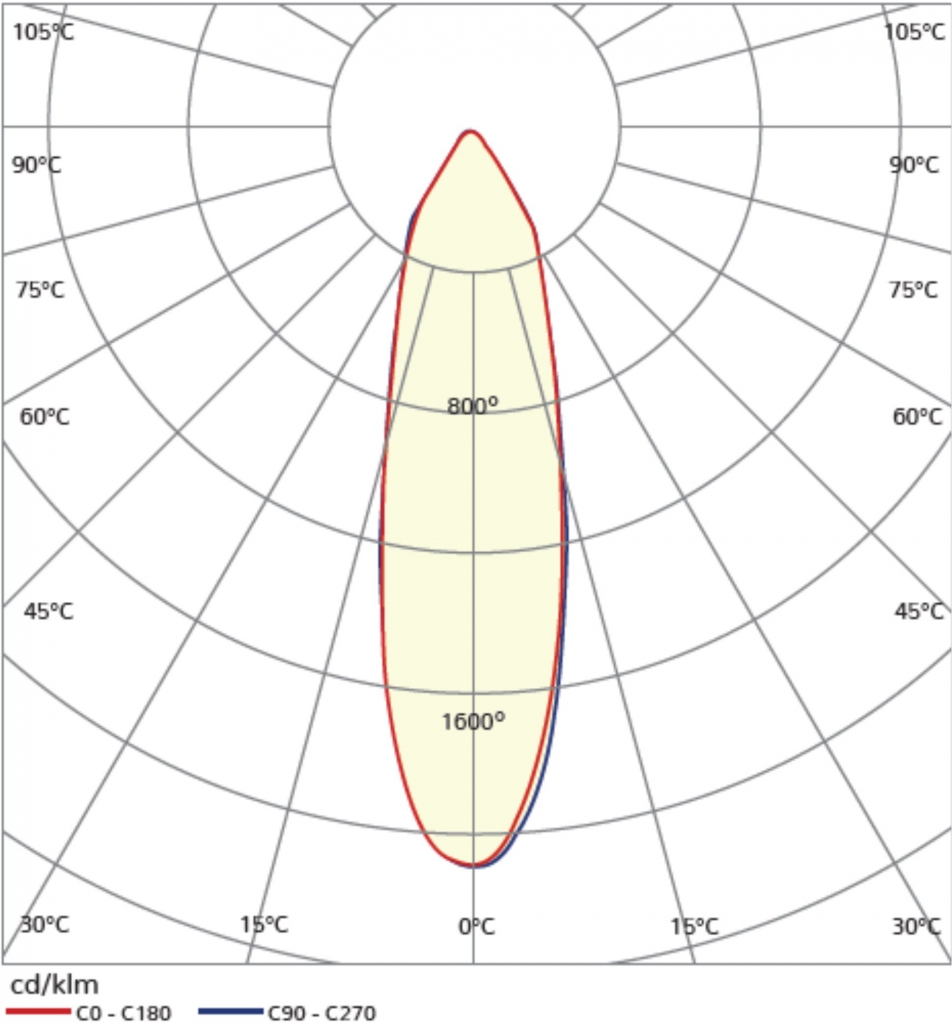

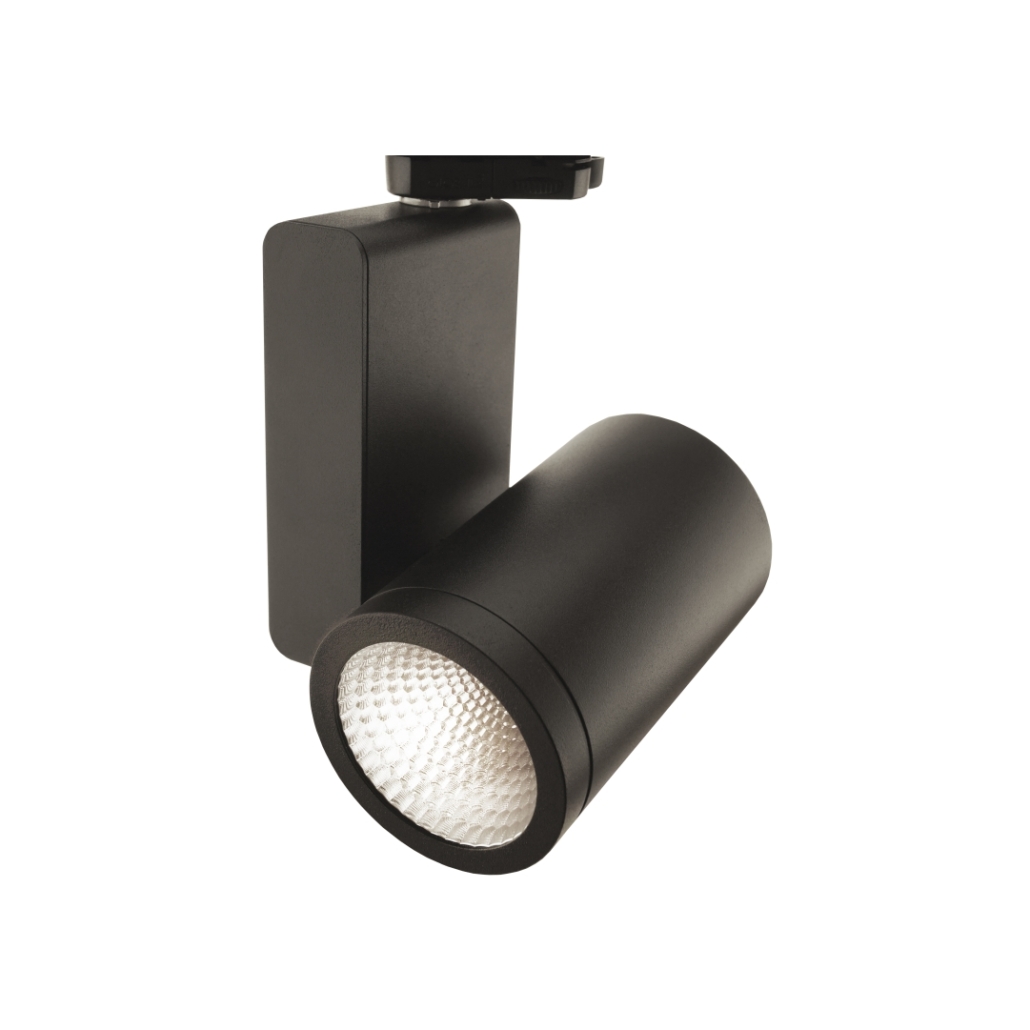

TPOT FIT S


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
TPOT FIT S
13W
1800 lm
80x140 mm
LED
2700K/3000K/4000K/6500K
20W
2500 lm
80x140 mm
LED
2700K/3000K/4000K/6500K
28W
3260 lm
80x140 mm
LED
2700K/3000K/4000K/6500K
35W
3640 lm
80x140 mm
LED
2700K/3000K/4000K/6500K

Specification


  • Surface Mounting
  • Mounting Type : With Special Brecket (0-45° Tilt Adjustable, 5° Stepping)
  • Optic: Reflective

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • IP20
  • 28°,33°,55° Angle

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-fit-s/feed/ 0 TPot Fit https://www.zlux.com/en/zlux-lighting/tpot-fit/ https://www.zlux.com/en/zlux-lighting/tpot-fit/#respond Wed, 20 May 2020 08:49:50 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1410

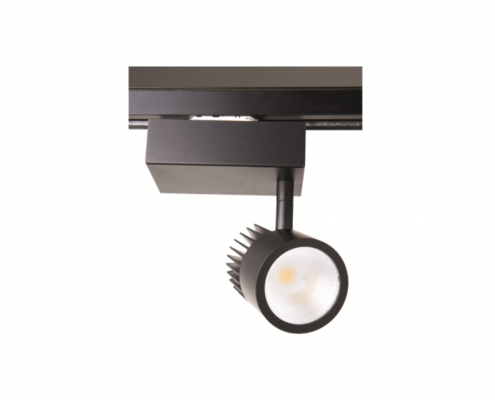

TPot-Fit

Track Spots

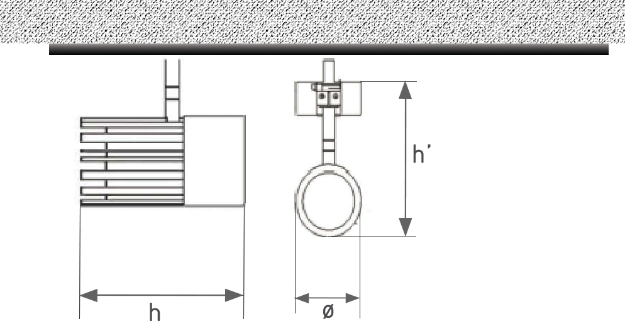

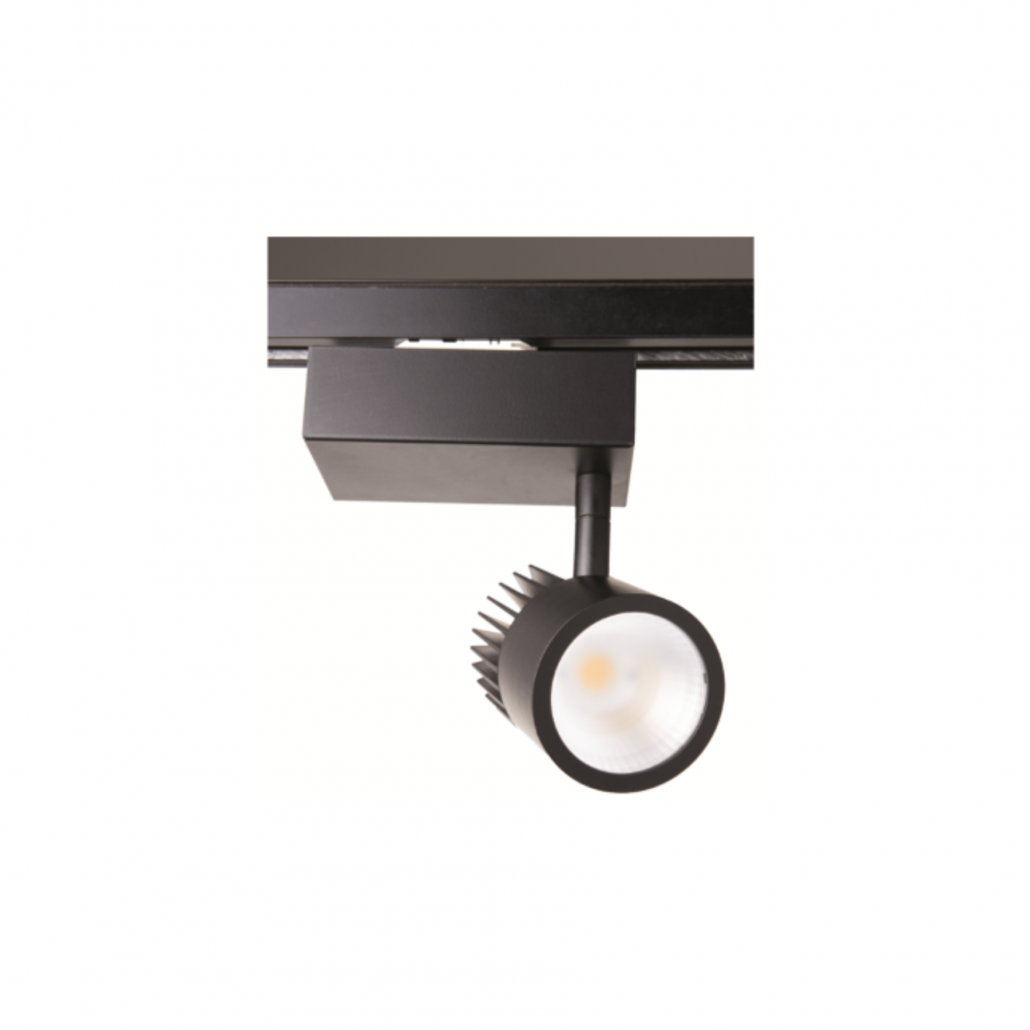

TPOT FIT


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
TPOT FIT
13W
1800 lm
85x137 mm
LED
2700K/3000K/4000K/6500K
20W
2500 lm
2700K/3000K/4000K/6500K
28W
3260 lm
2700K/3000K/4000K/6500K
35W
3640 lm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • 350° Rotation
  • Adjustable: Horizontal and vertical rotationa
  • Body: Anodized Aluminium
  • Power Supply: 24V Constant Voltage

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Optic: Louvre,Colored Diffuser,Micro Prismatic Diffuser,Frosted Diffuser
  • IP20
  • 22°,33°,51° Angle

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-fit/feed/ 0 TPot Mini https://www.zlux.com/en/zlux-lighting/tpot-mini/ https://www.zlux.com/en/zlux-lighting/tpot-mini/#respond Wed, 20 May 2020 08:33:55 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1402

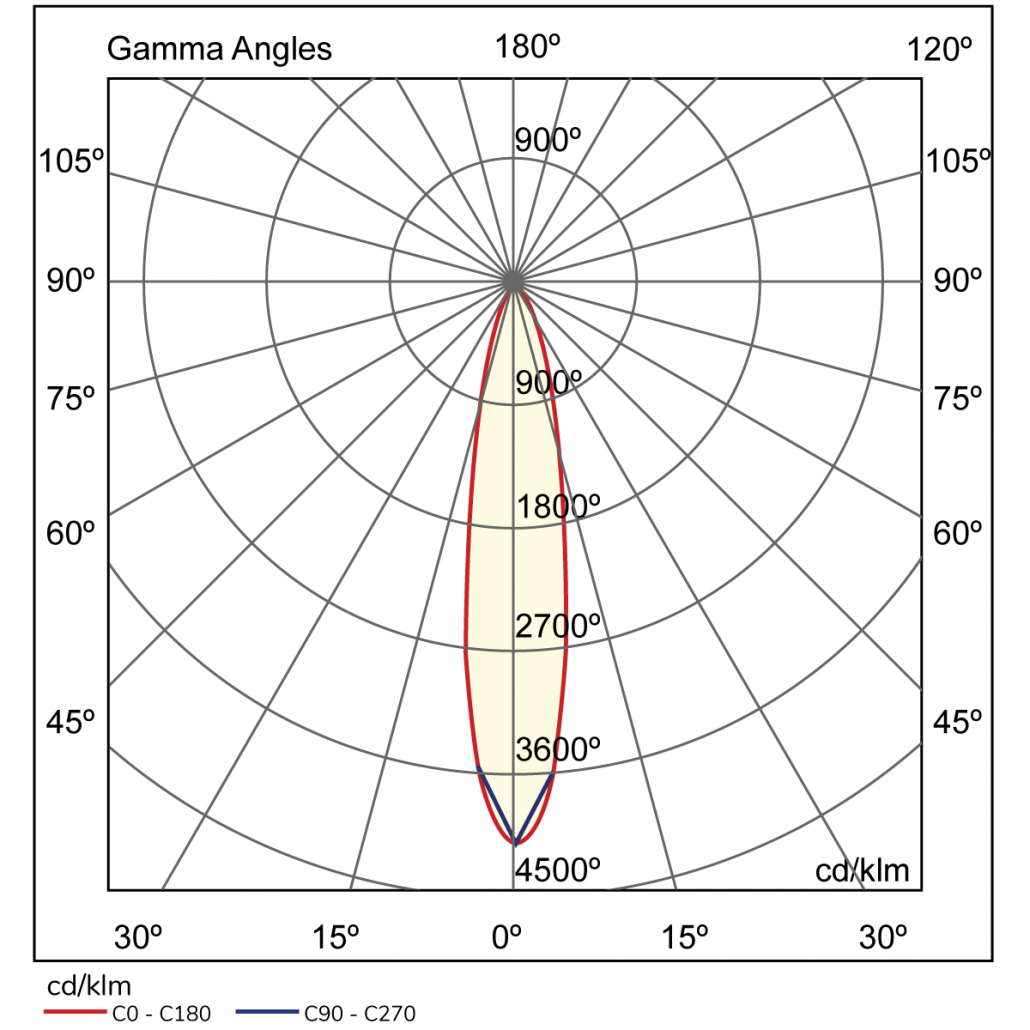

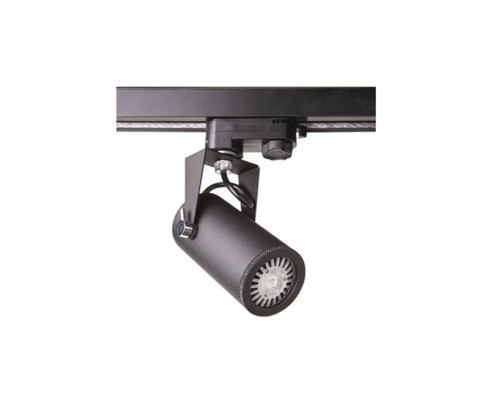

Tpot-Mini

Track Spots

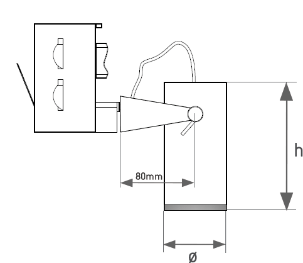

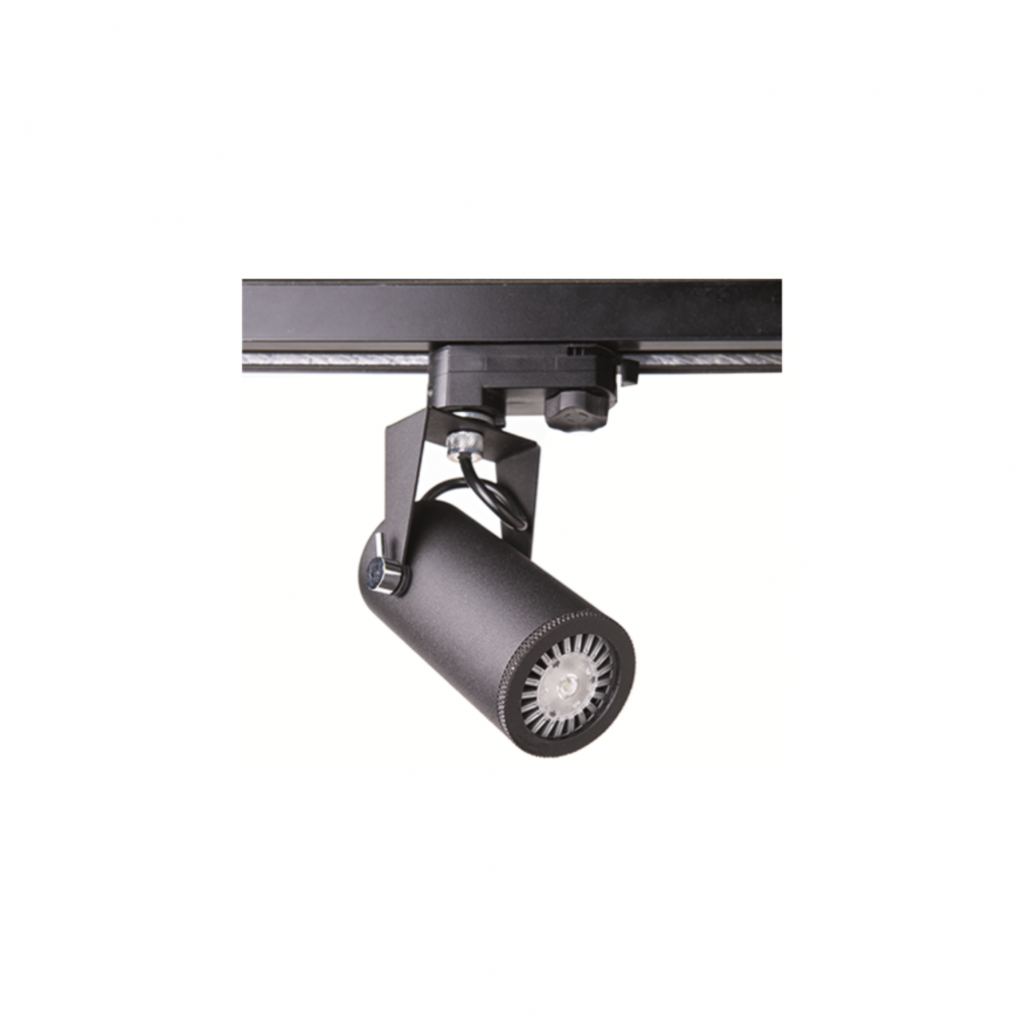

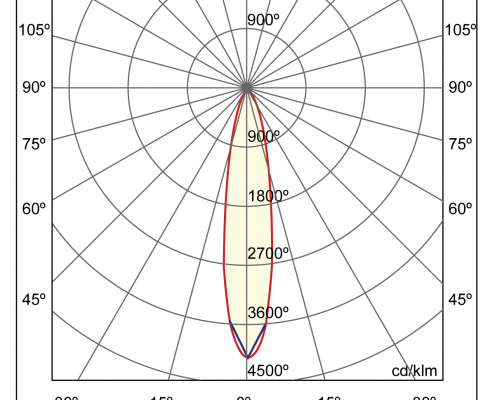

TPOT MINI


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
TPOT MINI
4W
280 lm
60x125 mm
GU10 LED
2700K/3000K/4000K/6500K
5W
350 lm
2700K/3000K/4000K/6500K
6W
420 lm
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • 350° Rotation
  • Adjustable: Horizontal and vertical rotationa
  • 1-Phase
  • Beam Angle: 24°

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Can be fixed on wall and ceiling
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-mini/feed/ 0 TPot Orcus L https://www.zlux.com/en/zlux-lighting/tpot-orcus-l/ https://www.zlux.com/en/zlux-lighting/tpot-orcus-l/#respond Wed, 20 May 2020 08:20:07 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1395
Tpot-Orcus-L

Track Spots

TPOT ORCUS L


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
TPOT ORCUS L
5W
310 lm
50x141 mm
COB
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • Body: Anodized Aluminium
  • Adjustable: Horizontal and vertical rotationa
  • 1-Phase
  • Beam Angle: 24°

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Can be fixed on wall and ceiling
  • Surface Mounting Case
  • Beam Angle: 60°
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-orcus-l/feed/ 0 TPot Orcus P https://www.zlux.com/en/zlux-lighting/tpot-orcus-p/ https://www.zlux.com/en/zlux-lighting/tpot-orcus-p/#respond Wed, 20 May 2020 08:09:41 +0000 http://www.zlux.com/en/?post_type=portfolio&p=1389
Tpot-Orcus-P

Track Spots

TPOT ORCUS P


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
(3000K)
Dimensions Øxh
Source
Color Temperature
TPOT ORCUS P
8W
700 lm
50x187 mm
COB
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • Aluminium body with electrostatic paint
  • Adjustable: Horizontal and vertical rotationa
  • 1-Phase
  • Beam Angle: 24°

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Can be fixed on wall and ceiling
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-orcus-p/feed/ 0 TPot Orcus https://www.zlux.com/en/zlux-lighting/tpot-orcus/ https://www.zlux.com/en/zlux-lighting/tpot-orcus/#respond Tue, 10 Mar 2020 11:32:27 +0000 http://www.zlux.com/en/?post_type=portfolio&p=597
TPOT ORCUS

Track Spots

TPOT ORCUS


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions (øxh)
Source
Color Temperature
TPOT ORCUS
5W
310 lm
ø50x187mm
COB
2700K/3000K/4000K/6500K

Specification


  • Surface Mounted
  • Aluminium body with electrostatic paint
  • Adjustable: Horizontal and vertical rotationa
  • 1-Phase
  • Beam Angle: 24°

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Can be fixed on wall and ceiling
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features


]]> https://www.zlux.com/en/zlux-lighting/tpot-orcus/feed/ 0 Tpot Fat https://www.zlux.com/en/zlux-lighting/tpot-fat/ https://www.zlux.com/en/zlux-lighting/tpot-fat/#respond Fri, 28 Feb 2020 11:19:48 +0000 http://www.zlux.com/en/?post_type=portfolio&p=321
TPOT FAT

Track Spots

TPOT FAT


Advances in technology mean that lumen outputs are continuosly increasing. The figures above are corrent at time print. Please reach our sales team for up to date information.


Model
Power
Lumen Output
Dimensions (axh)
Source
Color Temperature
TPOT FAT
12W
1200 lm
ø120x150 mm
COB
2700K/3000K/4000K/6000K
20W
2000 lm
2700K/3000K/4000K/6000K
28W
2800 lm
2700K/3000K/4000K/6000K
35W
3500 lm
2700K/3000K/4000K/6000K

Specification


  • Surface mounting
  • 350° Rotation
  • Power supply: 24V costant current
  • Body: Anodized aluminyum
  • Adjustable: Horizontal and vertical rotational

Options


  • Current, 1-10V Dimmable, DALI Dimmable
  • Optics: louvre, colored diffuser, micro prismatic diffuser, frosted diffuser
  • 22°, 33°, 51° Angle
  • IP20

Color


White Black Gray

Applications


Hotels, Shopping malls, Office, General commercial projects

Features
